Home > Products > Fabric laser cutting machine > Texitile/fabric laser cutting machine for sofa furniture JQ1630

Texitile/fabric laser cutting machine for sofa furniture JQ1630

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood	Cutting Thickness	0-20mm
Cutting Area	1600mm*3000mm	Cutting Speed	0-600mm/s
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	Powercut controller	Graphic Format Supported	AI, BMP, DXF, DXP, PLT
Brand Name	JQ Laser	Model Number	JQ1630
Certification	CE, ISO, SGS	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Export wooden case

Product Description

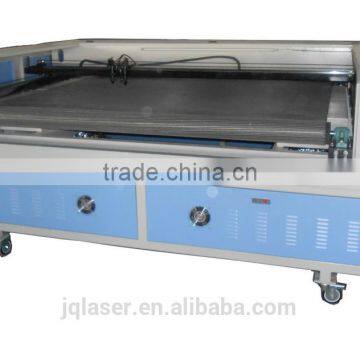

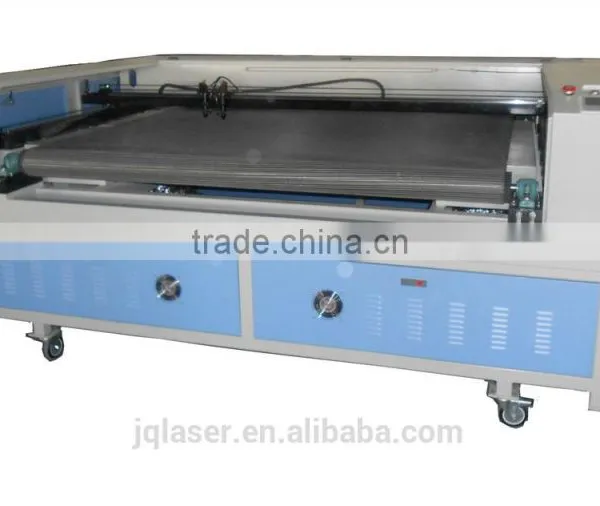

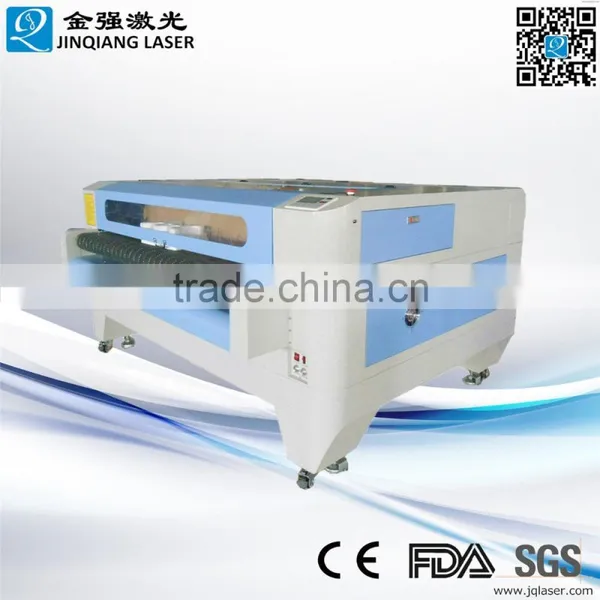

Texitile/fabric laser cutting machine for sofa furniture JQ1630

Product Description

Technical Parameters:

Machine type	Automatic CO2 fabric Laser Cutting Machine
Model	JQ1630/1830
Max Speed	0-50000MM/Min
Laser Type	10.6 μm
Laser power	80/100/150W
X Y axis resetting accuracy	≤±0.01mm
Worktable resetting accuracy	≤±0.01mm
Working area	1600mm 3000mm and 1800mm3000mm optional
Machine size	4.5M2.51.5m
Total power	2000w
Water Chiller	CW3000/5200 Optional
Power supply	220±10%/50HZ
Graphic Format Supported	BMP,AL,PLT,DXF,DST
Software supported	CorelDraw, Photoshop, AutoCAD and other cloth software.
Delivery time	10-15 working days

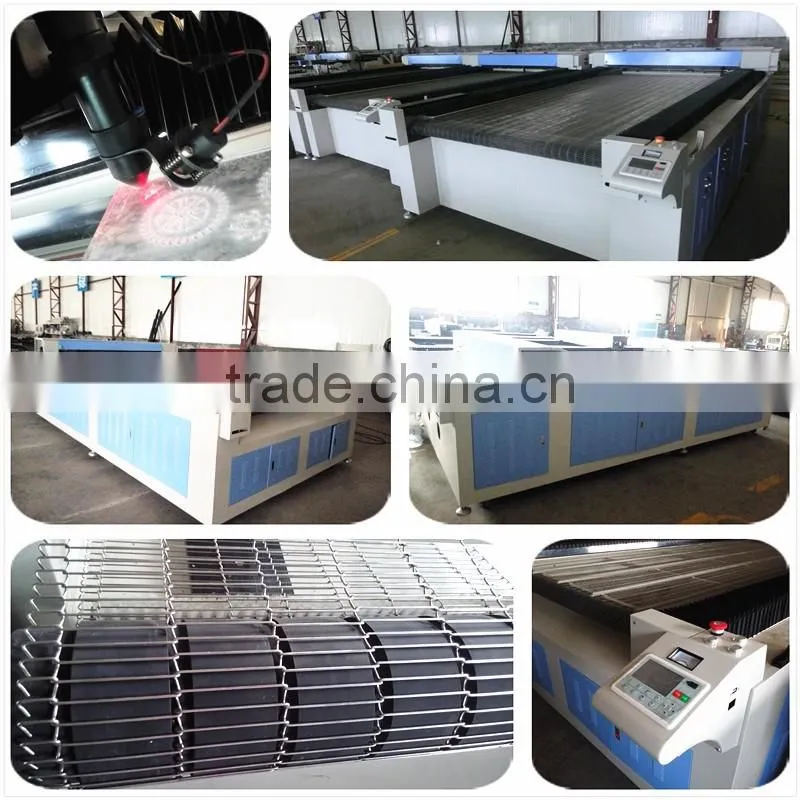

JQ1630/1830 automatic fabric cutting machine is producted in workshop

JQ1630/1830 automatic fabric laser cutting machine with standard configurations:

Machine Body *1 set
Laser tube (reci brand) *1 set
Auto-feeding stainless worktable * 1 set
Water chiler for cooling tube * 1set
Exhaust fan * 1 set
Red dot for locating the cutting position * 1set
Air compressor for flammable materials (wood, fabric, paper, plstic, eva etc.)* 1set
Control system(powercut,lasercut,RUIDA,Leetro optional) *1set
Roller Brackets ( simple, rubber and six roller bracket optional) *1 set

For roll materials, we will give our customer match the roller bracket, and now we have three types for your optional:

1. Simple Bracket can support within 20kgs weight

2. Rubber Bracket can support within 500kgs weight

3. Six Roller Bracket can support six Rollers at one time and within 300kgs

Performance Features:

1. Configure Reci laser tube (the best brand in China).
2. Auto-feeding system, only need one people operate

3. Adopt Taiwan Hiwin linear motion guide

4. Transmit files directly in CorelDraw, AutoCAD ,etc.
5. Owns functions of restoring from power off, continuation on break point

6. Easy operating control panel

7. Water chiller to protect the laser tube

8. Suitable for fabric, jeans, leather, clothes, garment, textile, etc

9. Powercut control card with rich functions both can engrave and cut on various materials

10. Servo Motors, fast speed ( can up to 700mm/s).

Applicable materials:

fabric, leather, paper, bamboo ware, acrylic, glass, thin film, wood, plastic, Eva and canvas etc.

Applicable industries:

Sofa, Garments, Trademark, Leather industry, Shoemaking, Decoration, Advertisement industry, Medical cloth, Automatic Trim, Weeding invitation card

Sample Show:

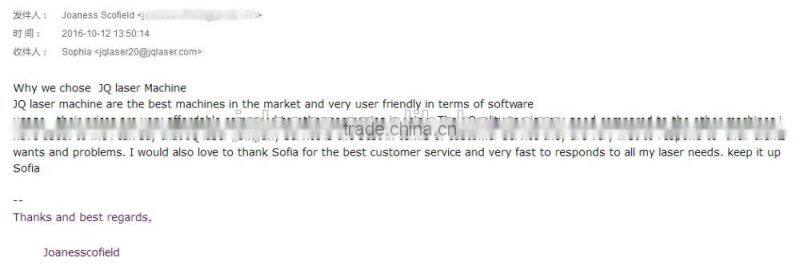

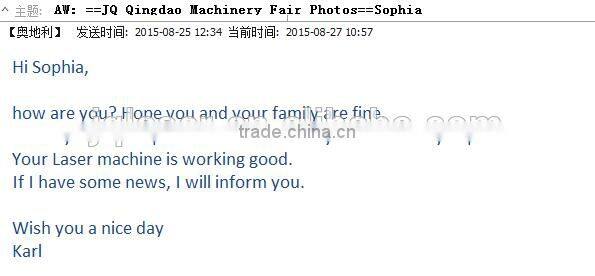

Buyer Feedback

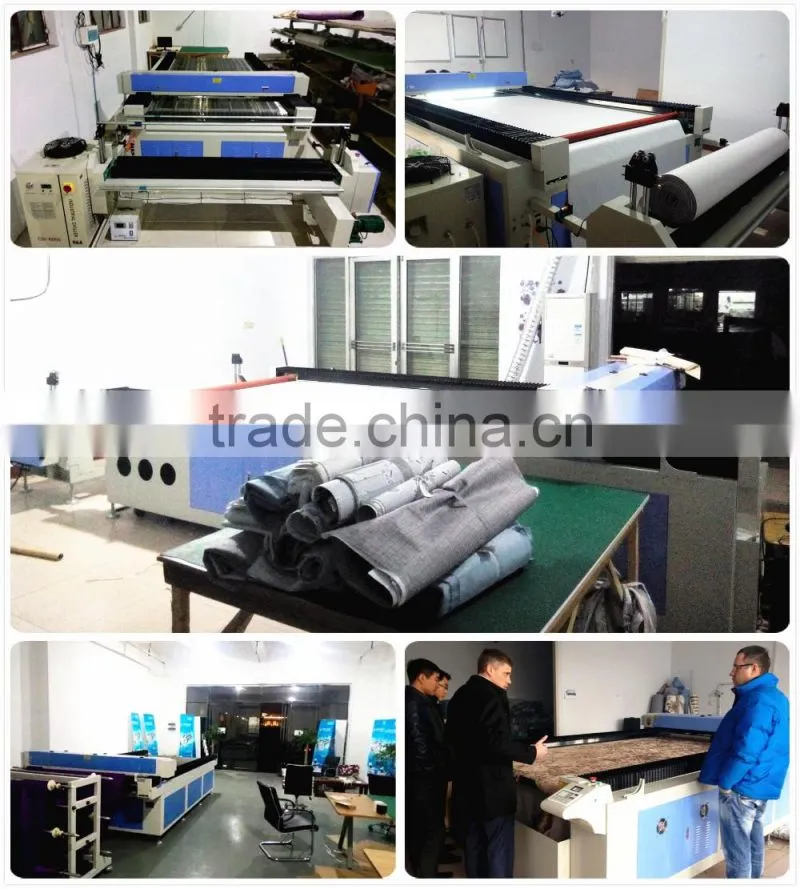

automatic fabric laser cutting machine in Customers' workshop

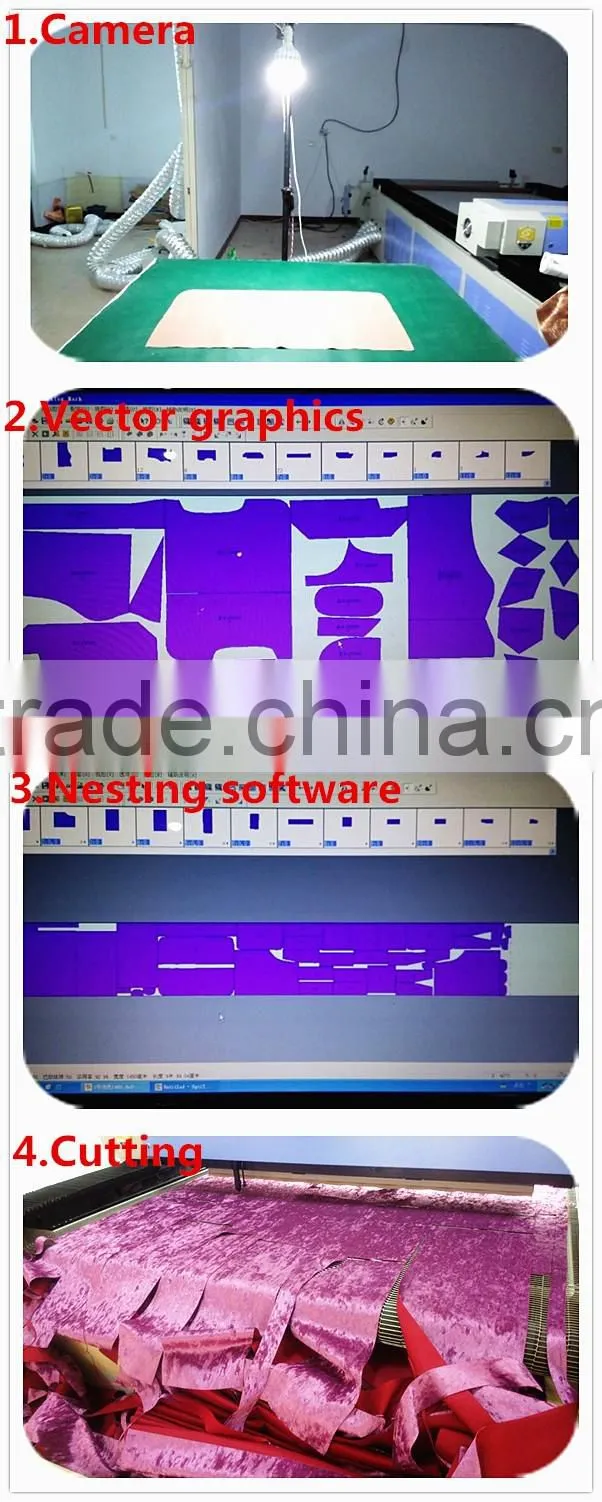

We also have one Camera scan system (optional)

1. USA Nshot Camera Scanner system with Camera Input System will automatically change the picture of camera to working vector picture.

2. Sample model can be made picture one time, save forever with 1:1 precision size

3. Automatic typesetting software can save the time and labour and also save every millimeter cloth for you.

4. Original Sample and cutting Sample 1:1

5. It main used for Sofa and Garment industries and some customers who want to save cost ( materials + labors + time )

Our Services

Company Profile

Jinan JinQiang Laser CNC Equipment Co., Ltd.

Jinan JinQiang Laser CNC Equipment Co.,Ltd is located in Jinan High & New Technology Industrial Development Zone. We are committed ourselves to developing, producing and selling laser equipment. Our company supplies JQ series of laser engraving and laser cutting equipment, laser engravers and laser cutters. They are used in many fields. With high quality products and top after-sales service, we have won trust and support of customers from all over the world. Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day. Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system. We welcome customers from all over the world to cooperate with us. Please feel free to contact us for further information. Selecting JQ laser the world will become yours !
