fabric/leather laser cutting machine JQ1630
Technical data
| Machine type | Automatic CO2 fabric Laser Cutting Machine |
| Model | JQ1630/1830 |
| Max Speed | 0-50000MM/Min |
| Laser Type | 10.6 μm |
| Laser power | 80/100/150W |
| X Y axis resetting accuracy | ≤±0.01mm |
| Worktable resetting accuracy | ≤±0.01mm |
| Working area | 1600mm *3000mm and 1800mm*3000mm optional |
| Machine size | 4.5M*2.5*1.5m |
| Total power | 2000w |
| Water Chiller | CW3000/5200 Optional |
| Power supply | 220±10%/50HZ |
| Graphic Format Supported | BMP,AL,PLT,DXF,DST |
| Software supported | CorelDraw, Photoshop, AutoCAD and other cloth software. |
| Delivery time | 10-15 working days |

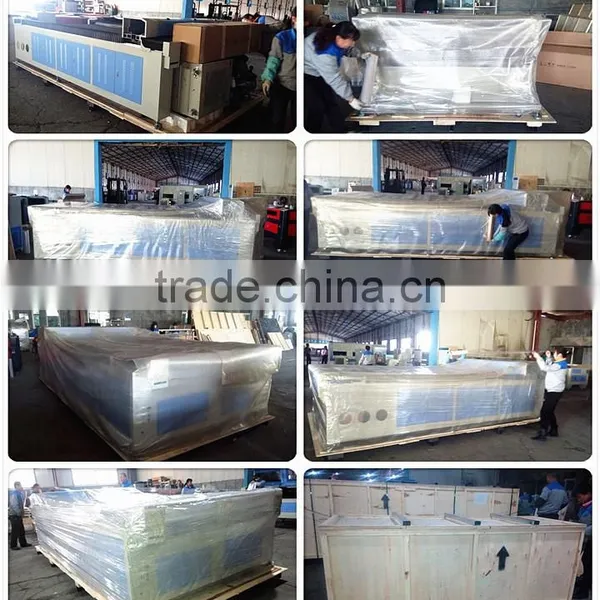

JQ1630/1830 automatic fabric cutting machine is producted in workshop
JQ1630/1830 automatic fabric laser cutting machine with standard configurations:
- Machine Body *1 set
- Laser tube (reci brand) *1 set
- Auto-feeding stainless worktable * 1 set
- Water chiler for cooling tube * 1set
- Exhaust fan * 1 set
- Red dot for locating the cutting position * 1set
- Air compressor for flammable materials (wood, fabric, paper, plstic, eva etc.)* 1set
- Control system(powercut,lasercut,RUIDA,Leetro optional) *1set
- Roller Brackets ( simple, rubber and six roller bracket optional) *1 set
For roll materials, we will give our customer match the roller bracket, and now we have three types for your optional:
1. Simple Bracket can support within 20kgs weight
2. Rubber Bracket can support within 500kgs weight
3. Six Roller Bracket can support six Rollers at one time and within 300kgs
Performance Features:
1. Configure Reci laser tube (the best brand in China).
2. Auto-feeding system, only need one people operate
3. Adopt Taiwan Hiwin linear motion guide
4. Transmit files directly in CorelDraw, AutoCAD ,etc.
5. Owns functions of restoring from power off, continuation on break point
6. Easy operating control panel
7. Water chiller to protect the laser tube
8. Suitable for fabric, jeans, leather, clothes, garment, textile, etc
9. Powercut control card with rich functions both can engrave and cut on various materials
10. Servo Motors, fast speed ( can up to 700mm/s).
Applicable materials:
fabric, leather, paper, bamboo ware, acrylic, glass, thin film, wood, plastic, Eva and canvas etc.
Applicable industries:
Sofa, Garments, Trademark, Leather industry, Shoemaking, Decoration, Advertisement industry, Medical cloth, Automatic Trim, Weeding invitation card
Sample Show:

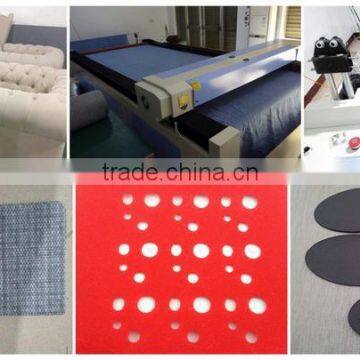

automatic fabric laser cutting machine in Customers' workshop
We also have one Camera scan system (optional)
1. USA Nshot Camera Scanner system with Camera Input System will automatically change the picture of camera to working vector picture.
2. Sample model can be made picture one time, save forever with 1:1 precision size
3. Automatic typesetting software can save the time and labour and also save every millimeter cloth for you.
4. Original Sample and cutting Sample 1:1
5. It main used for Sofa and Garment industries and some customers who want to save cost ( materials + labors + time )
1. Q:Are you a factory or trading company?
A: We are a factory
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinan City, Shandong Province, China, about 4 hours train from Shanghai .
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q:How can I get some samples?
A: We are honored to offer you samples.
4. Q:How does your factory do regarding quality control?
A:Quality is priority. JQ people always attach great importance to quality controlling
from the very beginning to the very end.
Our products have gained CE, FDA authentication.
