130 watt laser cutting machine
- 300 Set / Sets per Month
- qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Cutting Thickness | 30mm acrylic | |
| Cutting Area | 1300*900mm | Cutting Speed | 0-50000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | power cut | Graphic Format Supported | AI, BMP, DST, DXF, PLT | |
| Place of Origin | Shandong, China | Brand Name | Jinqiang | |
| Model Number | JQ1390 | Certification | CE, Other, CE, FDA | |
| After-sales Service Provided | Engineers available to service machinery overseas |
standard export plywood case
Product Description

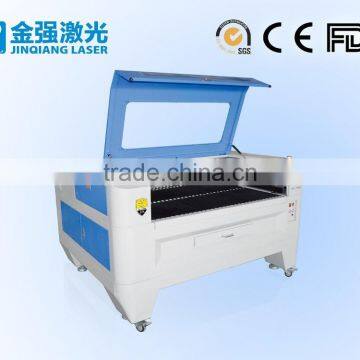

130 watt laser cutting machine
Two laser heads’ working at same time double enhances the working efficiency. adopted imported high precision spare parts, stable and reliable DSP control system, simple and convenient man-machine interface, stable motion drive system with superior performance, high precision moving rails, all these make machines the features of high efficiency, energy conservation, stability and convenience during working.
1. Parameter of JQ-1390 dual head laser cutting machine
Model | JQ-1390 |
Working area | 130cm*90cm / 51in*35in |
Laser power | 80W*2/100W*2/130W*2 |
Laser type | CO2 sealed laser tube,water-cooled |
Cutting speed | 0-50000mm/min |
Laser Output | 1-100%software setting |
Resetting positioning accuracy | ≤±0.01mm |
Power supply | 220V/50HZ , 110V/60HZ |
Operating temperature | 0 - 45°C |
Operating humidity | 5 - 95% |
Min. shaping character | English 1.0 x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | 3 phases stepper motor |
Equipment Dimension | 206cm*141cm*107cm 81in*56in*42in |
Packing Dimension | 216cm*151cm*120cm 85in*59in*47in |
Net Weight | 450kg |
2.Optional parts
1).Up and down work table( makes the machine worktable moves up and down automatically)
2).Rotary attachment.( engrave cylinders)
3).Red light pointer (make the laser beam visible)
4).USB port ( make the machine work without a computer)
3.Applicabe material
acrylic, plastic, wood, MDF, die board, perspex , organic glass, rubber, leather, fabric, paper, cloth, fabric, dual-color boards. etc
The warranty after-sale service
a) Guarantee for the whole machine: 2 years
b) Providing around-the-clock professional service to customers, any call for technical help will be handled in 24 hours
c) International after service department, and our engineers can speak English well, which make communication easy
d) Free training, free maintenance and free technical support within warranty period
e) We offer life-long free service in technical upgrading.

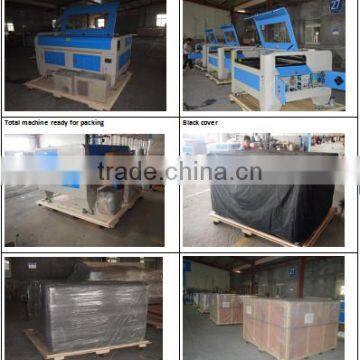

Machine testing in factory
My skype: jqlaser31
Whatsapp: 0086 15550002101
