plywood laser cutting machine JQ-1610
Features of JQ-1610cloth laser cutting machine
a. The machine adopt special design. Improved the working efficiency greatly.
b. Usually, the laser tube is installed above the machine body. This machine’s laser tube is installed in the machine body so it is more secure.
c. There are two control panels on the machine. The users could control the machine at both sides.
d. DSP control system and moderate using environment.
e. Some parts are imported and more durable like the mirrors and lens, rails, motors. etc.
f. Scientific ventilation equipments, high power exhaust fan and strong honeycomb worktable play a vacuum adsorption, which can make the soft material very flat.
Technical Performance Of JQ-1610
Machine Model | JQ-1610 |
Working Size | 160cm*100cm |
Laser Power | 80W/100W/150W |
Laser Type | CO2 sealed high quality, water-cooling |
Driving System | 3 phase Stepping motor |
Cutting Speed | 0-40000mm/min / 0-1575in/min |
Engraving Speed | 0-70000mm/min / 0-2756in/min |
Resetting Position Accuracy | ≤±0.01 |
Power Supply | 220V/50Hz, 110V/60Hz, |
Operating Temperature | 0-45°C |
Operating Humidity | 5-95% |
Min. Shaping Character | English 1.0*1.0mm |
Operating System | PCI OR USB (MPC 6535) |
Graphic Format Supported | BMP, PLT, AI, DST, DXF |
Software Supported | Coreldraw, Photoshop, AutoCAD, Tajima |
Machine Dimension | 350cm*230cm*150cm (L*W*H) 138in*90in*59in |
Packing Dimension | 370cm*250cm*170cm(L*W*H) 145in*98in*67in |
Net Weight | 1300 kg |
Applicable Material
Cutting material: Cloth,fabric,leather,woolen,paper,embroider,wood,acrylic,organic glass, rubber, plastic, compound material and other non-metal materials,etc
Engraving material: Cloth, fabric, leather, woolen, paper, embroider wood, acrylic, organic glass, rubber, plastic, compound material and other non-metal materials,etc
Warranty and after-sales service
1.Two years guarantee of the whole machine.
2.CE and FDA certificate,the machines are produced according to standard.
3.We have excellent engineers speaking English,they can go to your country to solve your questions of machine you can't solve.
4.24 hours internet service by sending emails and Videos,communicating online or calling.Door to door technical group service. English software, user manual and detailed Videos CD.

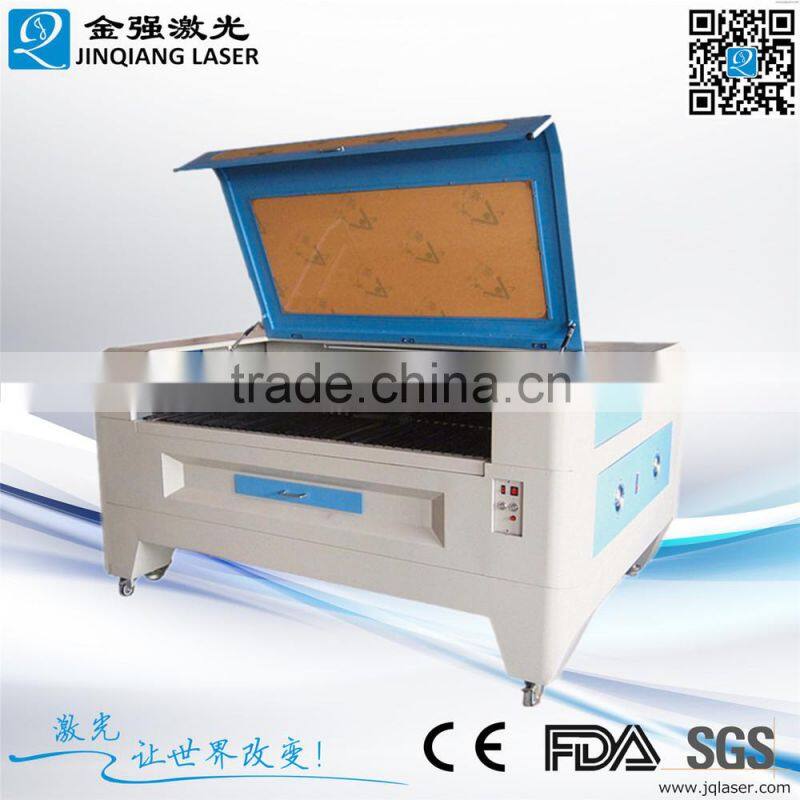

Machine Photo:
Plywood/Acrylic product samples:

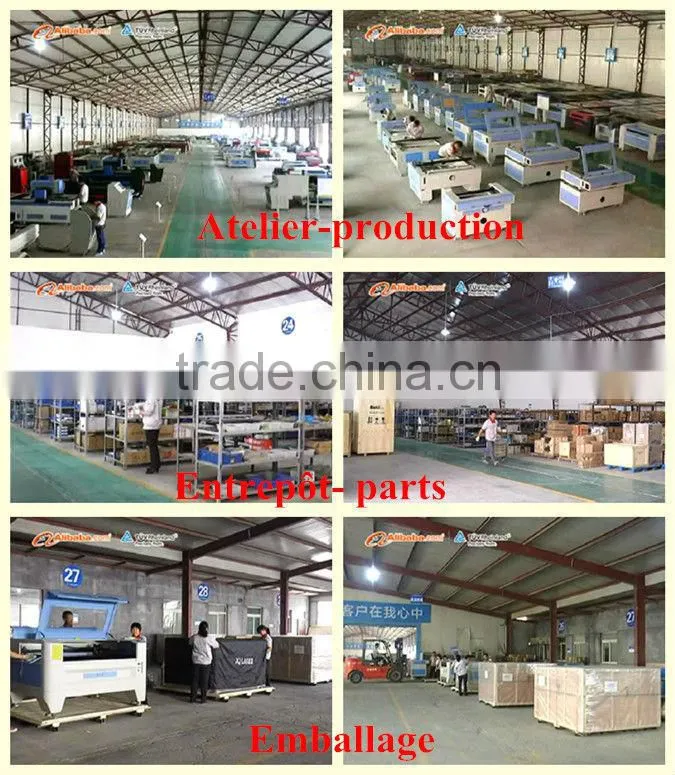

Company information
