co2 reci 80w laser machine 6090
Features of JQ9060 co2 laser cutting machine:
1. Configure higher power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.
Technical Parameter
Item / Model | JQ9060 co2 laser engraving machine |
Cutting area | 900 x 600mm |
Laser power | 80W |
Laser type | CO2 sealed laser tube,water-cooled,10.6um |
Engraving speed | 0-60000mm/min |
Laser Output | 1-100%software setting |
Resetting positioning accuracy | ≤±0.01mm |
Power supply | 220V/50HZ , 110V/60HZ |
Operating temperature | 0 - 45°C |
Operating humidity | 5 - 95% |
Min. shaping character | English 1.0 x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | TAJIMA, CorelDraw, Photoshop, AutoCAD |
Driving system | 2 phases stepper motor |
Cooling mode | Water-cooling and protection system |
Equipment Dimensions | 1450x1100x1070mm |
Net Weight: | 230kg |
Shipping Dimensions | 1500 x 1110 x 1300mm |
Optional Spare Parts | Up-down clump, Rotary System, Honeycomb table |
Recommended Spare Parts | Laser Tube and Lens |
Application Field
Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

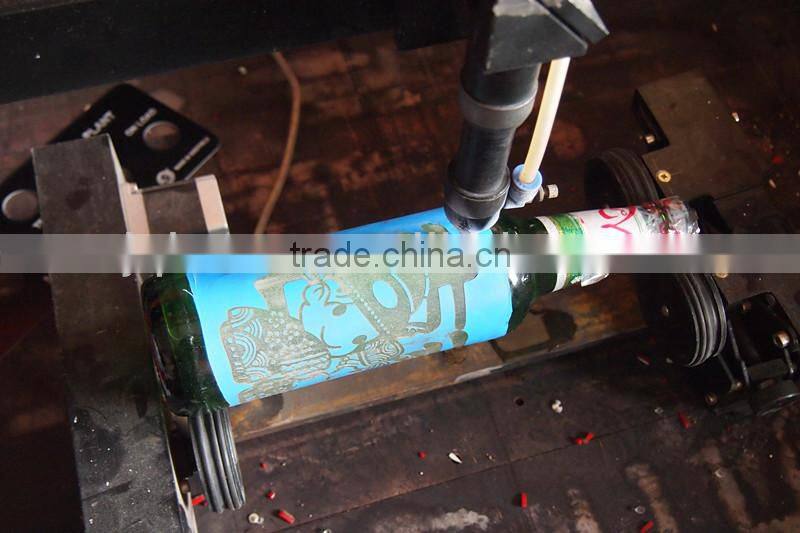

Rotary with up&down worktable features
Equipped with precise rotary device and auto lifting platform, JQ machine is suitable for engraving and cutting, both regular and irregular round or planner objects, such as cup, box, cylinder with different thickness.
All these products are designed and developed by ourselves. We assure that we can provide goods with competitive price, high quality and best service. Looking forward to building a good relation in the future.
Machine on expo
All these products are designed and developed by ourselves. We assure that we can provide goods with competitive price, high quality and best service. Looking forward to building a good relation in the future.
skype: jqlaser31
Phone:+86-1555 000 2101
FAQ
1.Q: Are you a factory or trading company?
A:We are a manufacturer with export license.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinan City, Shandong Province, China, about 1 hours from Beijing, 2 hours from Shanghai and 2.5 hours from Guangzhou .All our clients, from home or abroad, are warmly welcome to visit us!
3.Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4.Q:How can I get some samples?
A:1,We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
2,Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon Fedex, UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collection account. Then you can pay the freight direct to your local carrier company.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority? JQ people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
If you are interest in our products or our services, please contact us, you will get the best reliable products in reasonable prices.
JQ Company
About us - Jinan JinQiang Laser CNC Equipment CO., LTD
*Workshop & Showroom
Workshop is the product of intense laser manufacturing center gold, bear manufacturing various types of laser equipment. Factory workshop area of 5075 square meters, the plant’s existing staff of 46 people, including management staff4, the worshop has three steps, the 10 team composition, with annual production of non-metallic series 4030, 6040, 9060, 1290, 1390, 1490,; cutting 1325, 1525, 1530, 1610, 1630; metal series 1325-YAG, 1325-fiber, 1530-fiber and other conventional and non-standard laser annual output of 3,000 sets of CNC equipment manufacturing capacity.
