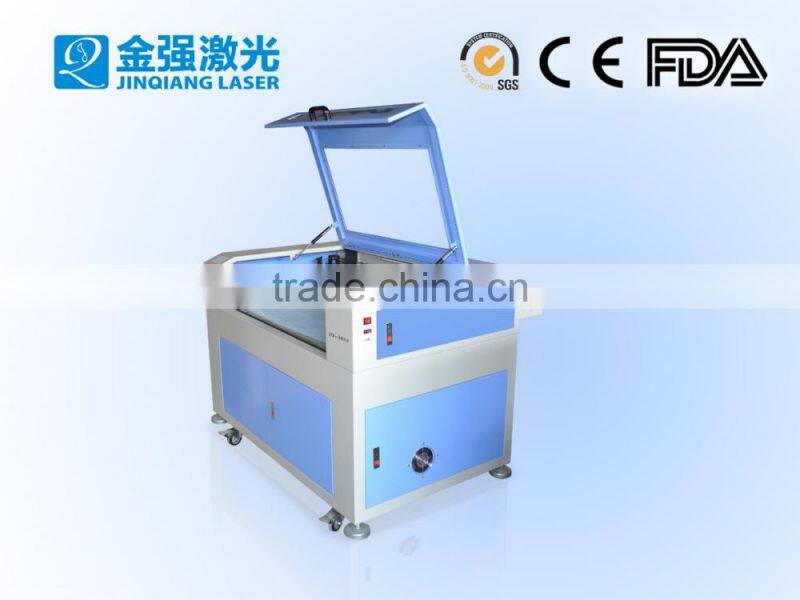

Glass Bottle Laser Ethcing Machine
- Qingdao
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Crytal, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Cutting Thickness | 20mm | |
| Cutting Area | 900mm*600mm | Cutting Speed | 40000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | Ruida/Powercut | Graphic Format Supported | AI, BMP, DXF, DXP, PLT | |
| Place of Origin | Shandong, China | Brand Name | JQ | |
| Model Number | 9060 | Certification | CE, Other, CE, FDA | |
| After-sales Service Provided | Overseas service center available |
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags.At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom
Product Description
glass bottle laser ethcing machine
Welcome to visit our company------JQ LASER!!!
Machine Parameters
Laser power : | 60W/80W/100w |
Laser tube life Span | 10000 hours |
Applicable Materials | Acrylic,Glass,crystal,wood,leather,cloth,rubber,marble,ceramic,etc. |
Working area: | 900*600 mm |
Max moving speed: | 1500mm/s |
Laser energy control: | 1-100set by hand or software |
Worktable: | Fixed honeycomb table or knife table |
Locating precision: | 0.01 mm |
Min shaping character: | 0.01mm |
Operating temperature: | 5°C-35°C |
Resolution | 4500 dpi |
Laser type: | Hermetic CO2 glass tube |
Power supply: | AC220±1050 HZ/AC110±1050 HZ |
Control configuration: | DSP. |
Data transfer interface: | USB (offline). |
USB Ports | 2 |
System environment: | WINDOWS 2000/WINDOWS XP/MAC/Vista/W7 |
Cooling way: | Water cooling and protection system |
Graphic format supported: | The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG, DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX). |
USER MENU | Full English. |
Package Inclusion | Software,VIDEO USER MENU CD,Air pump gun,Power cables, USB cables, Water tank,Water Pipe,Smoke Vent-pipe,Air Blow Pipe ,exhaust fan,Tools bag |
Memory | 256 MB |
Display screen | LCD(SIZE 70*40 mm) |
Protection System | Yes |
Option parts | high-grade cooling system/double-head/cylinder rotary Jig/ irregular rotary Jig/ up&down table/ knifes table |
Guarantee | 2 years |
Dimensions | 1.35*0.99*0.97m |
Dimensions(package) | 1.46*1.3*1.23m |
Net Weight | 250KGs |
Gross Weight | 300KGs |
Recommended Ship way | Sea /air/road |
Performance Features
1. Configure higher power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.
Applicable materials
leather, cloth, wool, fur, acrylic, plexiglass, wooden board, plastic, resin and other non-materials.
Applicable industry
processing industries of lager scale engraving and cutting, such as garment, leather, clipping, cutting of template, package and printing, advertisement decoration, building upholster, art gift, computer embroidery, paper product, acrylic product, middle density board ect . non-metal sheet precision cutting and other industries.
Machine Parts
Sample Show
* 2 year guarantee for whole machine; 8 months for laser tube and mirrors
* 24 hours technical calling or e-mail service for any technical questions of our machine
* We offer detailed User Manual for machine installation, operation, and also for Software
* Peferct after - sale service, our engineer will provide one sit installation, training of the machine, how to use the software, machinemaintence, ensure that the customers can use the machine properly.
Workshop & Showroom
Workshop is the product of intense laser manufacturing center gold, bear manufacturing various types of laser equipment. Factory workshop area of 5075 square meters, the plant’s existing staff of 46 people, including management staff4, the worshop has three steps, the 10 team composition, with annual production of non-metallic series 4030, 6040, 9060, 1290, 1390, 1490,; cutting 1325, 1525, 1530, 1610, 1630; metal series 1325-YAG, 1325-fiber, 1530-fiber and other conventional and non-standard laser annual output of 3,000 sets of CNC equipment manufacturing capacity.
1. Q:Are you a factory or trading company?
A: We are a factory
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinan City, Shandong Province, China, about 4 hours train from Shanghai .
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q:How can I get some samples?
A: We are honored to offer you samples.
4. Q:How does your factory do regarding quality control?
A:Quality is priority. JQ people always attach great importance to quality controlling
from the very beginning to the very end. Our products has gained CE, FDA authentication.
Company Profile
Jinan JinQiang Laser CNC Equipment Co.,Ltd is located in Jinan High & New Technology Industrial Development Zone. We are committed ourselves to developing, producing and selling laser equipment. Our company supplies JQ series of laser engraving and laser cutting equipment, laser engravers and laser cutters. They are used in many fields. With high quality products and top after-sales service, we have won trust and support of customers from all over the world. Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day. Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system. We welcome customers from all over the world to cooperate with us. Please feel free to contact us for further information. Selecting JQ laser the world will become yours !
