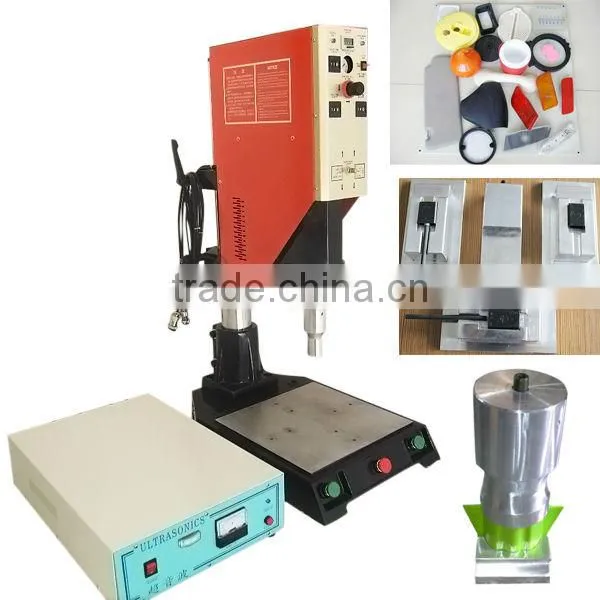

Hot sales manual ultrasonic plastic welding machine
Advantages and benefits of the plastic welding process:
Using ultrasonic plastic welding, no adhesives, screws, connective bolts or soldering materials are necessary. The possibilities for ultrasonic applications are broad.
The feature of stationery ultrasonic welding machine
1,Four balance adopted
2,The machine head up and down automatically
3,Sheet metal nonrectangular columns,Coattails groove design,welding more precision.
4,Tow hands pneumatic,Have emergency braking in front,also can be added the external swith.
5,It can weld thermo plastic excluding Teflon
6,It has transient welding time with common range from 0.05 to 1 second
7,It can weld surface via media such as water and oil.
8,It has a practical welding effect
9,It can be used in either direct or conductive weld
10,The weld energy varies with plastic materials ,The weld method is not to make whole material of welder part vibrate through ultrasonic,but only to make appropriate vibration surface vibrate and generate heat,there for ,there is no worry about any scar left on product surface,which is the charecteristic of conductive weld,while welding relatively hard plastic part,the weld effect is much better.
11,Ultrasonic weld will not give rise to any toxic substance as chemical,it is a kind of safe weld method.
Applied Range of ultrasonic plastic welding machine manufacturers :
Widely used in aviation, car parts, electrical equipment, packing, toy, medical device, fishing gear, weave etc. industry.Apply for ABS, PE, PS,PA, PVC, PP & PC complex, Acrylic etc. materials.
Features of ultrasonic plastic welding machine manufacturers:
(1). Suitable for welding pp, ps, pe, pc, abs, pbt, etc.;
(2). No need any adhesives or flux, and less heat consumption;
(2). Easy operation, high efficiency, excellent outward appearance, and high strength;
(3). Imported piezoelectric ceramic chips;
(4). Automatic and manual operating mode, convenient for adjusting;
(5). 1-year warranty.
Parameters of ultrasonic plastic welding machine :
Specifications |
JD-1520Z |
JD-2020Z |
JD-2215Z |
JD-2615Z |
output power (W) |
1500 |
2000 |
2200 |
2600 |
frequency |
20KHz |
15KHz |
||
input voltage |
AC220V |
|||
welding head stroke |
80mm |
|||
oscillating system |
Self-excited oscillation circuit |
|||
output time |
0.01-9.99S |
|||
current directions |
output amplitude of the table instructions |
|||
pressure |
pressure range of 1-7bar |
|||
power output range |
1-6 stall continuously adjustable |
|||
vibration head cooling system |
air-cooled |
|||
welding area (mm) |
150 |
190 |
210 |
220 |
Dimension |
600 × 680 × 1780 |
|||
net |
145kg |
150kg |
156kg |
168kg |
Ultrasonic generator:
Ultrasonic transducer:
Ultrasonic hron:
