welding machine for plastic ultra sound

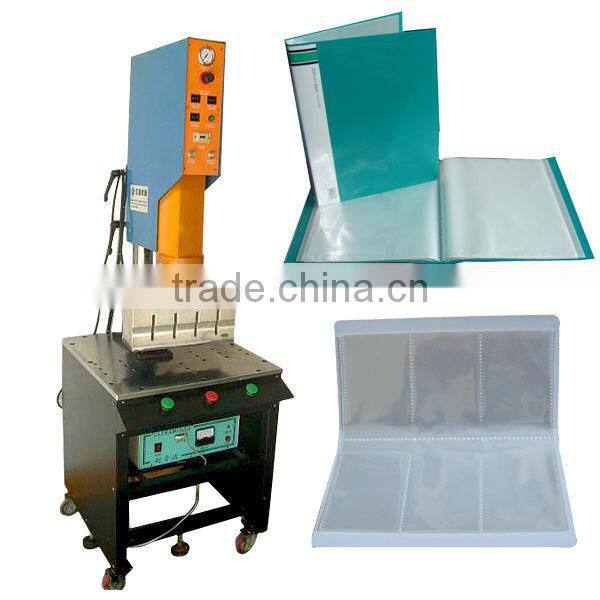

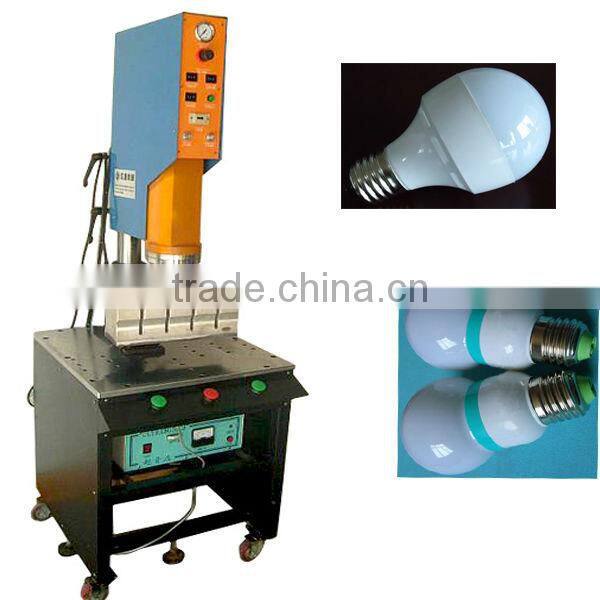

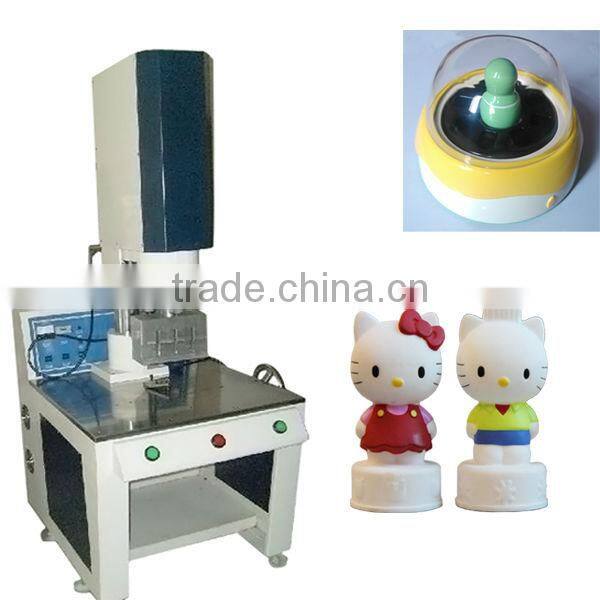

1. Applications of welding machine for plastic ultra sound:
It is used for welding and forming of Archive, Photo Album, toys, electronics, plastic bags, etc. And it also can be used on Plastic Bag Making Machine.
2. Features:
1) Using ultrasonic welding, spot welding, etc. Bags that were welded by this machine look beautiful.
2) Strong and stable output power: piezoelectric ceramics are imported from Japan.
3) Automatic compensation for feedback control circuit can extend its life.
4) Foot switch can be used without preheating, convenient to produce quickly.
5) Time control using three-digit dial code switch, adjustable 1 / 100 seconds precision, easy to
adjust.
6) Be compatible with automated machine or a bag machine and increase productivity.
7) It can be customized according to customers' needs.
3. Parameters:
Specifications |
JD-2615C |
JD-3215C |
JD-4215C |
output power |
2600W |
3200W |
4200W |
frequency |
15KHz |
15KHz |
15KHz |
input voltage |
AC220V |
||
welding head stroke |
75mm |
||
vibration head cooling system |
air-cooled |
||
oscillating system |
Self-excited oscillation circuit |
||
output time |
0.01-9.99S |
||
pressure |
1-7bar |
||
power output range |
1-6 stall continuously adjustable |
||
4. Welding principle:
The transducer will transfer high-frequency electrical energy which is produced by Ultrasonic
Generator into high-frequency mechanical vibration which will work on plastic products by
Booster. Tens of thousands of times for frication each second between one plastic product and
the other will be produced by high-frequency mechanical vibration. And then contact area
between plastic products will be fused promptly.
More Information,Please Don't Hesitate To Contact with us . Company Name: Dongguan Jieda Ultrasonic Equipment Technology Co., Ltd.
Attn: John Yu
Mobile: +86-13829249721
Tel: + 86-769-87939213 & 82016938
Fax: + 86-769-87865240
Skype: jiedacsb
