Ultrasound Plastic Welding Machine

Ultrasound Plastic Welding Machine photo-1
US$ 1,560 - 4,800 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JIEDA
Model Number:
JD-1020
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name JIEDA
Model Number JD-1020
Voltage 220V
Power 1000W
Frequency 20KHz
Welding Area 90MM
Dimensions 400*660*900mm
Weight 110kg
Usage Plastic Welding
ultrasound plastic welding machine


1. Applications of ultrasound plastic welding machine:



It is used for welding and forming of large Toys, Stationery, Non-woven Fabrics, Photo Album, etc.





2. Features of ultrasound plastic welding machine:



a. The large base with attractive appearance is stable and durable. Thick pillar is equipped on

this machine to avoid movement backward of the transducer system.

b. Precise screws are used to control movement of the Transducer System up and down. So it is stable and saves effort.

c. Overcurrent protective device is installed to reduce fault and ensure the machine work

normally.

d. High quality, efficiency and output power. Spare parts are made in Japan, West Germany,

Taiwan, etc.

e. Horizontal position of the transducer system is adjusted by four Fine Adjustment Screws. So

the horn can be adjusted precisely and conveniently. And then it can weld products evenly.

Product pass rate will be improved.

f. Warranty for the whole machine is one year.




3. Parameters of ultrasound plastic welding machine:

Specifications
JD-1020
output power
1000W
frequency
20K Hz
input voltage
AC220V
welding head stroke
75mm
vibration head cooling system
air-cooled
oscillating system
Self-excited oscillation circuit
output time
                 0.01-9.99S
pressure
1-7bar
power output range
1-6 stall continuously adjustable
welding area (mm)
90
Dimension
                400 × 660 × 900
Net Weight
                     110kg





ultrasound plastic welding machine

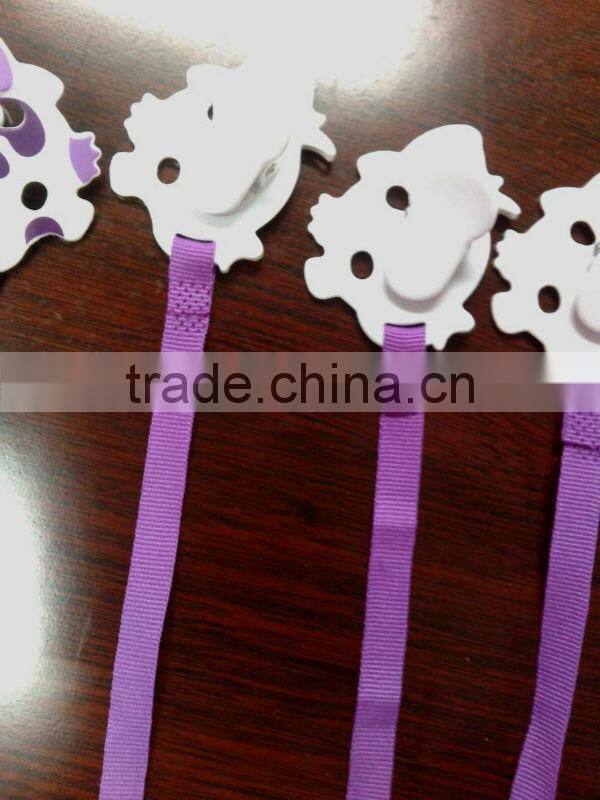

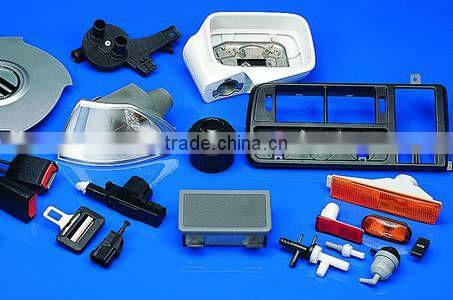

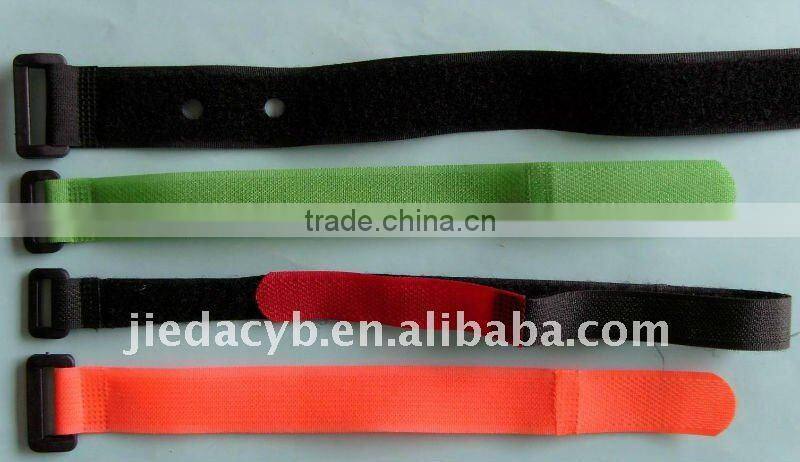

 For plstic welding:

ultrasound plastic welding machineultrasound plastic welding machineultrasound plastic welding machine
