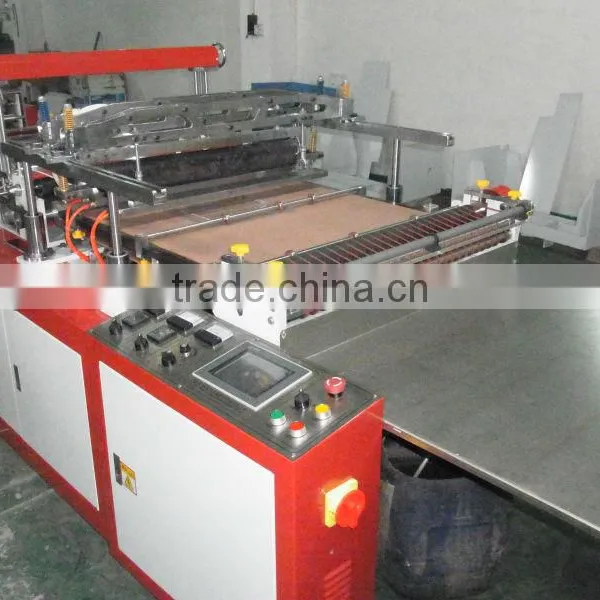

Zipper Bag with Attachment Machine
Performance and Characteristics
1.This machine uses fully automatic servo motor with computer digital
function to control length, it is easy for operation.
The produced one is very tight and fast at the seals,it apparently shows
a good quality.
2.Flow process of production is from rolled material through automatic
edge alignment,edge trimming, strip piercing,laminating,ultrasonic
compressive embossing,photo cell sensing,hole punching,thermo cutting off
and ends with automatic counting,all of the operations are fully automatic.
3.This machine equips automatic stop equipment,it will work to stop the
machine when it is running out of material supply or when photo cell is
out of order or when temperature is losing down and below the minimum
required.
Mode |
JD-600 |
JD-800 |
Speed |
20-80cyle/min |
20-80 cyle /min |
Max cutting width |
50-600mm |
50-800mm |
Mac cutting length |
40-500mm |
40-600mm |
Thickness of the film |
0.04-0.15mm |
0.04-0.15mm |
Servor motor |
1KW |
1KW |
Main motor |
1.5 kw |
2.5 kw |
Heater |
3 kw |
2.5 kw |
Food-out motor |
0.25 kw |
0.37 kw |
Ultrasonic |
1set |
1set |
Conveying electrical |
0.55 kw |
0.75kw |
Cooling |
0.37kw |
0.37kw |
Total Power |
15kw |
17kw |
Voltage |
380V/220V |
380V/220V |
Machine size |
8500*1800*1800mm |
8650*1900*1800mm |
