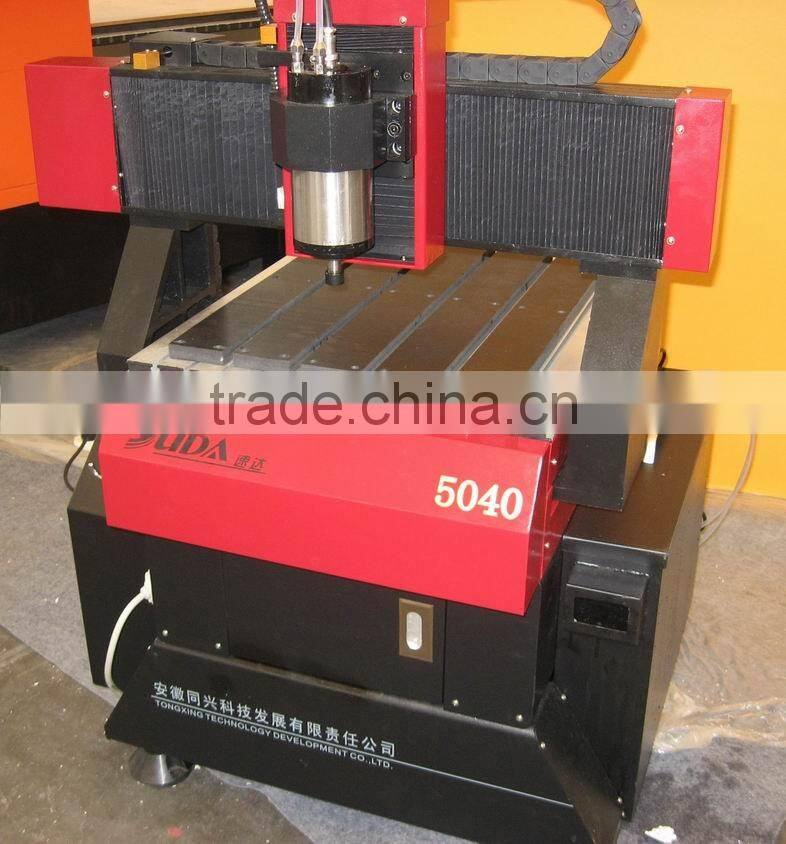

CNC ROUTER WITH WATER COOLING SYSTEM---SD5040

Name: CNC ROUTER WITH WATER COOLING SYSTEM---SD5040
Brand: SUDA
Availability: InStock

FOB Price

US$ 2,500 - 3,000 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	SUDA
Model Number	SD5040

Packaging Details

plywood case good for shipping by sea

Product Description

Specifications

cnc engraving machine
Competitive priceand high quality
two nut rolling ball screw
32 sub divided driving boards

Model	SD5040 CNC Router
XY Guide	Rolling ball screw from Germany
Table size (cm)	*5040**
Z Guide	Rolling ball screw from Germany
XYZ movement (mm)	500 x 400 x 80
Spindle power	1500W
Spindle speed (min/max)	6000 - 24000 U/Min.
Machine dimension (cm)	*565459*
Packing dimension (cm)	*10396138*
Machine sturcture	All steel machine frame,special design
Weight (kg)	320KGS
Power consumption without spindle	More than 1000W
Speed max.	0-100mm/s
Working speed max.	100mm/s
Stepper or servo motor?	Stepping motor
XYZ accuracy	0,04mm
Reposition accuracy	0,01mm
XY resolution	0,025mm
Z resolution	0,025mm
Table surface	PVC Table and Aluninum
XY drive configuration	roll screws
Z drive configuration	roll screws
Included Software	Type3 V4.3 english shipping with the machine
Software Compatible with	Win98/Win2000/XP
Spindle cooling system	water cooled
Spindle collet	ER11
Software transmission language	G-Code, HPGL
Control System	2G memory controllling system which with 128M control handle ,can transmitting the file from USB
Interface	Transimt the file from USB flask disk directly
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	7 working days when we received all the payment by T/T

Company Profile

Tongxing Technology Development Co., Ltd.

Tongxing Technology Development Co., Ltd. is located in one of the Chinese Science & Technology Cities, Hefei City. Since foundation in 1992, we have been researching and developing digital products in advertising and mould processing, and have been a very manufacturer in advertising equipment. Our main products range is as follows: Suda vanguard series CNC engraver, Suda powerful CNC engraver, Suda luck series CNC engraver, Suda laser engraver, Suda cutting plotter, Suda afflatus cylinder CNC engraver, Suda plasma cutting machine. We have superior staff adhering to the motto of Sincere Operation. The style of designing delicate products has been accepted by customers both at home and abroad. Our products have been exported to many countries and regions such as South-east Area, the Middle East, Europe and America. Tongxing is willing to cooperating with you based on mutual benefits based on brilliant future.
