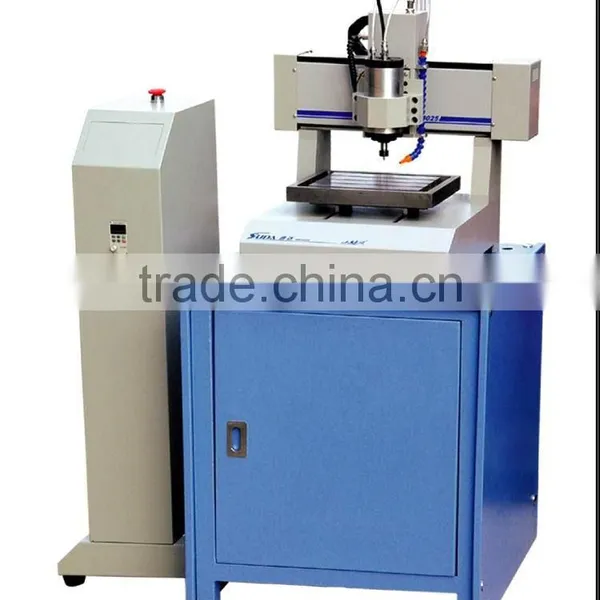

Sell SUDA MINI Cnc Router -----SD3025MV

Model

SD3025MV

XY Guide

Rolling ball screw from Germany and linear rail

Table size (cm)

30*25

Z Guide

Rolling ball screw from Germany and linear rail

XYZ movement (mm)

300 x 250 x 40

Spindle power

1500W

Spindle speed (min/max)

6000 - 24000 U/Min.

Machine dimension (cm)

56*54*59

Packing dimension (cm)

Machine body-640*620*670;controller 460*410*1120;machine cabinet770*770*820

Weight (kg)

185KGS

Power consumption without spindle

More than 1000W

Speed max.

0-100mm/s

Working speed max.

100mm/s

Stepper or servo motor?

Stepping motor

XYZ accuracy

 0,04mm

Reposition accuracy

 0,01mm

XY resolution

 0,025mm

Z resolution

 0,025mm

Table surface

Cast iron table which with water cooling system

Inveter

Danfoss holip frequency converter from Denmark

XY drive configuration

  roll screws

Z drive configuration

roll screws

Included Software

 Type3 V4.3 english

Software Compatible with

 Win98/Win2000/XP

Spindle cooling system

 water cooled

Spindle collet

ER11

Tools

10pcs for engraving and cutting &milling

Control system

Advanced CNC Controlling system by computer

Software transmission language

 G-Code, HPGL

Interface

Transmit the file from network cable

Voltage

220VAC/50-60Hz

Running environment

 0-35°C, humidity: 10-70%

Production time

One week when we received all the payment by T/T

Colour

Can optional
