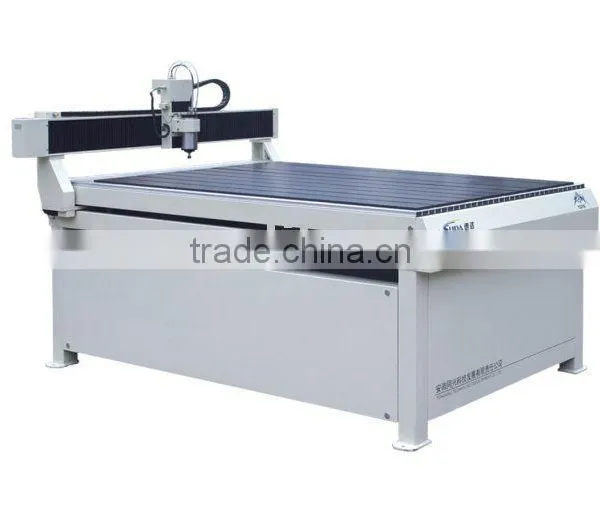

Help CenterHEFEI SUDA METAL CNC Router,CNC CUTTER--SD1325
Related Products
-
SUDA VG1313 CNC ENGRAVING MACHINERY--Four Spindle MotorUS$ 6,000 - 20,000MOQ: 1 Set -
HEFEI SUDA VG1313 CNC ENGRAVING MACHINERY--Four Spindle MotorUS$ 6,000 - 20,000MOQ: 1 Set
-
HEFEI SUDA CNC WOOD ENGRAVING MACHINERY--VG1313 Four Spindle MotorUS$ 6,000 - 20,000MOQ: 1 Set
-
HEFEI Sell SUDA VG1325 CNC ENGRAVER MACHINES CNC ROUTERNegotiableMOQ: 1 Set
-
SELL SUDA LK 1212 --NEW MODLE Cnc Advertising MachineNegotiableMOQ: 1 Set
Specifications
DSP controlling system with much function.Configured with 1.5KW spindle motor.
Germany rolling ball screw.
Distinguish Features
· Stiff: integral cast-iron frame ,embedded linear ,much more stable and solid
· Accuracy :rolling ball screw from Germany ,two nut eliminating clearance ,advanced fixing mode of three bearings
· Strong :configured 2.2kw inverter-driven spindle motor cooled by water
· Superior :adopt the most advanced DSP controlling system
Application
· Strong functions ,easy operation ,sturdy ,durable ,reliable performance ,reasonable price ,wide application ;can be applied to process any wood products ,sign boards ,bill plates ,chest brands ,seals ,metal foil molds ,construction moulds ,instruments panel, woody products ,industrial moulds .Any metal or non-metal material can be processed ,for example ,iron ,copper ,aluminum ,plastic and wood plates etc .
Servo system (optional)
Dust collecting System (optional )
Vacuum System (optional )
Note:Any changes of technical parameters without notice
Performance Features :
Model |
SD8070 |
SD1212 |
SD1218 |
SD1325 |
SD1630 |
SD2030 |
|
| |||||||
Working Area |
700x800x90mm |
1200x1200x90mm |
1200x1800x90mm |
1250x2500x90mm |
1550x3000x90mm |
2000x3000x90mm |
|
| |||||||
Spindle Motor |
2.2KW inverter-driven motor cooled by water |
3KW |
|
||||
| |||||||
Engraving Speed |
6000-12000mm/min |
|
|||||
| |||||||
Rotation Speed of Spindle |
6000-24000rpm |
|
|||||
| |||||||
Engraving tool |
3.175mm,4mm,6mm(optional) |
|
|||||
| |||||||
Format Dictate |
HPGL,G-code |
|
|||||
| |||||||
Ball Screw |
Two-nut rolling ball screw from Germany |
|
|||||
| |||||||
Resolution |
0.01mm |
|
|||||
