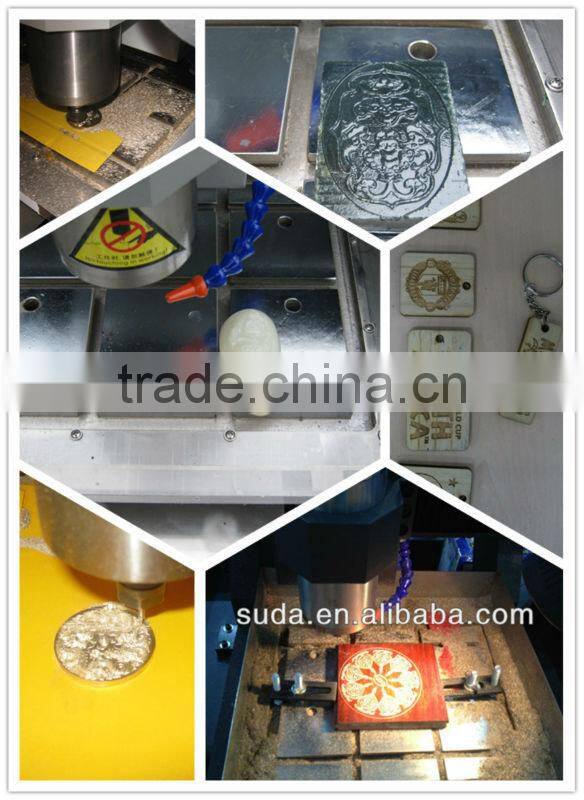

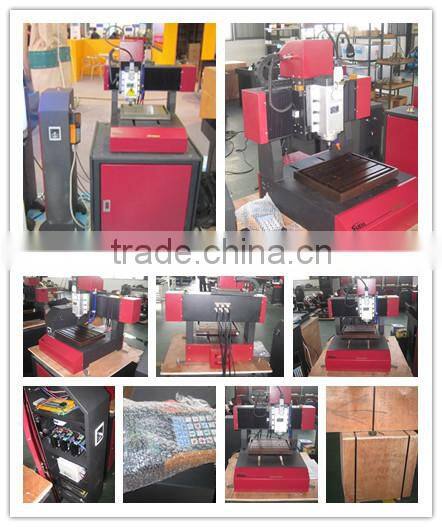

SUDA Small Stamper Cnc Router--SD3025V

Name: SUDA Small Stamper Cnc Router--SD3025V
Brand: SUDA
SKU: 144390934
Availability: InStock

Tongxing Technology Development Co., Ltd. Gold Verified Supplier

5Yrs

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

SUDA

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Anhui, China

Brand Name SUDA

Model Number SD3025V

Engraving Speed 0-80mm/s

Main Axle Rotational Speed 24000

Feeding Height 60

Milling Cutter Diameter 3.175

Dimensions 300*250*40

Weight 120KG

Certification CE,ISO

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

has CE certification.
use DSP control system.
configured with 1500W spindle motor.
motion speed can be up to 100mm/s.

Model	SD3025V
XY Guide	Rolling ball screw from Germany and linear rail
Table size (cm)	30*25
Z Guide	Rolling ball screw from Germany and linear rail
XYZ movement (mm)	300 x 250 x 60
Spindle power	1500W
Spindle speed (min/max)	6000 - 24000 U/Min.
Machine dimension (cm)	565459
Packing dimension (cm)	Machine body-640620670;controller 4604101120;machine cabinet770770820
Weight (kg)	195KGS
Power consumption without spindle	More than 1000W
Speed max.	0-100mm/s
Working speed max.	100mm/s
Stepper or servo motor?	Stepping motor
XYZ accuracy	0,04mm
Reposition accuracy	0,01mm
XY resolution	0,025mm
Z resolution	0,025mm
Table surface	Cast iron table which with water cooling system
Inveter	Danfoss holip frequency converter from Denmark
XY drive configuration	roll screws
Z drive configuration	roll screws
Included Software	Type3 V4.3 english
Software Compatible with	Win98/Win2000/XP
Spindle cooling system	water cooled
Spindle collet	ER11
Tools	10pcs for engraving and cutting &milling
Control system	Advanced CNC Controlling system by computer
Software transmission language	G-Code, HPGL
Interface	Transmit the file from network cable
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	One week when we received all the payment by T/T
Colour	Can optional
