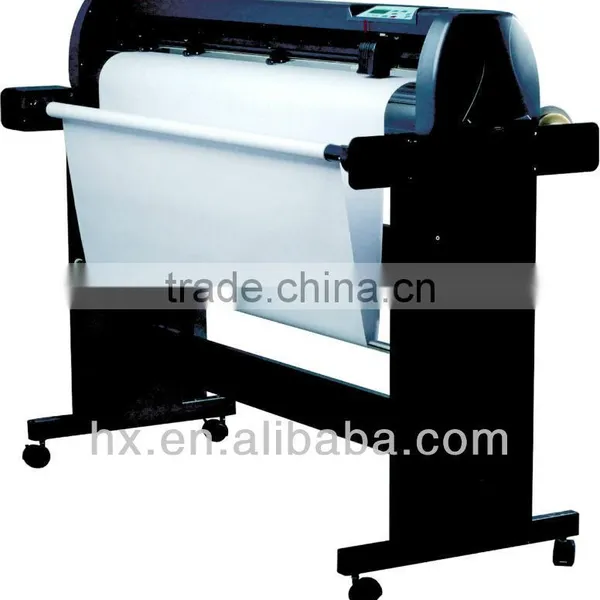

Help CenterCheap! Gerber Gemini Auto CAD Pen Plotter HC-1900 Plotting Machine
Related Products
-
Cheap! Rabbit High Speed Best Price CAD Pen Plotter 1700mm Plotting MachineUS$ 855 - 2,200MOQ: 1 Set -
Cheap Price Both Plot and Cut Double Head Two in One HC1700 Garment Cutter PlotterUS$ 1,000 - 2,200MOQ: 1 Set
-
Optitex High Speed Both Plot and Cut Double Head HC1700 Garment Cutter PlotterUS$ 1,000 - 2,200MOQ: 1 Set
-
Gerber High Speed Both Plot and Cut HC1700 Garment Cutter PlotterUS$ 1,000 - 2,200MOQ: 1 Set
-
Cheap! HP Technology Double Head HJ-1800 Inkjet Plotter Garment MachineUS$ 500 - 2,500MOQ: 1 Set
Specifications
Plotting Machine1 Pen plotter
2 easy operation with perfect plotting.
3 supports all kinds of CAD software
Plotting Machine
Features:Apparal Plotter, with CE certification
1) Steady configuration, aeronautic aluminum alloys comprehensive structure
2) Human factors engineering operation panel, human-friendly paper-cutting devices
3) Subdivision technology plus digital smoothing processing technology, professional hardware circuit design
4) Imported stepping motor with strong HF response ability and high speed
5) Supports DMPL or HPGL language, fully supports for various dresses CAD software
6) Pen machine with imported linear bearings, super anti-abrasion ability and high precision assurance
7) Two-way paper feeding control system, and big torque feeding motor can feed 500m common paper over 40g

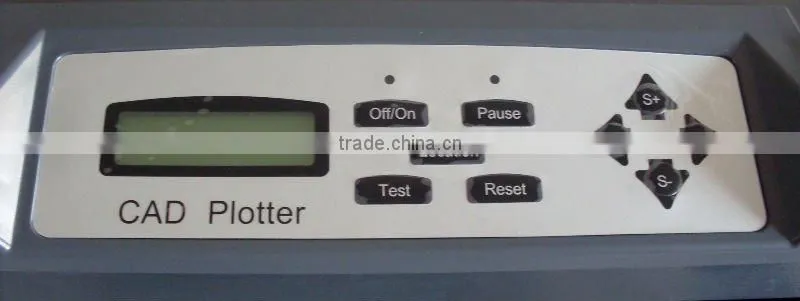

8) Large English LCD display, simple operation menu
9) Imported steel stick paper-feeding spindle, high precision paper-pressing wheel, allowing long-distance paper feeding without aberrancy.
Technical Parameter:
Type |
HC-1400 |
HC-1700 |
HC-1900 |
HC-2100 |
Max. Paper Loading Width |
1360mm(53.5 in.) |
1700m (66.9 in.) |
1900m(74.8 in.) |
2100mm(82.8 in.) |
Max. Plotting Width |
1200mm(47.2 in.) | 1600mm(64.5 in.) | 1800mm(70.8 in.) | 2040mm(80.3 in.) |
Acceptable Pens |
Disposable Ink and Ball Point Pens |
|||
Max. Roll-Media |
40 kg |
|||
Acceptable Media (g/m²) |
40g~120g |
|||
LCD |
English LCD |
|||
Pen Pressure |
0-500g |
|||
Plotting Speed |
1200mm/s(47.2 in./s) |
|||
Machine Resolution |
0.0254mm(0.001in.) |
|||
CPU Double |
CPU |
|||
Data Buffer |
1-4MB |
|||
Hardware Interface |
RS-232(Serial cable), USB (selective) |
|||
Power Supply |
AC200V/110V(15%) |
|||
Working Humidity |
35%-75%(No Condensing water) |
|||
Working Temperature |
10-35°C |
|||
Stand and Take-up System |
Yes |
|||
| Shipping Weight | 65kg | 80kg | 86kg | 95kg |
