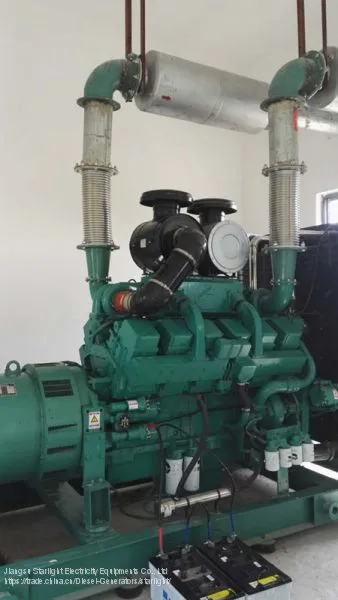

400KW 500KVA Cummins Diesel Generator

400KW 500KVA Cummins Diesel Generator thumbnail-1
400KW 500KVA Cummins Diesel Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Shuang Tong
Place of Origin:
China
Model Number:
XG-400GF
Contact Supplier Request Quote Chat Now
Guangxi Dingbo Generator Set Manufacturing Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Shenzhen, Khorgos
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shuang Tong
Place of Origin China
Model Number XG-400GF
Rated Current 655(A)
Output Type AC Three Phase
Speed 1500（r/min）
Frequency 50(Hz)
Rated Voltage 400/230(V)
Rated Power 400KW

Diesel Generator Set Data


Set Type: XG-400GF

Prime Power: 400KW/500KVA

Rated Current: 655(A)

Rated Frequency: 50（Hz）

Start-up time: 5～6（s）

Power Factor: 0.8（Lag）

Rated Voltage: 400/230（V）

Standard Features


Engine: CCEC Cummins KTA19-G3

Radiator 50℃ max

Fans are driven by belt, with safety guard

24V charge alternator

Dry type air filter, fuel filter, oil filter

Alternator: single bearing alternator

IP23, insulation class H/H

Main line circuit breaker

Standard control panel

Absorber

Muffler

User manual


Diesel Engine Data


Manufacturer:  CCEC Cummins

Model: KTA19-G3

Output Power: 448KW

Rated Speed: 1500（r/min）

Cycle: 4 stroke

Cylinder Arrangement: 6 in line

Displacement: 18.9L

Bore and Stroke: 159*159（mm）

Compression Ratio: 14.5:1

Governor Type: Electronic

Start battery voltage: 24V DC

Air Intake System


Air Intake System: Turbo, Water/Air Cooling

Max Intake Restriction: 6.23kPa

Burning Capacity: 533L/s

Air Flow: 9800L/s

Exhaust System


Exhaust Gas Flow:  1489L/s

Exhaust Temperature: 532

Max Back Pressure: 10kPa

Fuel System


Fuel System: PT type fuel pump

100%( Prime Power) Load: 204.6g/kw•h

50%( Prime Power) Load: 215.7/ kw•h

Oil System


Total Oil Capacity: 50L

Oil Consumption: ≤0.24L/h

Engine Oil Tank Capacity: 38L

Oil Pressure at Rated RPM: 345-483kPa

Cooling System


Cooling Way: Water-cooled

Total Coolant Capacity: 91L

Thermostat: 82-93℃

Max Water Temperature: 104℃

Alternator Data


Manufacturer: STARLIGHT/STAMFORD/SIEMENS/MARATHON/ENGGA/KEPU

Excitation Mode: Brushless and self- exciting

Number of phase and Access Act: 3-phase 4-wire

Connecting Type: “Y” type connecting

Alternator Capacity: 500KVA

Alternator Efficiencies: 95％

Overload: （PRP）110% load can run 1h

Protection Level: IP22-IP23

Insulation Class, Temperature Rise: H/H

Telephone Influence Factor (TIF): ＜50

THF: ＜2%

Voltage Regulation, Steady State: ≤±1%

Air Cooling Flow: 1.035m3/s

Altitude: ≤1000m


3400(mm)*1360(mm)*1980(mm) 4100(kg)
