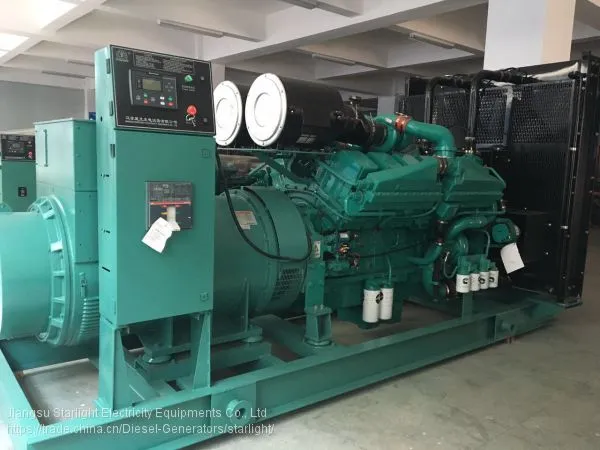

800KW 1000KVA Cummins Generator Set

Diesel Generator Set Data

Set Type: XG-800GF

Prime Power: 800KW/1000KVA

Rated Current: 1309（A）

Rated Frequency: 50（Hz）

Start-up time: 5～6（s）

Power Factor: 0.8（Lag）

Rated Voltage: 400/230（V）

Standard Features

Engine: CCEC Cummins KTA38-G2A

Radiator 50℃ max

Fans are driven by belt, with safety guard

24V charge alternator

Dry type air filter, fuel filter, oil filter

Alternator: single bearing alternator

IP23, insulation class H/H

Main line circuit breaker

Standard control panel

Absorber

Muffler

User manual

Diesel Engine Data

Manufacturer:  CCEC Cummins

Model: KTA38-G2A

Output Power: 895KW

Rated Speed: 1500（r/min）

Cycle: 4 stroke

Cylinder Arrangement: 12 “V”

Displacement: 37.8L

Bore and Stroke: 159*159（mm）

Compression Ratio: 14.5:1

Governor Type: Electronic

Start battery voltage: 24V DC

Air Intake System

Air Intake System: Turbo, Water/Air Cooling

Max Intake Restriction: 6.23kPa

Burning Capacity: 1126L/s

Air Flow: 30425L/s

Exhaust System

Exhaust Gas Flow:  3225L/s

Exhaust Temperature: 536℃

Max Back Pressure: 10kPa

Fuel System

Fuel System: PT type fuel pump, EFC

100%( Prime Power) Load: 199g/kwh

50%( Prime Power) Load: 204g/kwh

Oil System

Total Oil Capacity: 135L

Oil Consumption: ≤0.4g/kwh

Engine Oil Tank Capacity: 114L

Oil Pressure at Rated RPM: 310-448kPa

Cooling System

Cooling Way: Water-cooled

Total Coolant Capacity: 252L

Thermostat: 82-93℃

Max Water Temperature: 104℃

Alternator Data

Manufacturer: STARLIGHT/STAMFORD/SIEMENS/MARATHON/ENGGA/KEPU

Excitation Mode: Brushless and self- exciting

Number of phase and Access Act: 3-phase 4-wire

Connecting Type: “Y” type connecting

Alternator Capacity: 1000KVA

Alternator Efficiencies: 95％

Overload: （PRP）110% load can run 1h

Protection Level: IP22-IP23

Insulation Class, Temperature Rise: H/H

Telephone Influence Factor (TIF): ＜50

THF: ＜2%

Voltage Regulation, Steady State: ≤±1%

Air Cooling Flow: 1.614m3/s

Altitude: ≤1000m
