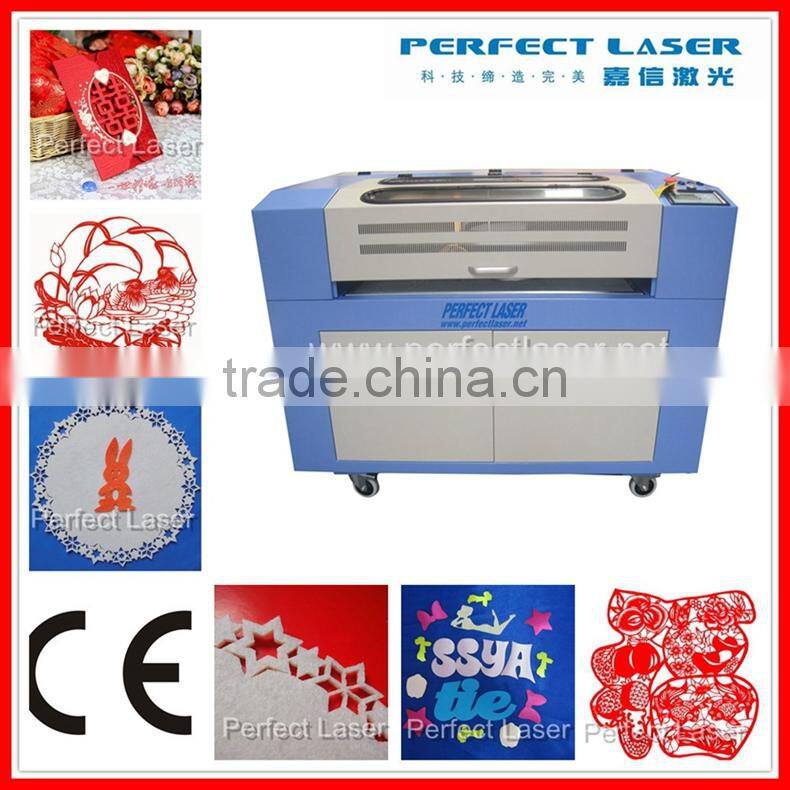

2015 China Machiney New Product wood acrylic leather rubber stone plastic mini laser paper cutter

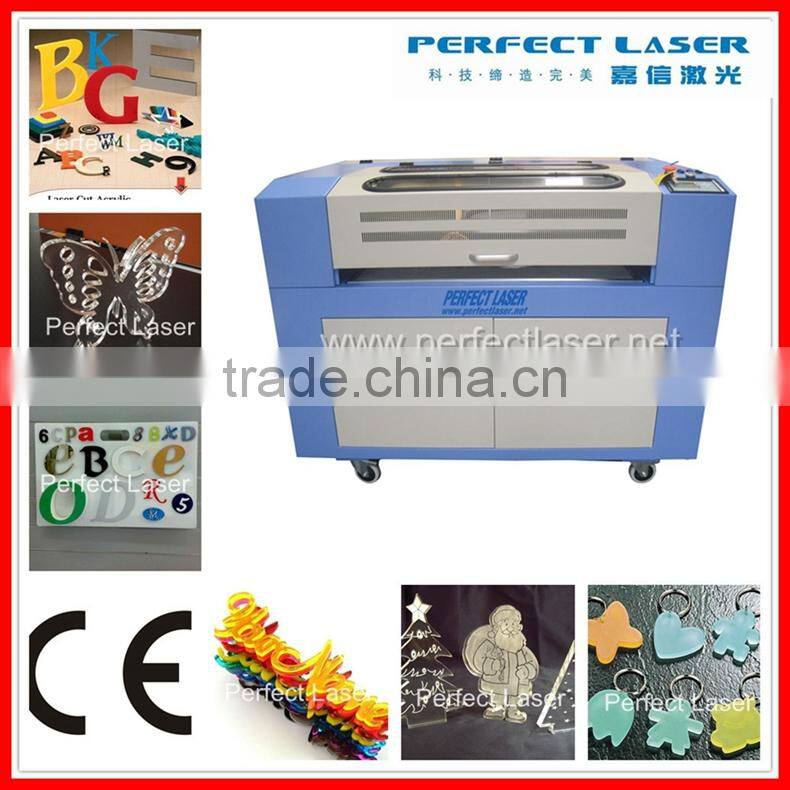

CO2 Laser Engraving and Cutting Machine :
Our co2 laser engraving machine is widely used for Non-metal material, like the Acrylic, wood, leather, Gift& Crafts, Advertising, fabrics clothes and garments handbags. woods, PVC, glass, etc.
We are supplying different models by working area :
400*300mm,600*400mm,900*600mm,1300*900m,1600*1000mm,1600*2600,1300*1800mm,1300*2500mm,1600*2600mm, etc and Laser Power (40w, 50w,60w,80w,100w,120w,150w etc).
Also, we can customize if any special.
Laser Cutting machine fixed with a selective rolling & automatic feeding system, which make the whole cloth processing steps finish one time, suitable for engraving/cutting on very long work piece, such as one roller of cloth /fabric /leather /garment. Auto Feeding Laser Engraving Machine especially applied in Fabric and Garments Industry.
Our laser cutting machine with laser power 40w, 50w, 60w,80w,100w,120w,150w,etc
Laser cuttinmg machine Description:

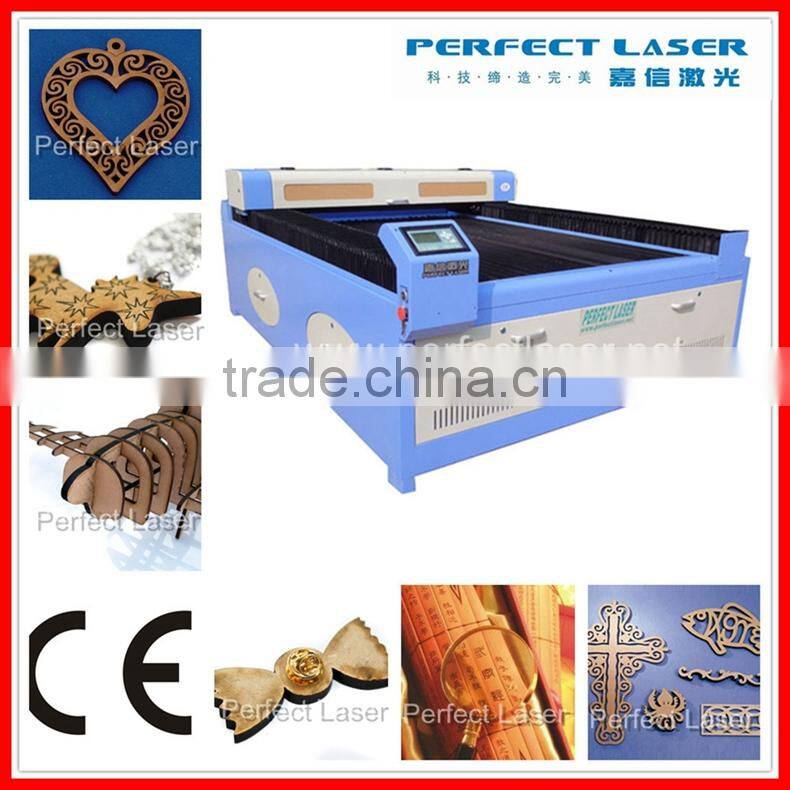

Large Scale Laser Machinery is a multi-function laser process device which combines the functions of drawing, engraving and cutting. It adopts automatic stainless steel crawler platform & large scope, so it can meet the demand of large-format cutting, carving for clothing and other fields. This Laser Engraving Machine not only have all the large scale engraving machines function, but also have mechanical design, capability, and working area perfect improved.
Laser cutting machine Features:
1. Adopts automatic stainless steel crawler platform & large scope, can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of small speed, higher precision can save time and greatly improve production efficiency combing with automatic feeding device.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9. Red Light Pointer realizes the exact position without laser.
10. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
11. Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
Laser cutting machine Application Fields:
1. It’s widely used in garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.

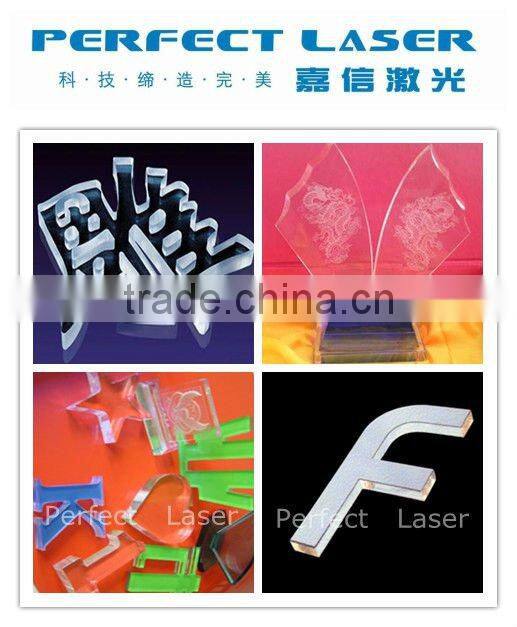

2. Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
3. Wood material: wood engraving and cutting, MDF engraving, plywood cutting.
Laser cutting machine Application Industry:
Garment and leather, embroidery, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, decoration and upholster industry.
laser cutting machine Technical Parameter:
Model |
PEDK-130180 |
PEDK-130250 |
PEDK-160260 |
Working Area |
1300×1800mm |
1300×2500mm |
1600×2600mm |
Laser Power |
60W / 80W / 100W / 120W / 150W |
||
Laser Type |
Hermetic and Detached Co2 Laser Tube |
||
Engraving Speed |
1-60000mm/min |
||
Cutting Speed |
1-10000mm/min |
||
Repeat Location Accuracy |
± 0.0125mm |
||
Laser Power Controlling |
1-100% Manual Adjustment and Software Controlling |
||
Voltage |
220V(±10%) 50Hz |
||
Cooling Mode |
Water Cooling and Protect System |
||
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
||
Controlling Mode |
CNC Professional Control System |
||
Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
||
Power Controlling Mode |
Laser Energy Combining Movement Control System |
||
Control Software |
Original Perfect Laser Engraving & Cutting Software |
||

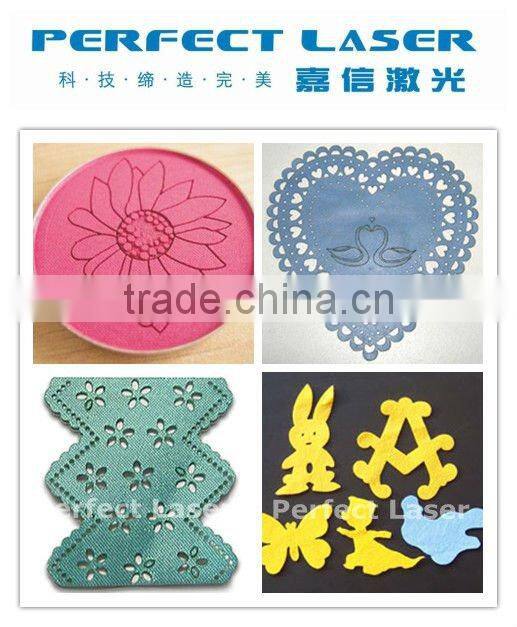

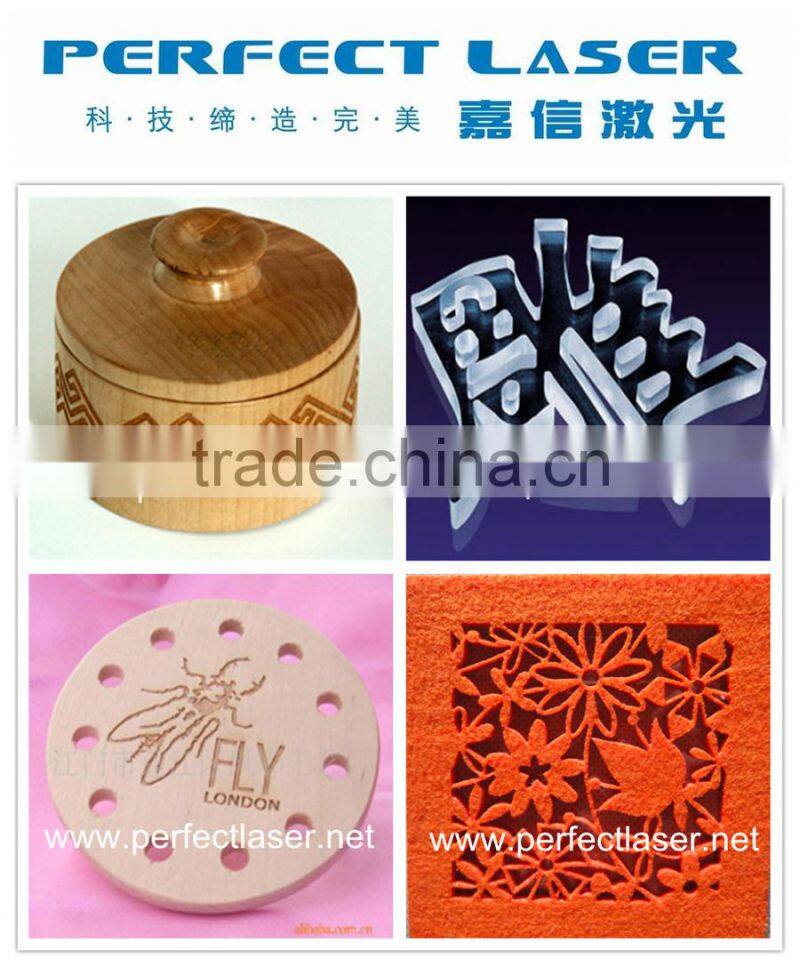

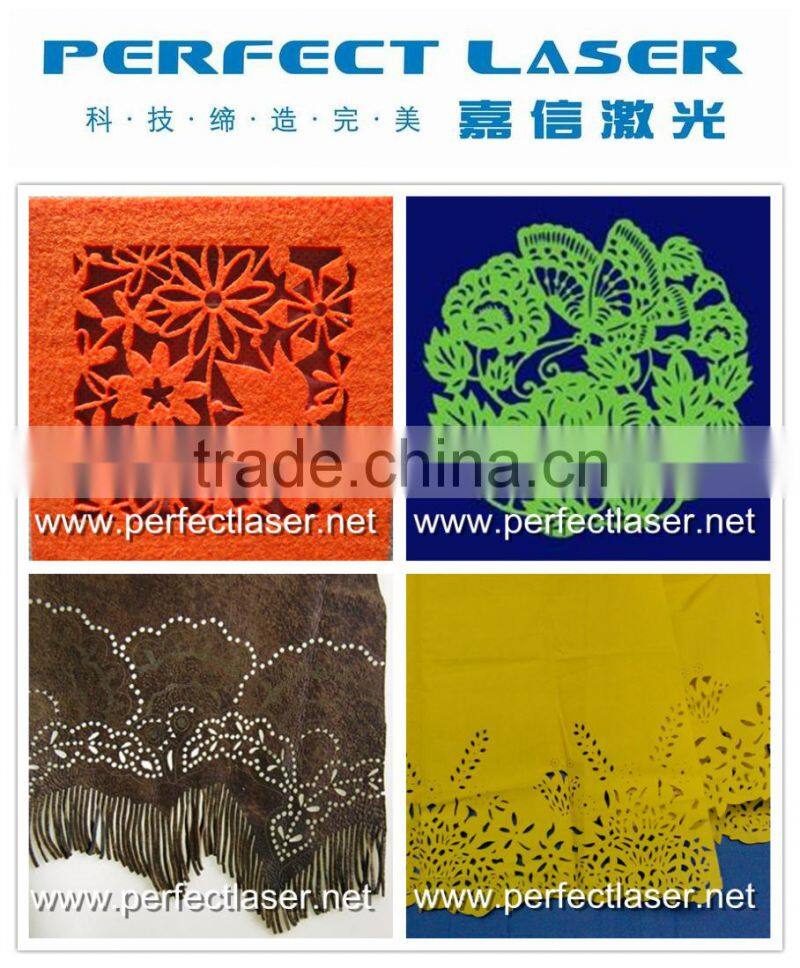

laser cutting machine Samples:
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact –China Perfect Laser!
- The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
- The cutting depth on above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
-
The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,...)
