Product Details
Condition: | New | Engraving Area: | 1300*2500mm | Engraving Speed: | 8000mm/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Applicable Material: | Acrylic, MDF, Metal, plastic, Stone, Wood |
Graphic Format Supported: | DXF, PLT, Other, DXF, PLT, G code,MMG,U00,NC,ENG | Place of Origin: | Hubei, China | Brand Name: | Perfect Laser |
Model Number: | PEM-1325C | Dimension(L*W*H): | 3200*2020*1250mm | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2016 Perfect Laser Stone Engraving CNC Router
for acrylic double color boards plastic wood
Stone Engraving CNC Router Product Introduction:
1.The overall body cast iron beds, and secondary tempering precision machining; widen and thicken
beams and columns design,can carve 15MM natural marble with one knife.
2.The device with automatic water system and tank design, to ensure that longer use of the tools.
3.The machine uses water-proof design, to ensure the transmission parts and circuit parts are durable
and safe.
4.Spindle motor frequency spindle high power water-cooled, water-proof design.
5.To work long hours, which can realize power, breakpoints, and the next processing, convenient and save
labor. Adopts the break point memory method, guarantee processing under the condition of accident
(cutting knife), or the next day.
6.High speed machining: high kinetic energy, Y axis double motor drive, curve, straight line speed.
Unique save way of multiple work-piece machining zero .
Stone Engraving CNC Router Applicable Industry:
Suitable industries:billboards, model industry,electronics and electric appliances, decoration
industry, toys and gifts, furniture manufacturing, etc.
Available materials: acrylic, double color boards, plastic, wood, ABS, PVC, MDF, PCB, copper,
aluminum and various non-ferrous metals.
Stone Engraving CNC Router Technical Parameter:
Model | PEM-1325C |
Working area | 1300*2500*200mm |
Volume | 3200*2020*1250mm |
Main axle power rate | 2.2/3/4.5/5.5KW(optional) |
Main axle rotating speed | 6000-24000 rpm/min |
Max.Working speed | 8000mm/min |
Feeding height | 200mm |
Engraving tools | 3.175/4/6/12.7mm |
Re-positioning Accuracy | 0.02mm |
Supported File Format | DXF,PLT,G code,MMG,U00,NC,ENG |
Power | AC220V(380V)/50HZ (optional:AC110V/60HZ ) |
Weight | 1600kg |

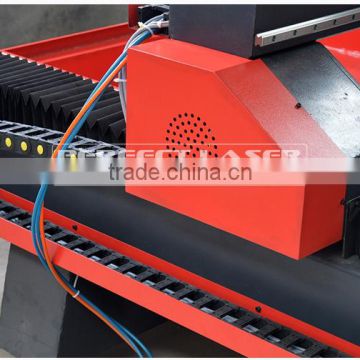

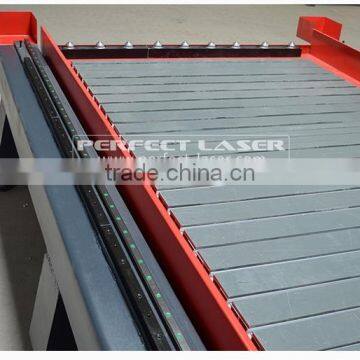

Detailed Pictures:
Sample Show:
Engraving machine maintenance:
1.Continuous running time under 10 hours a day, to ensure the normal work of the cooling water cleanand
the water pump, must not water shortage phenomenon in a spindle motor, regular replacement of cooling
water, in order to prevent the water temperature is too high. If working environment temperature is too low
in winter can replace the water inside cistern with antifreeze.
2.Each machine after use, should pay attention to clean up, be sure to clean up the dust on the platform and
the transmission system, on a regular basis (weekly) for transmission system (X, Y and Z axis) lubricating.
(note: X, Y, Z three axis polished rod with oil for maintenance; screw part with high-speed butter; winter if
working environment temperature is too low screw,polished rod guide or circular guide (squares) part should
use gasoline to wash clean first, then add oil, otherwise it will cause machine transmission part of the
resistance is too large and cause dislocation.
3.Maintenance checks to the appliance is, must cut off power supply, to monitor display and main circuit
power light goes out after may.
Terms & Conditions:
Delivery Term: | FOB Shanghai Port. |
Payment Term: | By T/T Payment |
Delivery time: | Within 5-7 days after receive your payment. |
Packing: | Wooden Box Comply with International Export Standard. |
Quality Guarantee Terms: | Quality guarantee term is for 12 months. Malfunctions which are caused by machine and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
Validity Time: | The period of validity for this quotation is 4 weeks. |
