Hot sale 300w/400w 20mm die board laser cutting machine price
Please kindly let me know when sending inquiry to us:
(1) What material will be cut? Wooden template, plastic template, organic glasses?
(2) What is the size/working area and thickness of the material?
Applied Field for die board laser cutting machine :
Available Materials: It’s mainly used in thick MDF cutting, wood cutting, bamboo cutting, plywood cutting. It also can be used for acrylic cutting, organic glass cutting, plastic cutting, PVC board cutting, plexiglass cutting etc. materials cutting.
Application Industry: packages, advertisement, handicrafts and other industries.
Why should we choose die board laser cutting machine ?
1. Auto Following and Focus System, key elements to successfully cut die board, can automatically senses the distance from cutting head to die board being cut and adjust the focus distance to keep a good cutting quality.
2. Install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced Two laser heads coaxial cutting technology, which can cut both sides of the die board in the same axle, enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched two-dimensional accurate working table insure the high stability of the cutting performance.
5. Tempering heat treated lathe bed, which isn’t easy to be deformed.
6. The thickness of 15MM, 18MM, 20MM, 25MM die-board can be cut arbitrary width, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.
7. Cut directly with compressed air, no need to configurate with any other inactive gas, greatly lowered the users operation cost.
8. Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal processing industry.
Technical parameters for die board laser cutting machine :
Model |
PEC-0806 |
PEC-1208 |
PEC-1512 |
Working area |
800× 600mm |
1200× 800mm |
1500× 1200mm |
Laser tube |
Chinese Top Quality Laser Tube |
||
Laser power |
150W× 2 |
||
Tube Lifetime |
1500-3000 hours |
||
Maintenance |
Change laser tube every 3-6 months |
||
Cutting Mode |
Two laser head coaxial cutting |
||
Cutting Speed |
10 -6000mm /min |
||
Max Cutting Depth |
25mm |
||
Cutting Width |
0.35mm -0.75mm adjustable, > 0.75mm adjustable |
||
Driving system |
Japan Panasonic Servo Motor and Driver |
||
Transmission System |
Germany Ball Screw Rod & Taiwan Linear Guide Rail |
||
Machine Power |
2.5KW |
||
Working voltage |
220V(±10%) 50-60Hz |
||
Cooling Mode |
Water cooling and protection system |
||
Support Format |
HPGL,PLT,AI,DXF etc. |
||
Compatible software |
CorelDraw, AutoCAD, Photoshop |
||
Controlling Mode |
CNC Professional Control System |
||

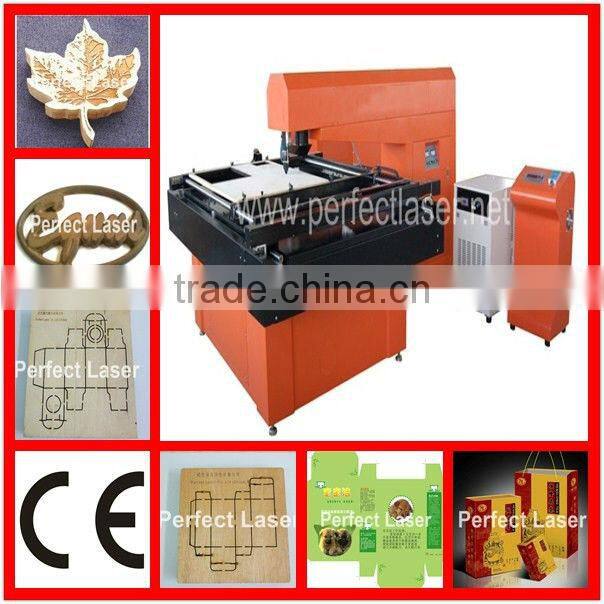

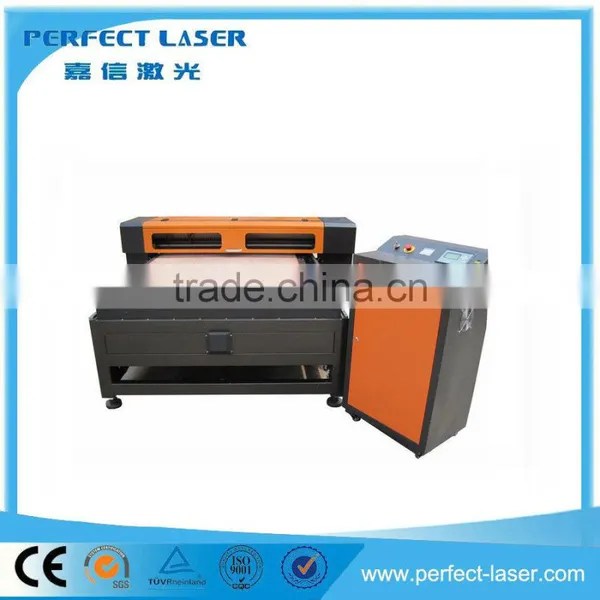

die board laser cutting machine picture:

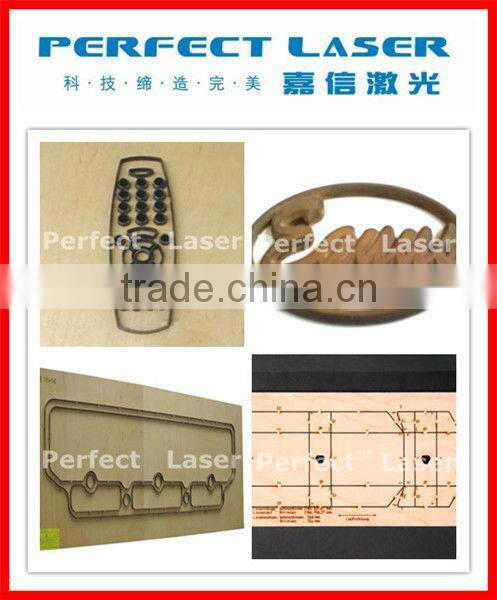

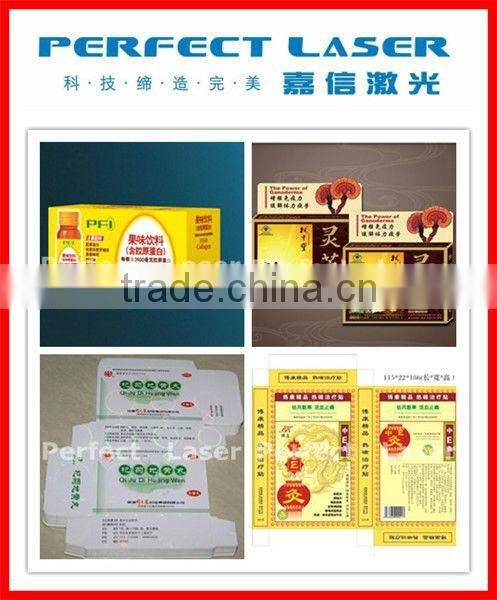

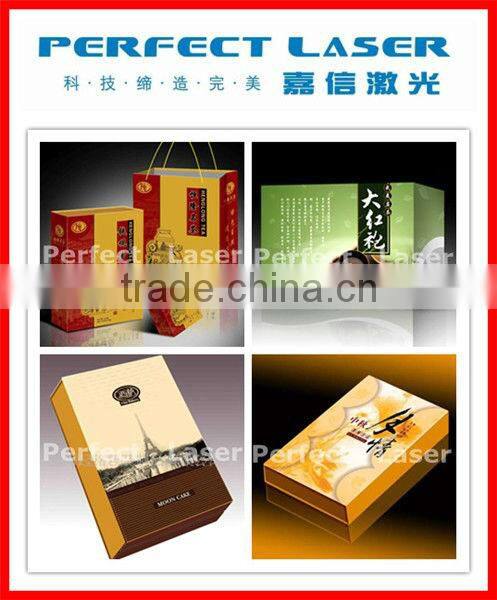

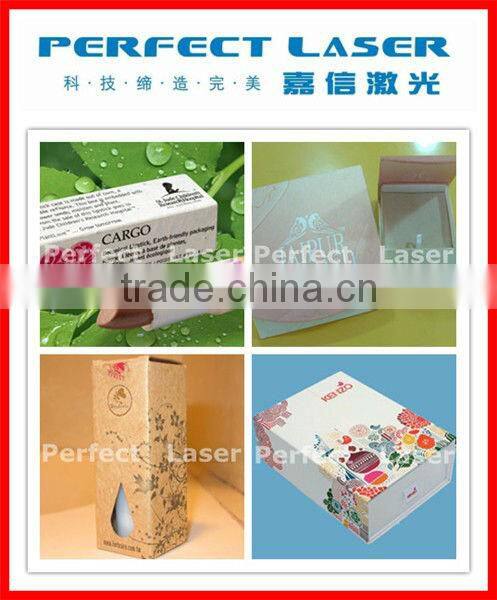

die board laser cutting machine samples:
Exihibiton Pictures for die board laser cutting machine :
Quality Control for die board laser cutting machine :

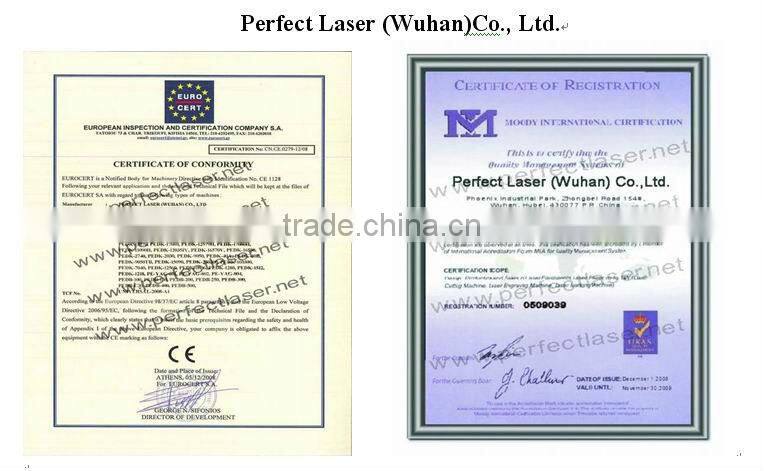

Our company has acquired the European CE Certificate, ISO9001: 2000 quality system certificate, you can cooperate with us safety.
After- Sale Service:
1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a 12 months quality guarantee period.
2> We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
3> We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service at your local site.
To benefit from our company, Get what you pay from us, Please feel free contact me now My skype: perfectlaser002 My TM: cn1001433513
>>>>>>>>>
