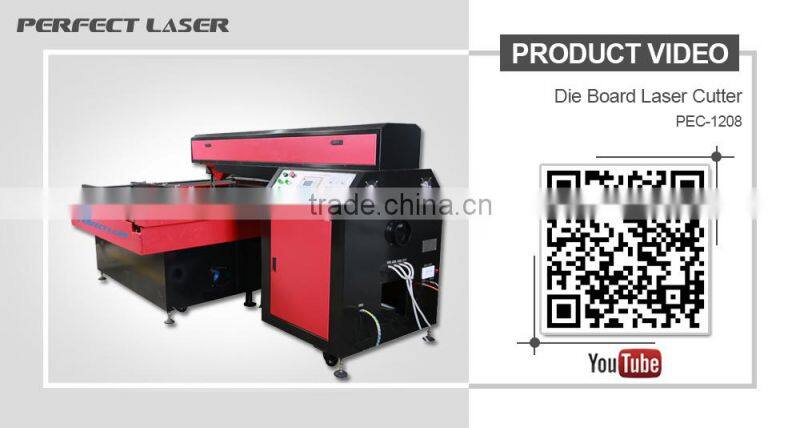

Perfect Laser PEC-1208 300w Die Board Laser Cutting MachineUS$ 18,000 - 23,000MOQ: 1 Set -
Perfect Laser PEC-0806 Die Board Laser Cutting MachineUS$ 18,000 - 23,000MOQ: 1 Set
-
Perfect Laser PEC-0909 / 1215 / 1218 Die Board Laser Cutting MachineUS$ 15,000 - 20,000MOQ: 1 Set
-
Hot Sale Dot Peen Pneumatic Marking Machine With Lowest Price From Perfect LaserUS$ 1,000 - 2,000MOQ: 1 Piece
-
Automotive Industry Pneumatic Vin Number Printing Machine , Serial Number Stamping MachineUS$ 1,000 - 1,250MOQ: 1 Set

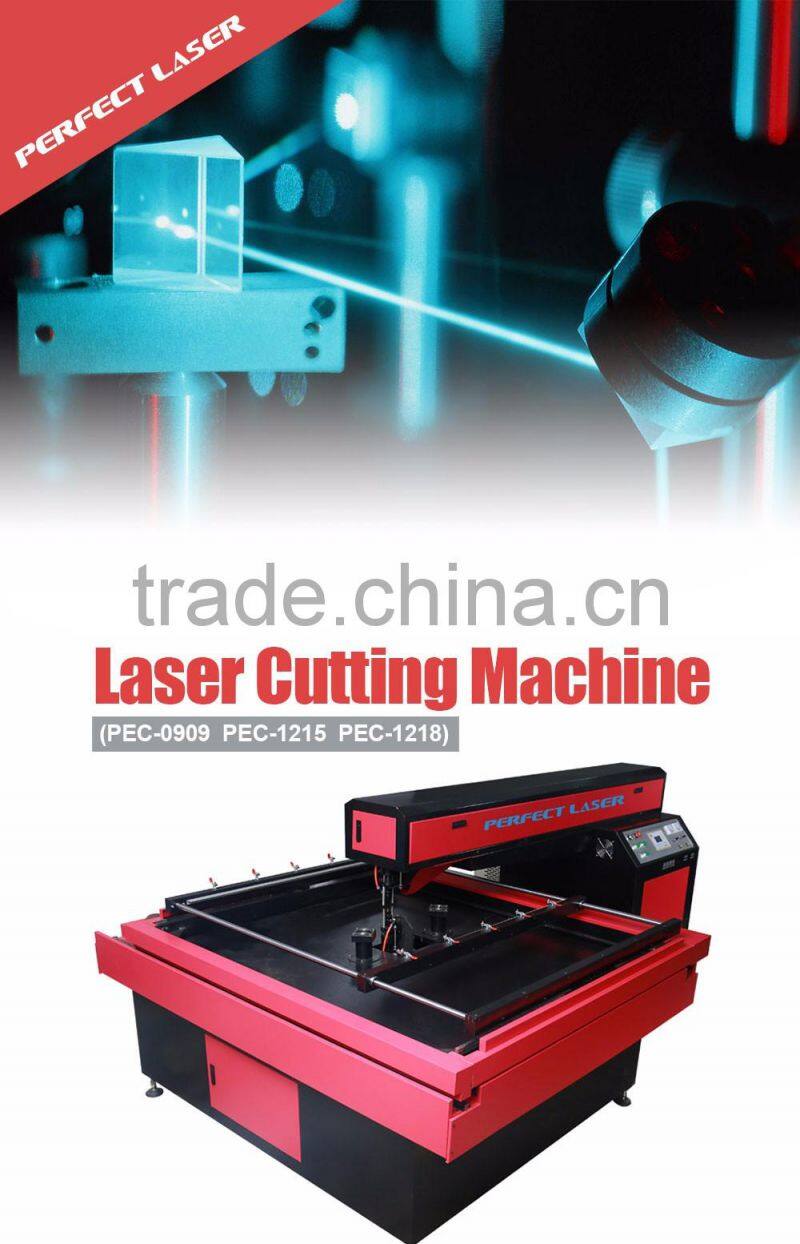

18mm Plywood Laser Die Board Cutting Machine 300w 400w to Make Plywood / Carton / Wood Package
Whatsapp:+8613659885038 Skype:Perfectlaser08
Applied Field for laser die cutting machine:
Available Materials: It’s mainly used in thick MDF cutting, wood cutting, bamboo cutting, plywood cutting.
It also can be used for acrylic cutting, organic glass cutting, plastic cutting, PVC board cutting, plexiglass cutting etc. materials cutting.
Application Industry: packages, advertisement, handicrafts and other industries.

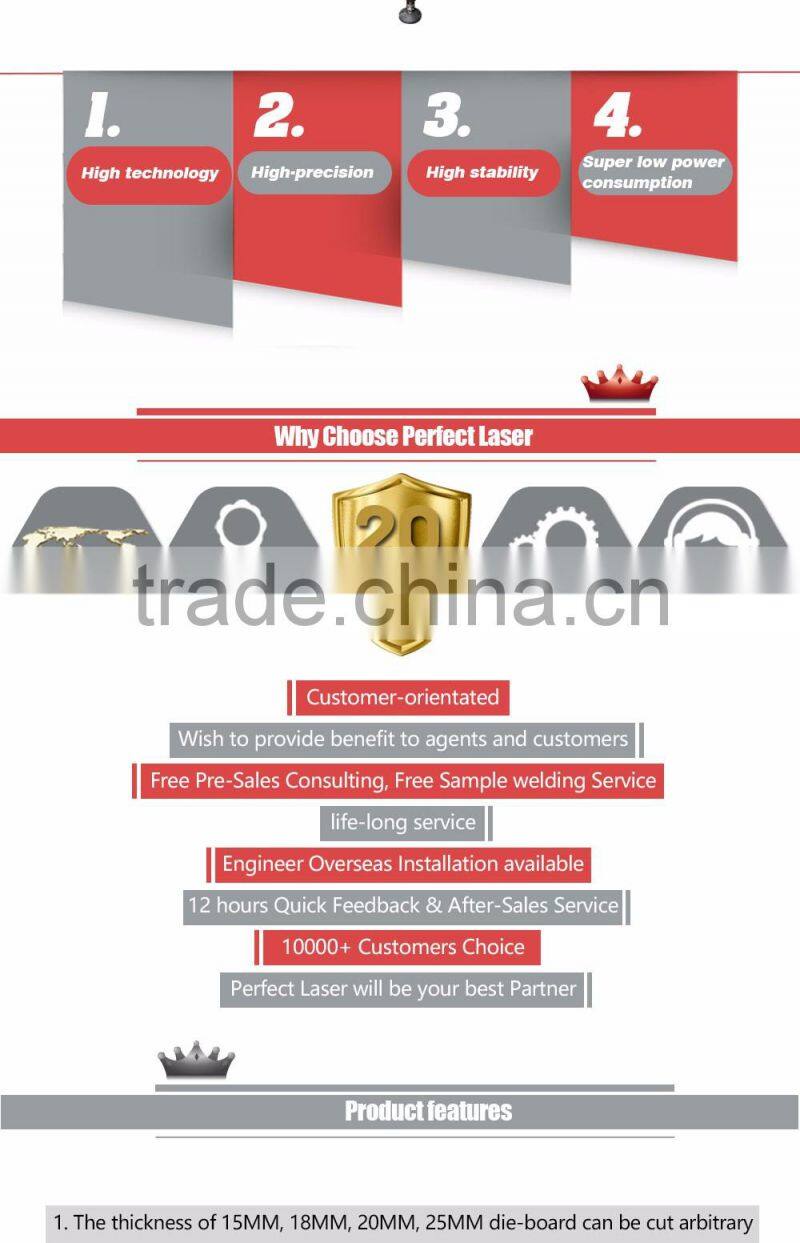

Why should we choose Die Board Laser Cutting Machine?

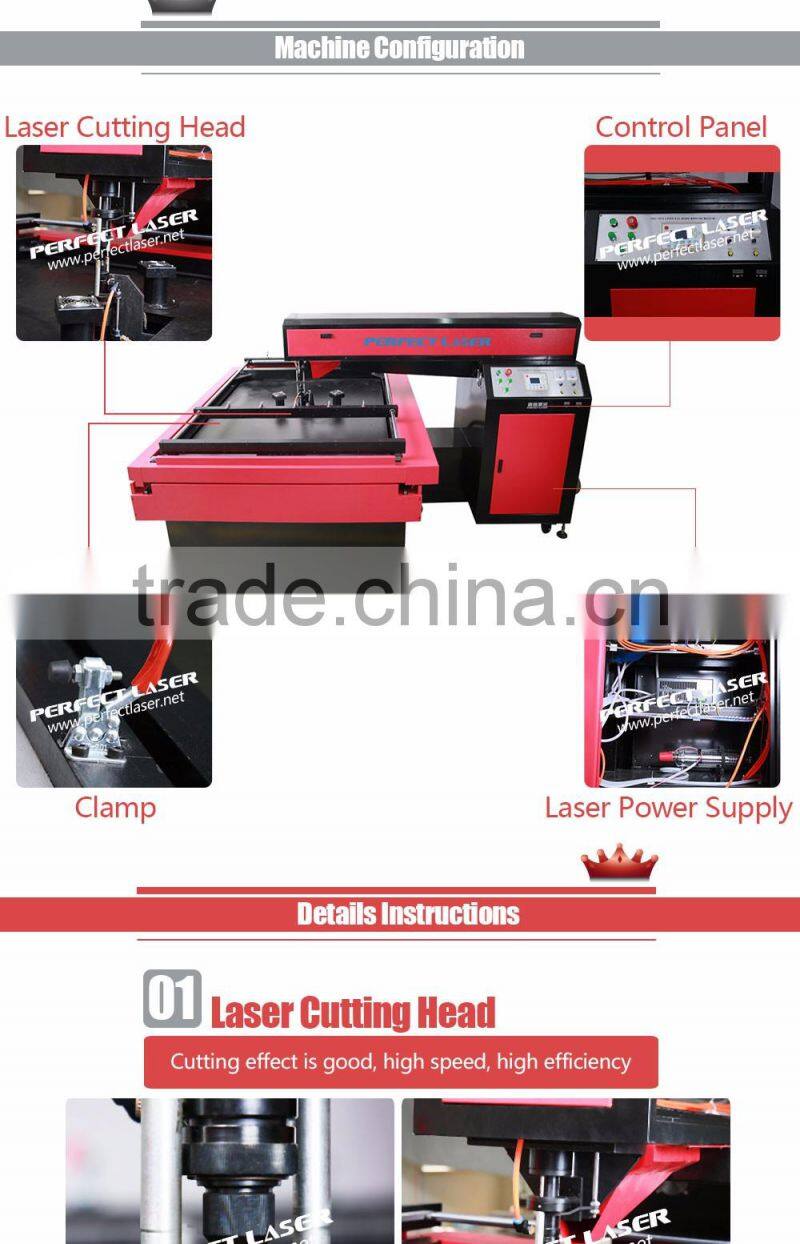

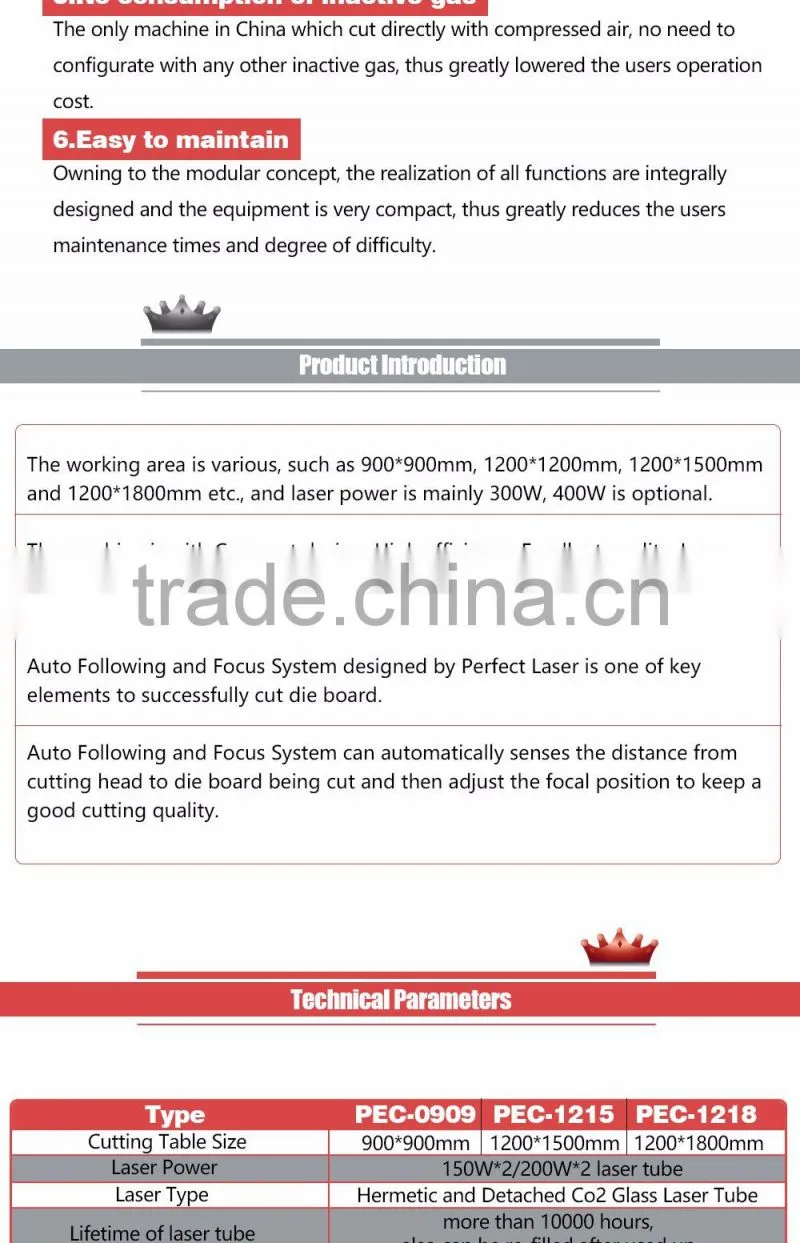

1. Auto Following and Focus System, key elements to successfully cut die board, can automatically senses
the distance from cutting head to die board being cut and adjust the focus distance to keep a good cutting quality.
2. Install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced Two laser heads coaxial cutting technology, which can cut both sides of the die board in the same axle,
enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched two-dimensional accurate working table insure the high stability of the cutting performance.
5. Tempering heat treated lathe bed, which isn’t easy to be deformed.

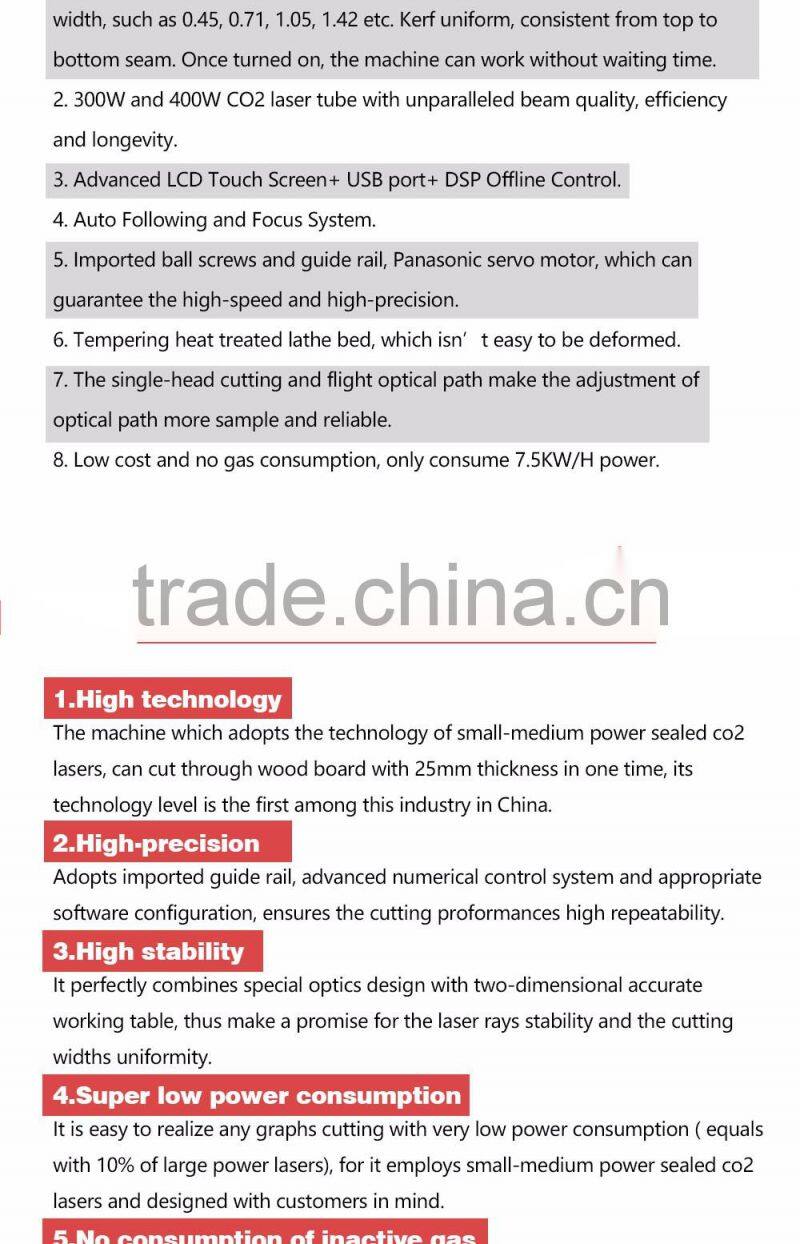

6. The thickness of 15MM, 18MM, 20MM, 25MM dieboard can be cut arbitrary width, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.

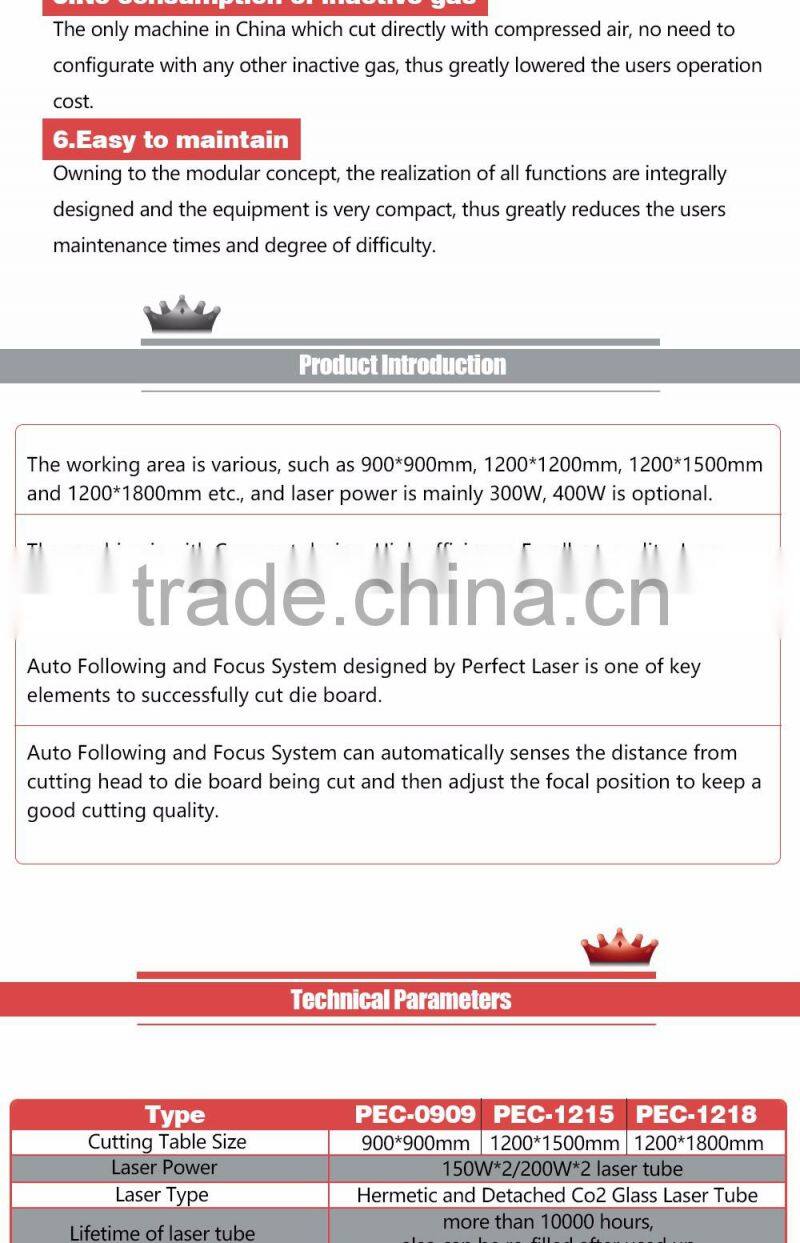

7. Cut directly with compressed air, no need to configurate with any other inactive gas, greatly lowered the users operation cost.

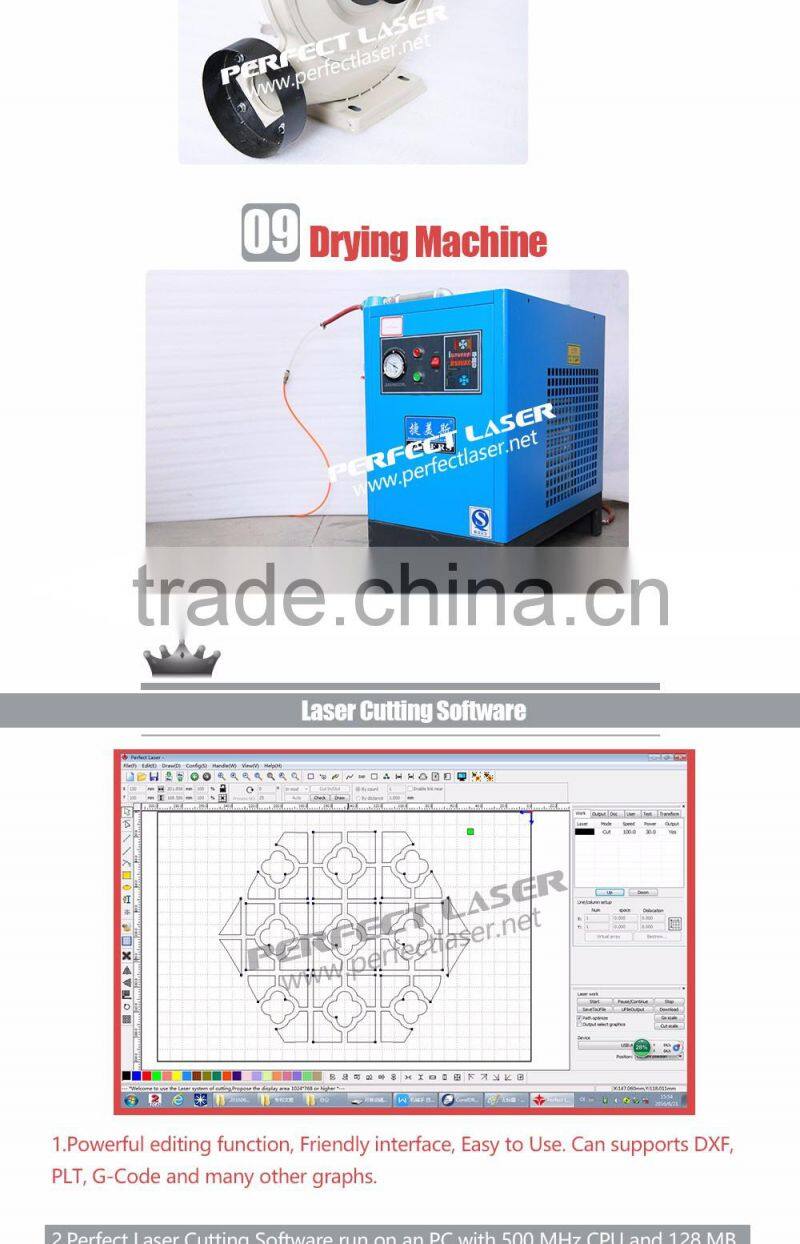

8. Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal processing industry.

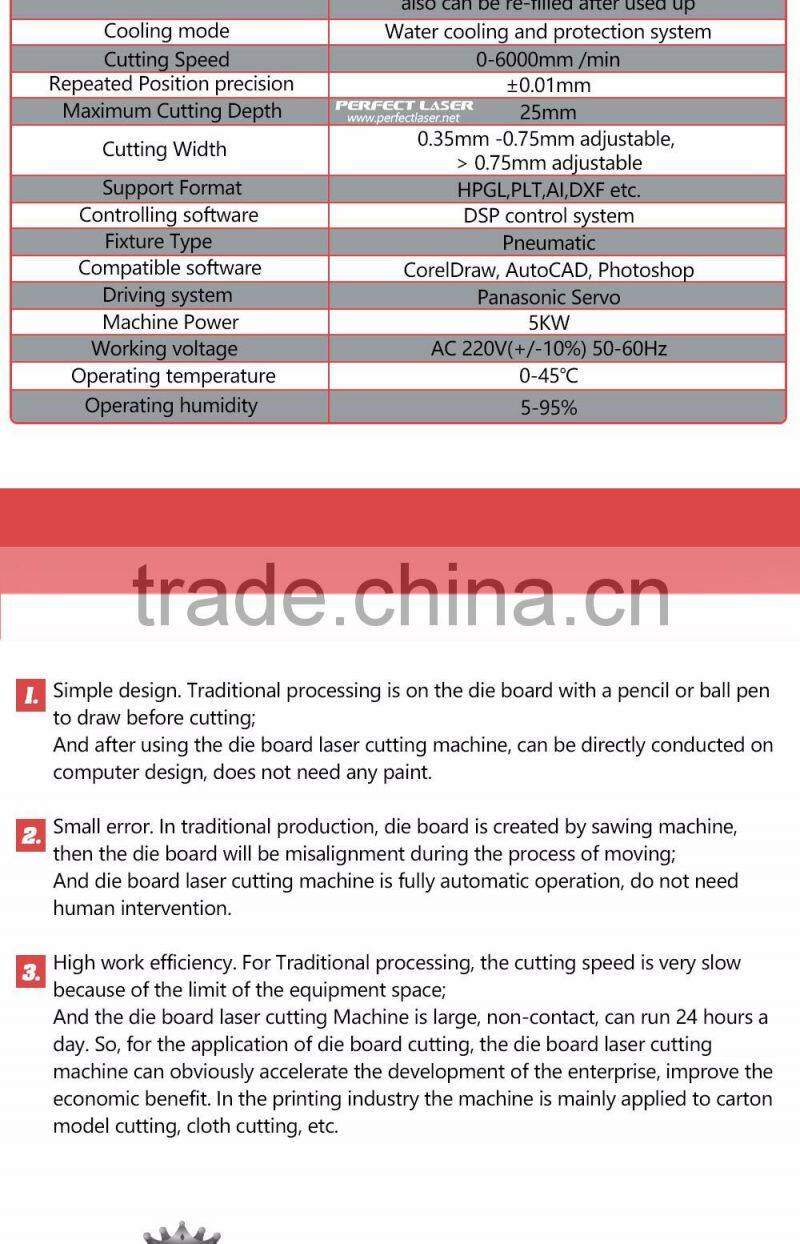

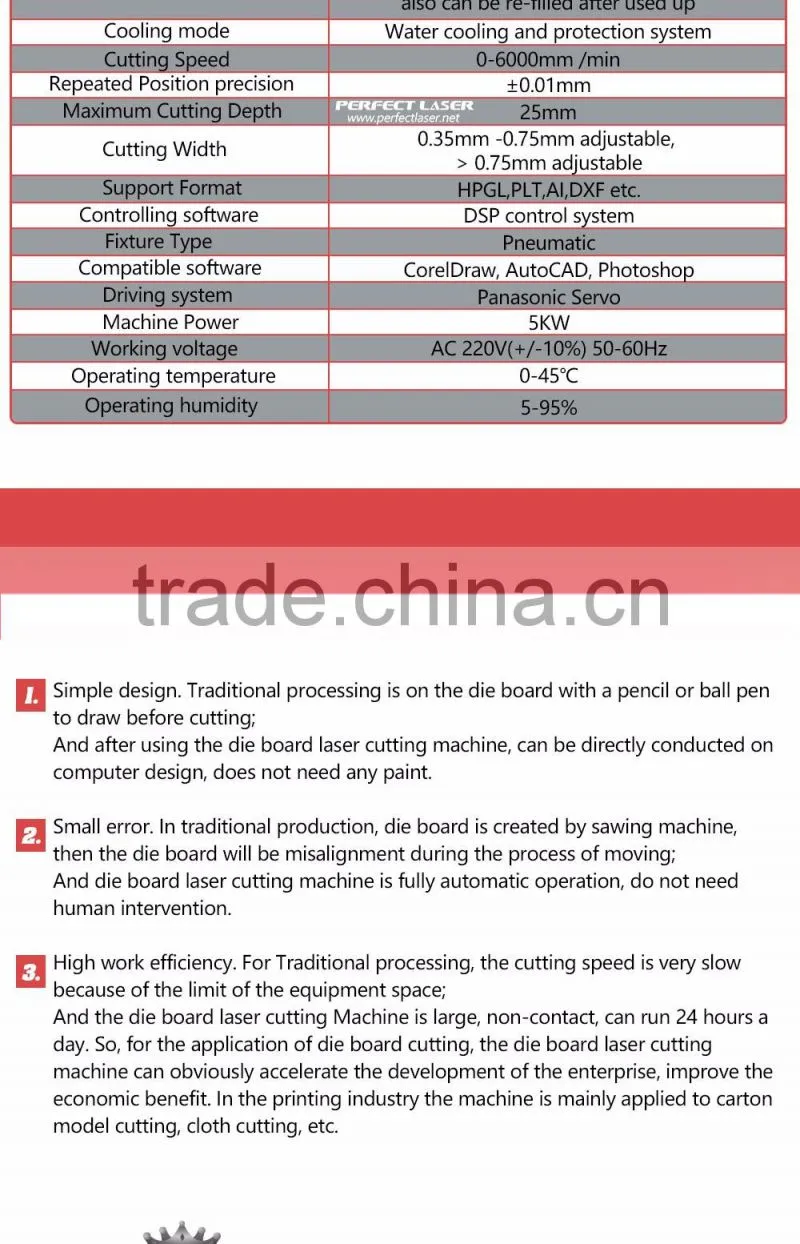

Technical parameters for laser die cutting machine :
Model |
PEC-0806 / PEC-1208 / PEC-1512 |
Working area |
800*600mm / 1160*800mm / 1460*1160mm |

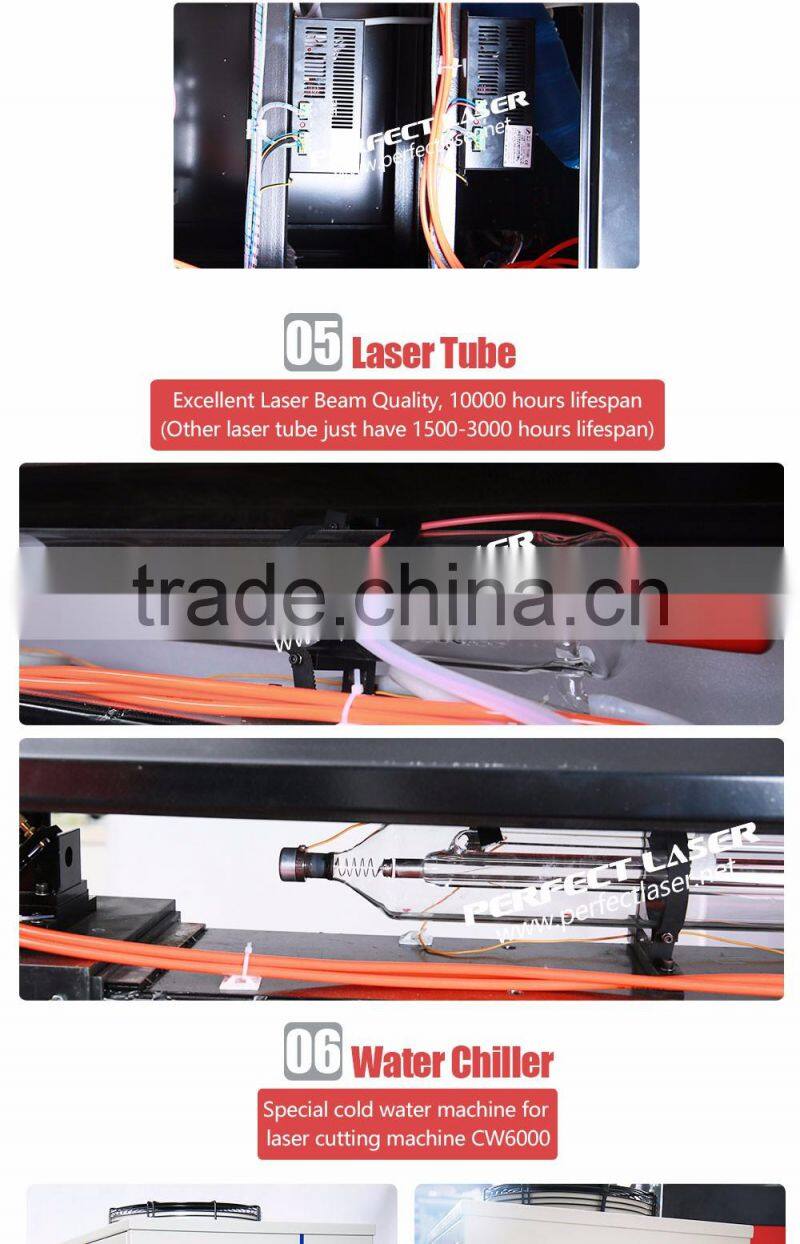

Laser tube |
Chinese Top Quality Laser Tube |
Laser power |
150W× 2 |
Tube Lifetime |
10,000 hours |
Maintenance |
Change laser tube every 3-6 months |
Cutting Mode |
Two laser head coaxial cutting |
Cutting Speed |
10 -6000mm /min |
Max Cutting Depth |
25mm |
Cutting Width |
0.35mm -0.75mm adjustable, > 0.75mm adjustable |
Driving system |
Japan Panasonic Servo Motor and Driver |
Transmission System |
Germany Ball Screw Rod & Taiwan Linear Guide Rail |
Machine Power |
2.5KW |
Working voltage |
220V(±10%) 50-60Hz |

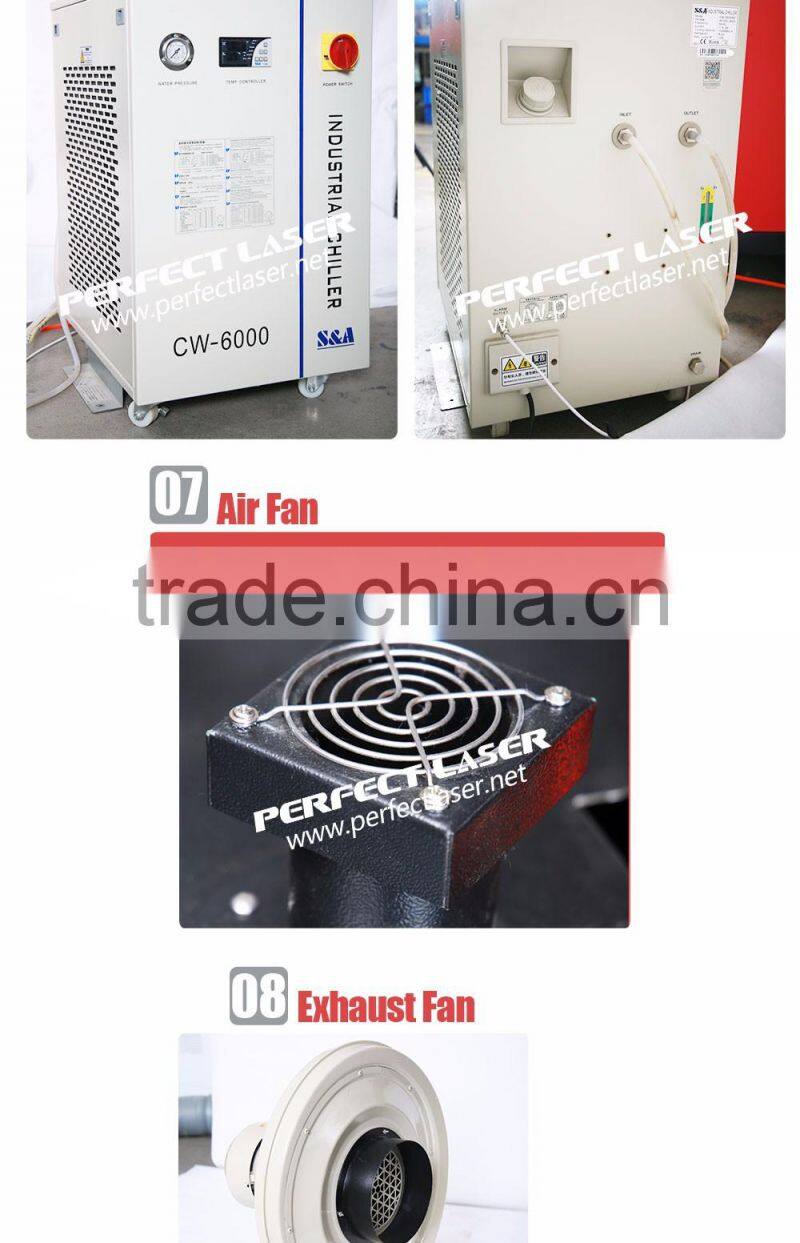

Cooling Mode |
Water cooling and protection system |
Support Format |
HPGL,PLT,AI,DXF etc. |
Compatible software |
CorelDraw, AutoCAD, Photoshop |
Controlling Mode |
CNC Professional Control System |

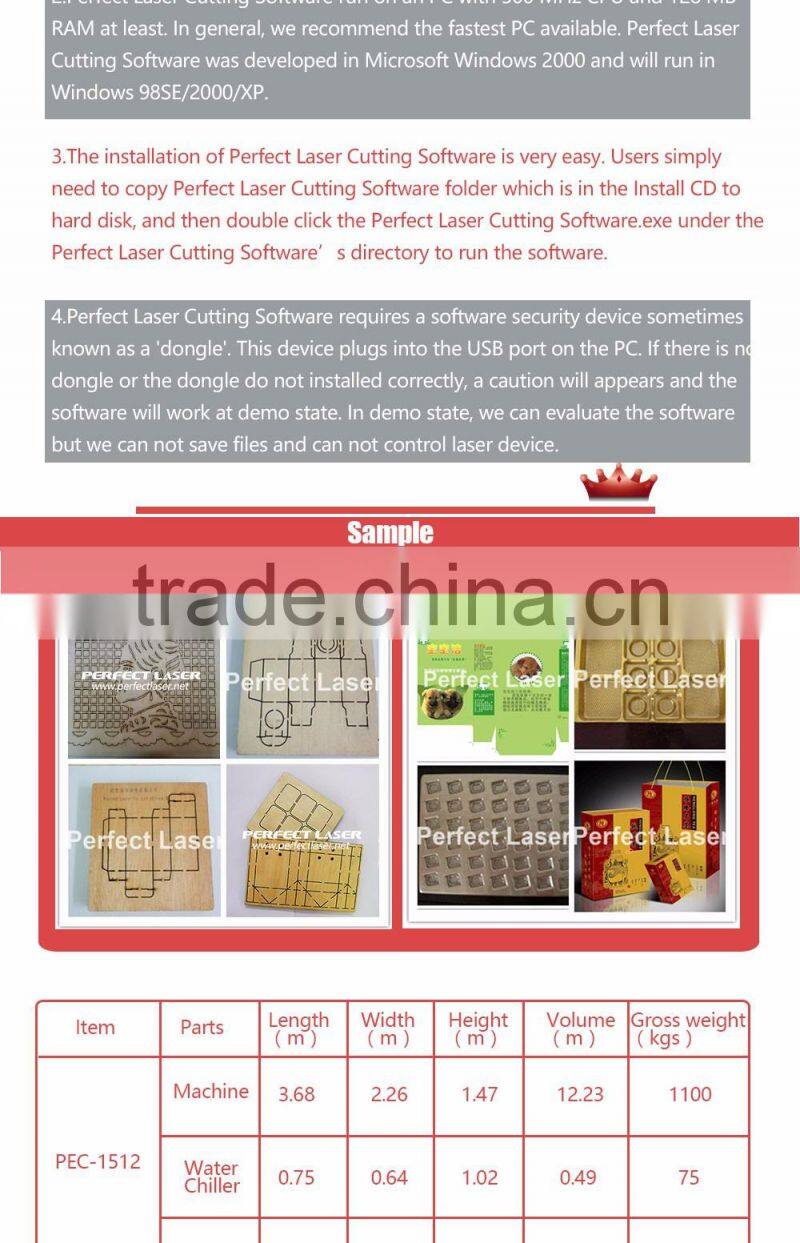

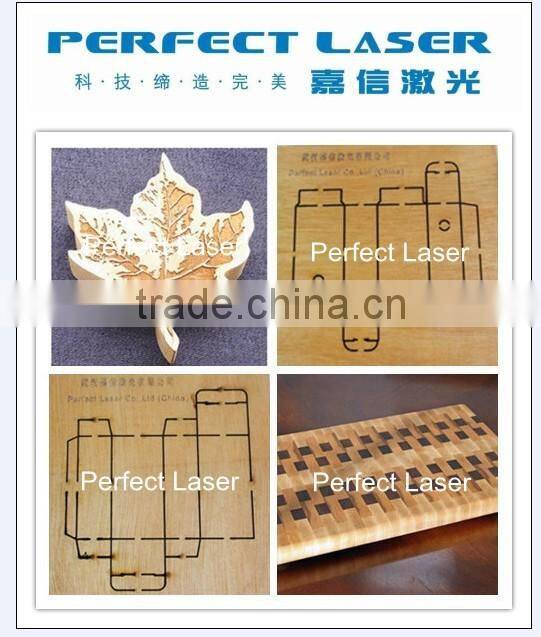

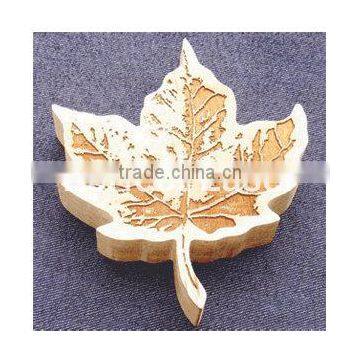

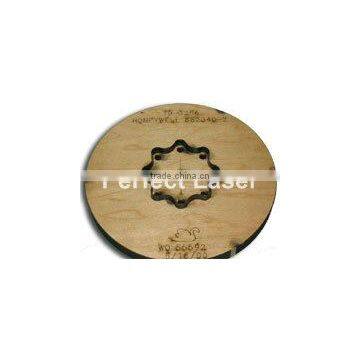

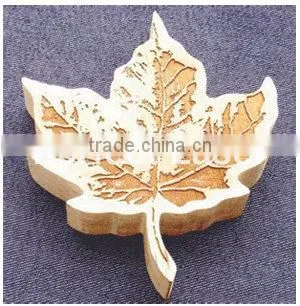

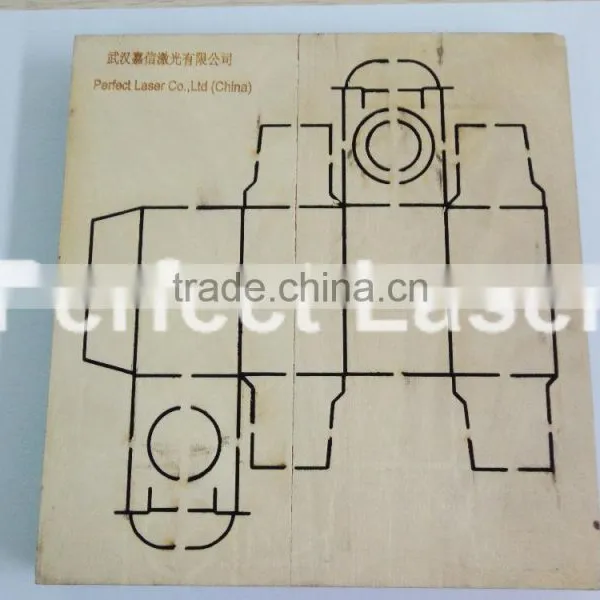

laser die cutting machineMachine's Sample:
About perfect laser company:

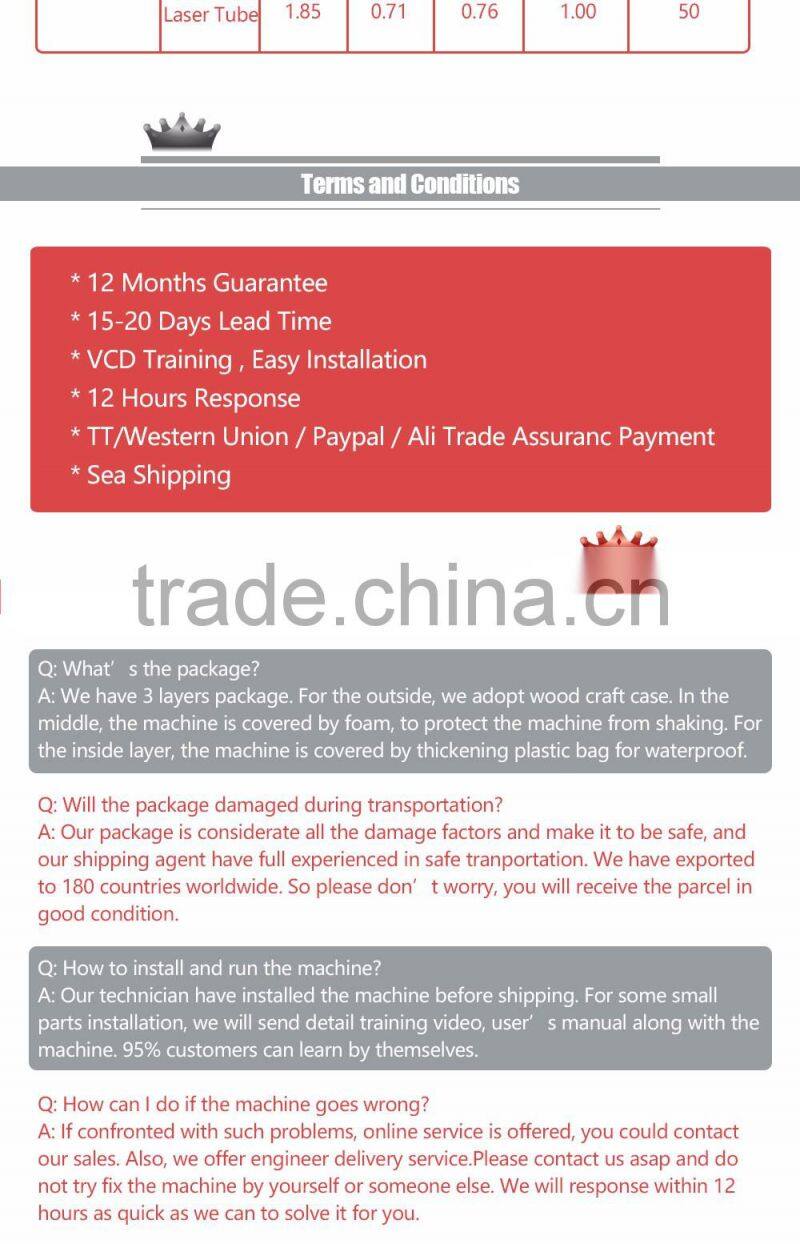

FAQ:
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact –China Perfect Laser!
* The exact material you want to cut? (wood, acrylic, MDF, bamboo etc.)
* The cutting depth on above materials?(max thickness, 1mm, 3 mm, 5 mm, 7 mm, 15 mm, 20mm....)
* The working area you demand? (max dimension of material, width*length, 800^600mm, 1200*1800mm, 1300*2500mm...)
