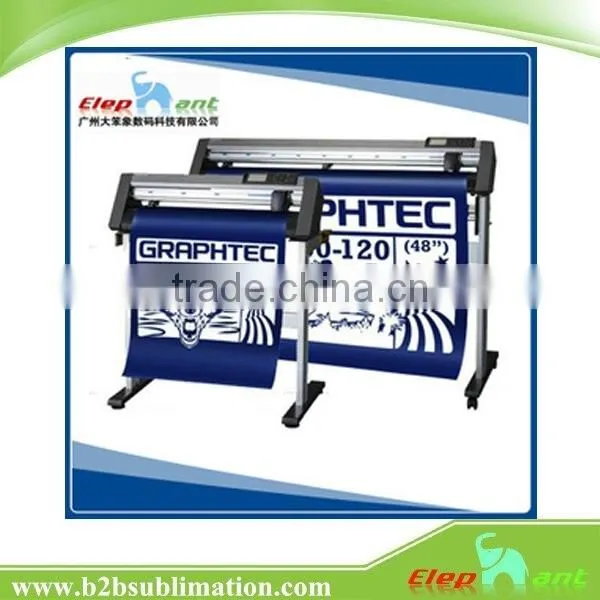

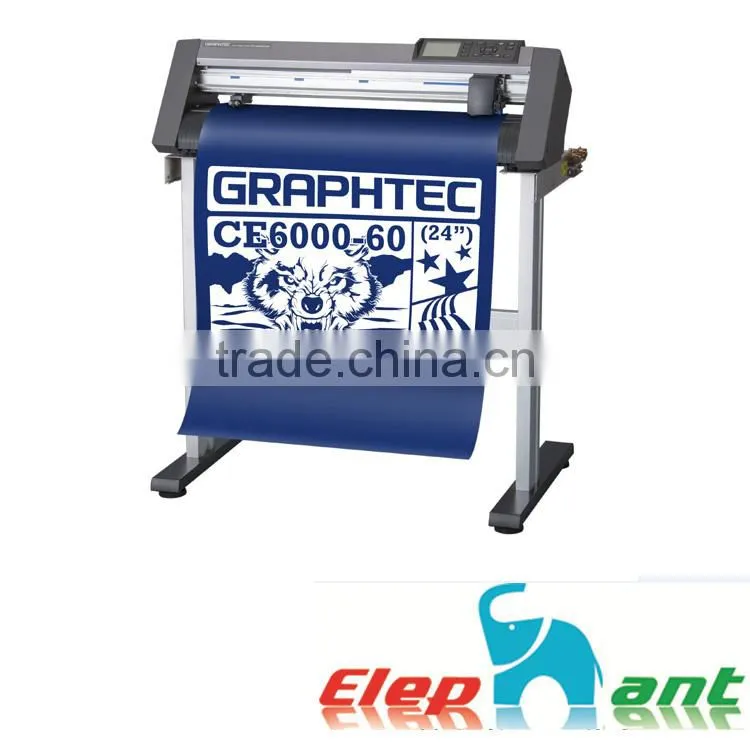

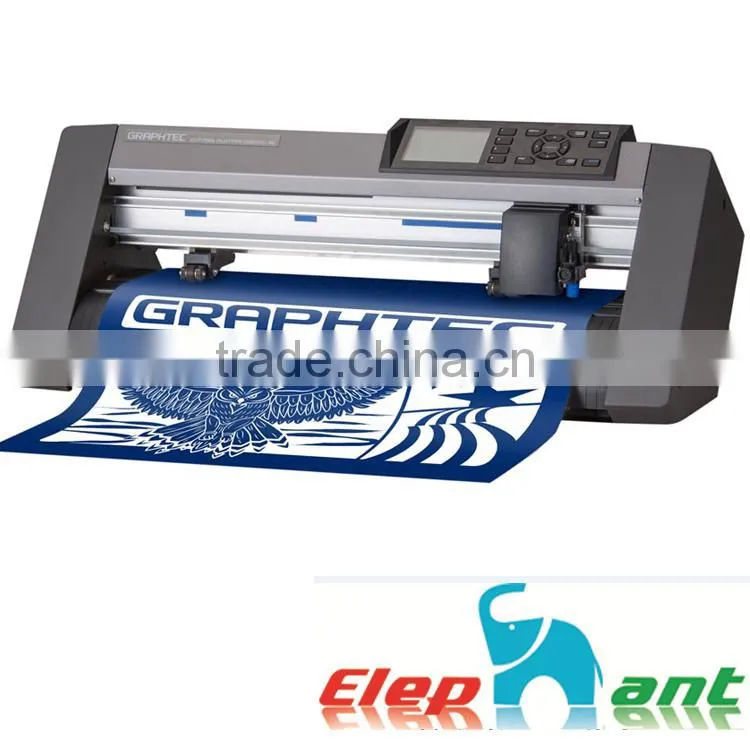

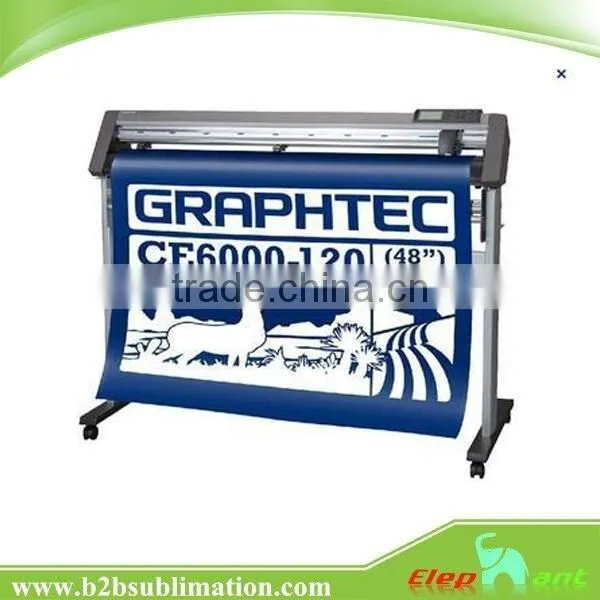

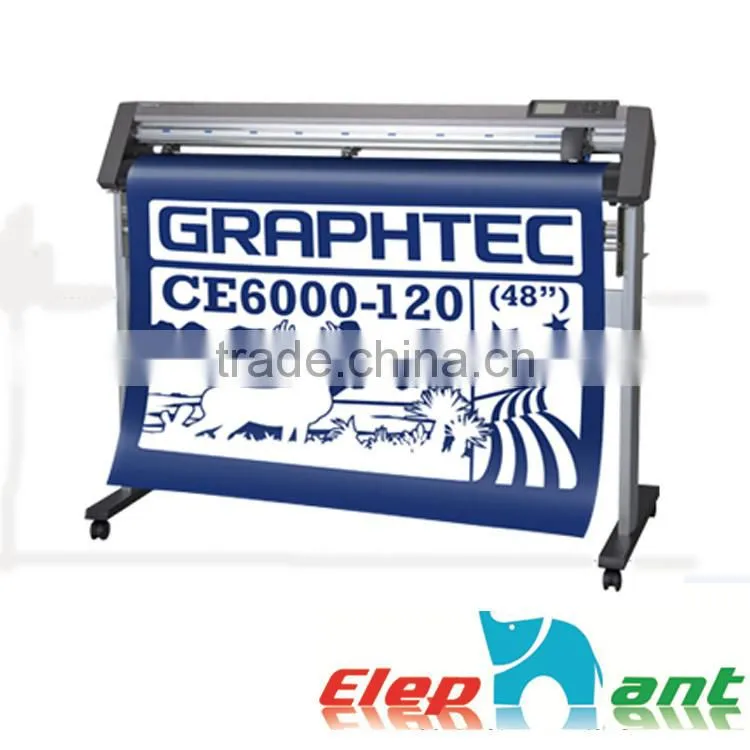

Japan graphtec s cutter vinyl cutting plotter machine
1.Parameters:
| Item | CE5000-60 | ||||||
| CPU | 32-bit CPU | ||||||
| Construction | Microgrit Rollers, Moving Media | ||||||
| Driver systerm | Digital Servo Motor | ||||||
| Max cutting size | 603 mm*50 m (23.7"*164") | ||||||
| Mechanical Resolution range | 584 mm*5 m (23"*16.4") | ||||||
| Min Media width | 50 mm (2") | ||||||
| Max Media width | 712 mm (28") | ||||||
| Max media thickness | 0.25 mm (10 mil) | ||||||
| Max cutting speed | 600 mm/s (24 ips)(In all directions ) | ||||||
| Adjustable cutter pressure |
20-300 gf ( Points 31 level ) | ||||||
| Minimum character matrix |
Max height about 5 mm (0.2") | ||||||
| Mechanical Resolution range | 0.005 mm (0.0002") | ||||||
| Programmable resolution | GP-GLTM:0.1/0.05/0.025/0.01 mm | ||||||
| HP-GL:0.025 mm (0.001") | |||||||
| repeatability precision*1 | 0.1 mm/2 m (0.0039"/80") or better | ||||||
| Can loading pen number |
1 pcs | ||||||
| Compatible cutter type |
Graphtec Supersteel blades, 0.9MM and 1.5mm diameter |
||||||
| Compatible pen type | Graphtec water-based fibe-tip pen | ||||||
| Compatible Media |
Vinyl film, Fluorescent, decal , light reflective (except high luminosity),paint masking, banner, thermal transfer vinyl, flex, flock, ,pu,pvc image transfer media, vinyl print media, etc. |
||||||
| interface |
Serial RS-232C/USB2.0 high speed ,IEEE-1284 Parallel (automatic identification) |
||||||
| Deta Buffer | 2 MB | ||||||
| Comand modes | GP-GLTM/HP-GL(selectable in Command menu) | ||||||
|
the default number of cutting parameters |
8 group, users can set any gronp. | ||||||
| display panel | 16 character* LCD screen | ||||||
| power supply input | 100-120 VAC,220-240 VAC,50/60 Hz | ||||||
| power consumption | Max 70 VA | ||||||
| 10-35 ℃ (50-95 oF),35-75 % RH (not-condensing) | |||||||
|
Recommended Resolution Environment |
16-32 ℃ (60-90 oF),35-70 % RH (not-condensing) | ||||||
| Dimensions W/Stand ( W*D*H) | 851 mm*285 mm*223 mm (33.5"*11.2"*8.7") |
||||||
| Equipment Weight W/stand | 11.2 kg (24.7 lb.) | ||||||
| Accessories Including | power line | 1pc | |||||
| Quick Start Manual | 1pc | ||||||
| Safe use manual | 1pc | ||||||
| User manual disc | 1pc | ||||||
| CB09UA cutter | 1pc | ||||||
| Cutting Master software | 1pc | ||||||
| SATA | 1pc | ||||||
| PHP32-CB09N Blade Holder | 1pc | ||||||
| Windows Drivers | 1pc | ||||||
| CE5000-60 Cutter Holder | 0pc | ||||||
duct show
3.The transfer process
4.the effect
5.What can you do for this machine?
1)you can use the image that our machine transfer print t-shirt or other cloth
2)you can use our machine to make textile,transfers fabric etc and other you wanted cutter plotter
