Hight quality vinyl printer cutting plotter machine wholesale
product description
| Item | CE5000-60 | ||||||
| CPU | 32-bit CPU | ||||||
| Construction | Microgrit Rollers, Moving Media | ||||||
| Driver systerm | Digital Servo Motor | ||||||
| Max cutting size | 635 mm*50 m (23.7"*164") | ||||||
| Mechanical Resolution range | 584 mm*5 m (23"*16.4") | ||||||
| Min Media width | 50 mm (2") | ||||||
| Max Media width | 712 mm (28") | ||||||
| Max media thickness | 0.25 mm (10 mil) | ||||||
| Max cutting speed | 600 mm/s (24 ips)(In all directions ) | ||||||
| Adjustable cutter pressure |
20-300 gf ( Points 31 level ) | ||||||
| Minimum character matrix |
Max height about 5 mm (0.2") | ||||||
| Mechanical Resolution range | 0.005 mm (0.0002") | ||||||
| Programmable resolution | GP-GLTM:0.1/0.05/0.025/0.01 mm | ||||||
| HP-GL:0.025 mm (0.001") | |||||||
| repeatability precision*1 | 0.1 mm/2 m (0.0039"/80") or better | ||||||
| Can loading pen number |
1 pcs | ||||||
| Compatible cutter type |
Graphtec Supersteel blades, 0.9MM and 1.5mm diameter | ||||||
| Compatible pen type | Graphtec water-based fibe-tip pen | ||||||
| Compatible Media | Vinyl film, Fluorescent, decal , light reflective(except high-luminosity),paint masking, banner, thermal transfer vinyl, flex, flock, ,pu,pvc image transfer media, vinyl print media, etc. | ||||||
| interface | Serial RS-232C/USB2.0 high speed ,IEEE-1284 Parallel (automatic identification) | ||||||
| Deta Buffer | 2 MB | ||||||
| Comand modes | GP-GLTM/HP-GL(selectable in Command menu) | ||||||
| the default number of cutting parameters | 8 group, users can set any gronp. | ||||||
| display panel | 16 character* LCD screen | ||||||
| power supply input | 100-120 VAC,220-240 VAC,50/60 Hz | ||||||
| power consumption | Max 70 VA | ||||||
| 10-35 ℃ (50-95 oF),35-75 % RH (not-condensing) | |||||||
| Recommended Resolution Environment | 16-32 ℃ (60-90 oF),35-70 % RH (not-condensing) | ||||||
| Dimensions W/Stand ( W*D*H) | 851 mm*285 mm*223 mm (33.5"*11.2"*8.7") |
||||||
| Equipment Weight W/stand | 11.2 kg (24.7 lb.) | ||||||
| Accessories Including | power line | 1pc | |||||
| Quick Start Manual | 1pc | ||||||
| Safe use manual | 1pc | ||||||
| User manual disc | 1pc | ||||||
| CB09UA cutter | 1pc | ||||||
| Cutting Master software | 1pc | ||||||
| SATA | 1pc | ||||||
| PHP32-CB09N Blade Holder | 1pc | ||||||
| Windows Drivers | 1pc | ||||||
| CE5000-60 Cutter Holder | 0pc | ||||||
We Provide the detail assembling Video for new customer step by step
Using heat transfer machine is a cost-effective,environmentally friendly and durable way to transfer images on textile products
Packaging & Shipping
1. Neutral package/carton package, as your request
2. If you have your own forwarder in China, we can offer Free Delivery for you in Guangzhou City!
3.Our products export all countries.We can according to your request by airmail.
We are the manufacturer of sublimation transfer paper,and mainly produce
sublimation transfer paper and mainly produce,100gsm high speed sublimation transfer paper, 100gsm full sticky/tacky sublimation transfer paper, dark and light t-shirt transfer paper,dye sublimation lik,also sublimation/pigment. And sublimation printer, heat press machine, the printer head, hydraulic pressure double working heat pressure machine, 3D vacuum heat press machine.

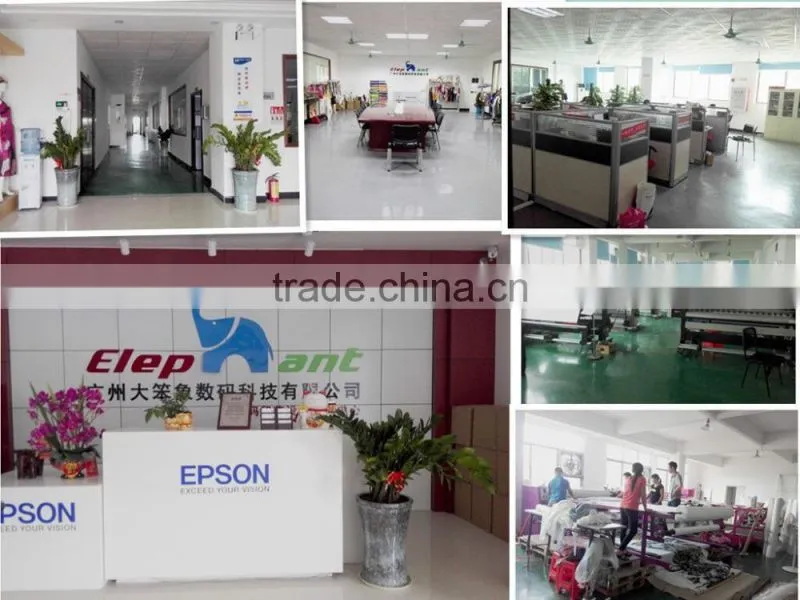

Why partner with Elephant ?
| 1.Ink manufacturer for 10 years ,ink factory of PRINT-RITE ,reliable quality |
| 2.Fast, convenient and professional service contracts |
| 3.We take care of all our new and regular customers, providing satisfactory cooperation. |
| 4.We are flexible and open to suggestions and needs of our customers. |
So DON`T hesitate anymore......
Hurry up to contact us get our competitive price!
