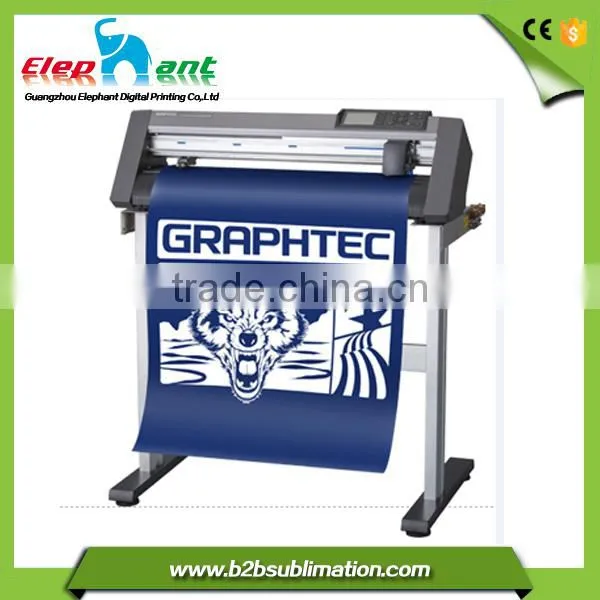

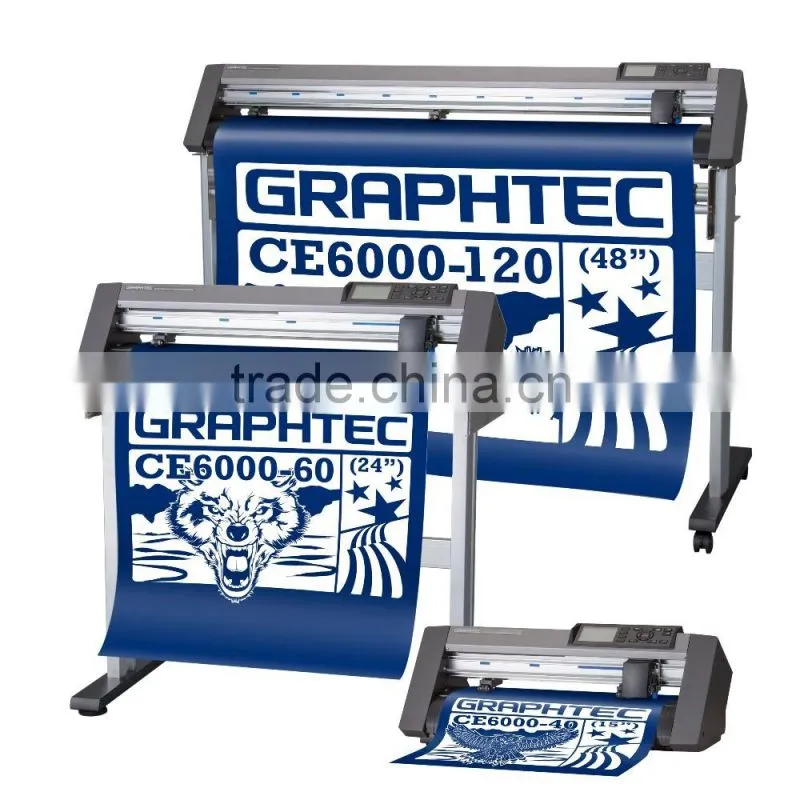

Graphtec CE6000-60 vinyl cutting plotter for sale
Product Description:

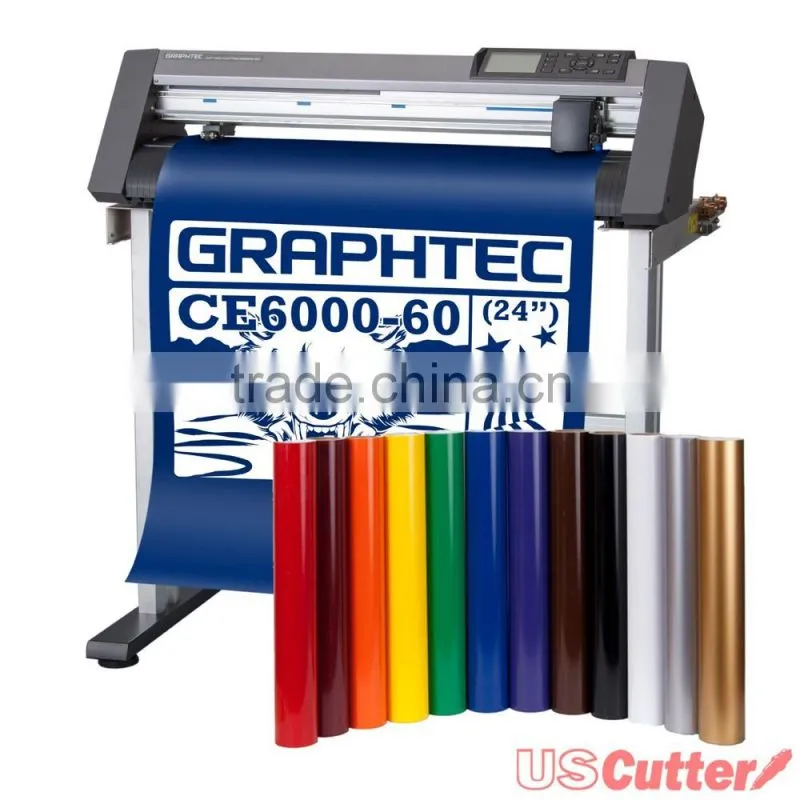

The new Graphtec CE6000 offers outstanding and professional performance at a reasonable cost and moves the cutting capabilities of the CE series nearer to those of Graphtec GB's flagship FC8000 series but without the need for a huge additional investment. The CE6000 series delivers a maximum cutting force of 300 grams and an improved maximum speed of 35.4 inches per second (in all directions). The front control panel provides complete parameter control including eight preset cutting conditions, as well as advanced features like tangential control mode, down force offset, pen up speed, blade wear monitoring and more. With a 25 pin Serial or USB 2.0 plugin, the CE6000 is compatible with legacy computer systems as well as the latest PCs and for several years to come. It comes with a stand. BONUS: GreenStar Sign Vinyl 12-Color Starter Pack, 24" x 5 Yard Rolls - GreenStar Intermediate Performance Vinyl (IPV) is a 5-year, calendered vinyl, custom formulated for basic sign use. All colors come in a high gloss finish. Colors: White, Black, Bubblegum, Sunflower Yellow, Real Red, Green, Sapphire Blue, Orange, Lime-tree Green, Merlot, Silver, Gold.
Specifications:
| Item | CE6000-40 | CE6000-60 | CE6000-120 | CE6000-120-AMO |
| CPU | 32-bit CPU | |||
| Original Japan graphtec CE6000 cutting plotter | ||||
| Configuration | Grit rolling type, digital servo drive | |||
| Max. cutting area | 375 mm x 50 m *1 | 603 mm x 50 m *1 | 1213 mm x 50 m *1 | |
| (Guaranteed cutting area) | (356 mm x 2 m *1) | (584 mm x 5 m *1) | (1194 mm x 5 m *1) | |
| Mark scanning margin | Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm | |||
| Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m) | ||||
| Number of push roller | 2 rollers | 2 rollers | 3 rollers | 4 rollers |
| Max. cutting speed | 600 mm/s (All directions) | 900 mm/s (at 45º direction) | 1000 mm/s (at 45º direction) | |
| Max. acceleration | 21.2 m/s2 (at 45º direction) | 13.9 m/s2 (at 45º direction) | ||
| Max. cutting force | 2.94 N (300 gf) in 31 steps | 4.41 N (450 gf) in 38 steps | 4.41 N (450 gf) in 38 steps | |
| (Instantaneous max. force) | (3.2 N (330 gf)) | (4.9 N (500 gf)) | (4.9 N (500 gf)) | |
| Minimum character size | Approx. 5 mm alphanumeric (varies depending on character font and type of media) | |||
| Repeatability | Max. 0.1 mm in plot up to 2 m *1 | |||
| Mountable number of tools | 1 tool | |||
| Blade type | Supersteel | |||
| Pen type | Oil-based ballpoint, Water-based fiber-tip pen | |||
| Media type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness | |||
| Polyester film, up to 0.25mm thickness (unguaranteed accuracy) | ||||
| Perforation cutting | Yes (performed by force control) | |||
| Interface | RS-232C / USB2.0 (Full Speed) | |||
| Buffer memory | 2 MB | |||
| Command sets | GP-GL / HP-GL™ emulation (Set by the menu or the command, and selects from GP-GL, HP-GL™, or Auto detect) | |||
| Display | Graphic type LCD with backlight (240dots x 128dots) | |||
| Registration mark sensing system | Scans the mark by optical sensor (ARMS5.0) | |||
| Power source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz | |||
| Power consumption | 120 VA | |||
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | |||
| (Guaranteed accuracy) | (16 to 32 ºC, 35 to 70 % R.H. (non-condensing)) | |||
| External dimensions (W x D x H, Approx. [mm]) | 672 x 338 x 266 | 900 x 593 x 1046 | 1541 x 736 x 1250 | |
| Weight | 10.5 kg | 21 kg (including stand) | 40.5 kg (including stand) | |
| Included software *2 | Windows Driver, Graphtec Studio, Cutting Master 3, Plotter Controller | |||
| Compatible OS *2 | Windows 8 / 7 / Vista / XP, Mac OS 10.5.8 to 10.8 | |||
| Compatible Standards |
Safety: cUL / CE mark, EMC: VCCI Class A / FCC Class A / EN55022 Class A |
|||

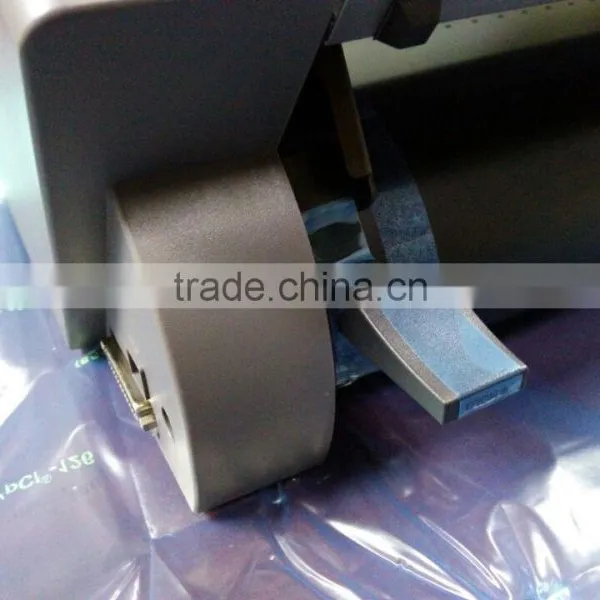

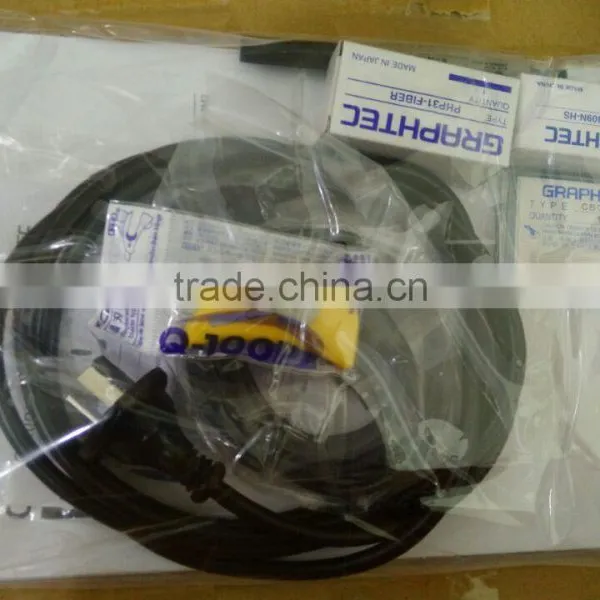

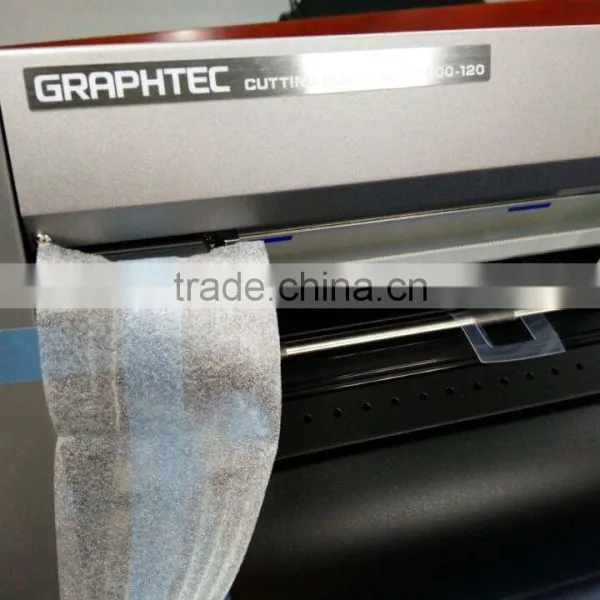

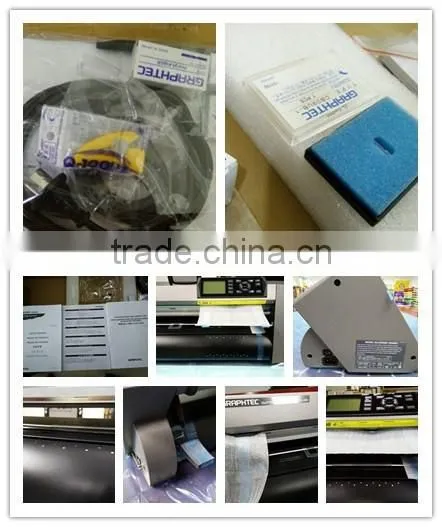

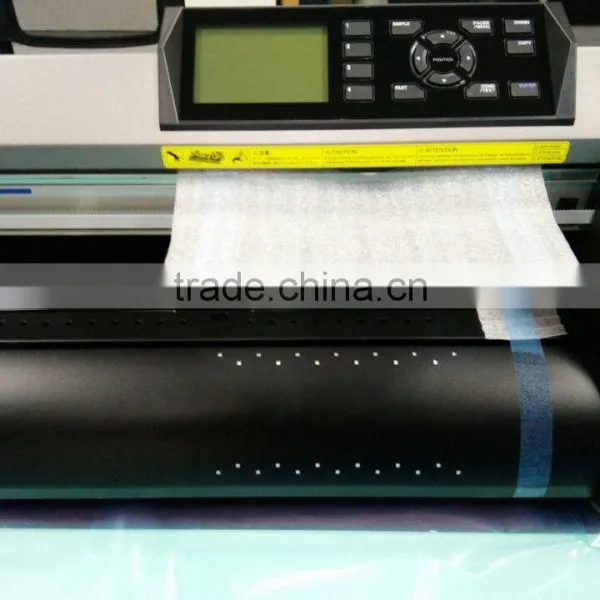

Product shows:
Features:
- Contour Cut Pre-Printed Graphics
- Managing your jobs is simpler than ever with a new larger LCD & Control Panel
- Includes: ROBO Master software, Cutting Master Plug-in, & Graphtec's ARMS system
- USB 2.0 / Serial RS0-232C interface
- 2 year warranty, Free lifetime phone support

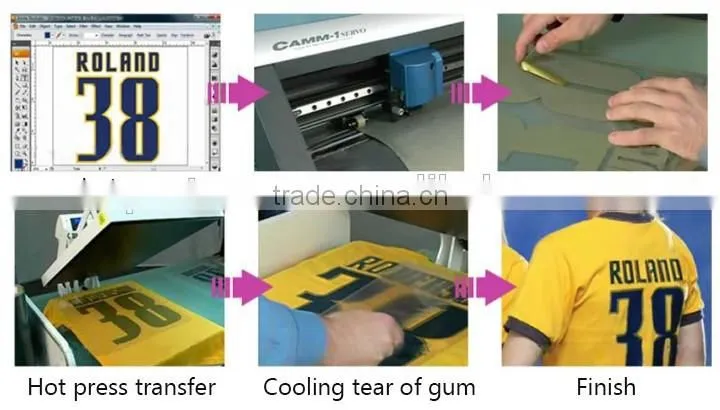

Vinyl cutting process:
Product applications:
Details

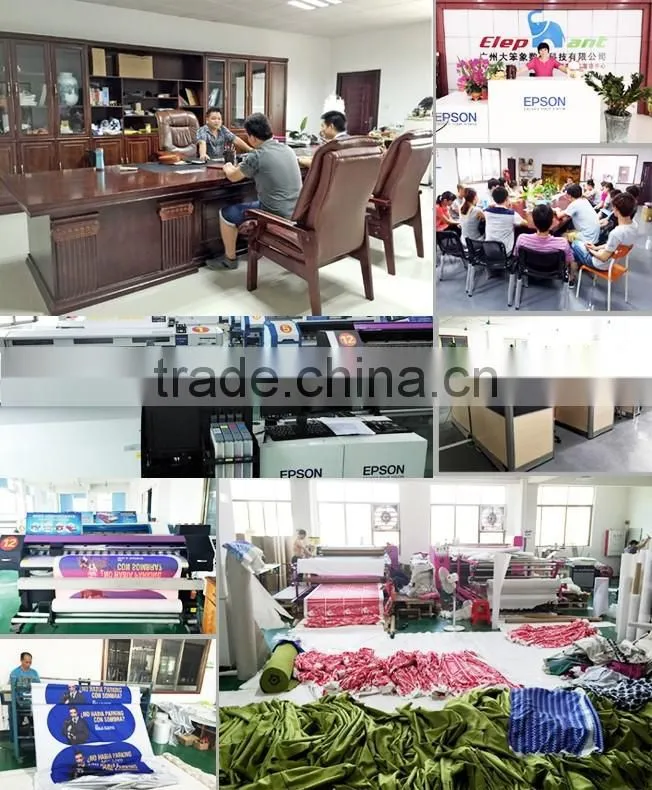

Company information:
