RF Coaxial N Male Connector For feeder cable clamp rf connector
Description:
Name |
Lightning Arrester |
Brand Name |
Maxdao |
Place of Origin |
Jiangsu, China (Mainland) |
Material |
Stainless steel |
OEM |
Available |
Samples |
Samples are free. |
Broadband 1/4-Wave Stub Surge Protector/Lightning Arrestor
Our Broadband 1/4-Wave Stub is for use from 800 to 2200 MHz in the transmit and receive paths. These protectors offer multi-strike protection within the given bandwidth. This product is currently supplied with 7/16 DIN & N-Type male and female connectors, but other connector interfaces are available.
Gas Discharge Surge Protector/Lightning Arrestor
Our Gas Discharge Protectors are rated from DC to 2200 MHz and have limited-strike capacity. This product is currently supplied with 7/16 DIN male and female connectors, but other connector interfaces are available.
Hybrid Lightning Arrestor
This arrestor combines the DC pass-through abilities of the Gas Discharge Protector with the multi-strike capability of the 1/4-Wave Stub. Our hybrid is the correct choice for shared tower/antenna applications.
NOTE!
• Lightning Arresters can be supplied with grounding hardware
• WiMax Surge Protector/Lightning Arrestor also available
• Customised options available
Features&Benefits
1/4 Wave Stub |
Gas Tube |
Hybrid |
|
•800–2200MHz bandwidth • Multi-strike protection • Maintenance free
|
•DC–2500 Mhz bandwidth •DC pass-through for GPS tower-mount • Serviceable chamber
|
•DC– 2500 Mhz bandwidth • Multi-strike protection • DC pass-through
|
Specifications:
Electrical |
1/4Wave Stub |
Gas Tube |
Hybrid |
Impedance |
50Ω |
50Ω |
50Ω |
Frequency Range |
800 - 2200MHz |
DC-2500MHz |
DC-2500MHz |
Insertion Loss(dB) |
<0.1 |
<0.1 |
≤0.15 |
Return Loss(dB) |
≥24(824-894MHz) |
≥26.44(1000MHz) |
≥23.13 |
≥24(1850-2200MHz) |
≥23(1000-2000MHz) |
|
|
≥18(rest of band) |
|
|
|
Avg.Continuous Power(Watts) |
500 |
150 |
300 |
Surge Rating |
40kA |
20kA |
20kA |
|
PIM (dBc) 3rd order (two 43 dbm signals) |
≥150dBc (3rd order) |
|
≥160 dBc |
≥173dBc (5th order) |
|
|
|
Mechanical |
1/4Wave Stub |
Gas Tube |
Hybrid |
Retention |
≥5.88 N |
≥5.88 N |
≥5.88 N |
Nut Torque |
20 Nm |
10 Nm |
20 Nm |
Mechanical Wear(hypo-) |
500 |
500 |
500 |
Vibration |
IEC68-2-6Fc |
IEC68-2-6Fc |
IEC68-2-6Fc |
Materials/Plating |
1/4Wave Stub |
Gas Tube |
Hybrid |
Outer Conductor |
Low Magnetism Brass/Copper Tin-Zinc >2μm |
||
Inner Conductor |
CuBe2/Ag >5μm |
||
Nut |
Brass/Nickel>5μm |
Brass/Nickel>5μm |
Brass/Copper Tin-Zinc>5μm |
Insulator |
PTFE |
||
Gasket |
Silicon Rubber |
Brass/Copper Tin-Zinc>5μm |
|
Environmental |
1/4Wave Stub |
Gas Tube |
Hybrid |
Temperature Range |
-55°C ~ +155°C |
-55°C ~ +155°C |
-40°C ~+85°C |
Weather Standard |
IEC 68 55/155/21 |
IEC 68 55/155/56 |
IEC 68 40/085/21 |
Weatherproofing Standard |
IP67 |
IP67 |
IP65 |
Applications:
• Various transmit-receive system of RF signal
• Network signal wireless emission and interface device
• Industrial control signal wireless transmit-receive equipment
• Satellite television (SATV) receiving equipment
• Surveillance signal wireless transmit-receive equipment
• Other wireless communication equipment
• Other radio-frequency signal equipment

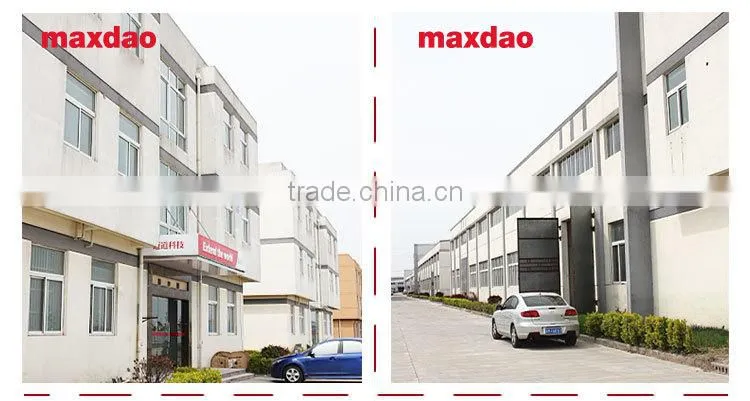

Company Overview:
1.Maxdao Limited started the telecom business in 2003.
2.Maxdao now has a plant area over 4,000sqm and 136 workers specialized in the designing and manufacturing.
3.Maxdao is a professional manufacturer and has ten years experience in this industry.
4.Maxdao has ISO 9001:2008 certification, sophisticated manufacturing line and strict quality control system.

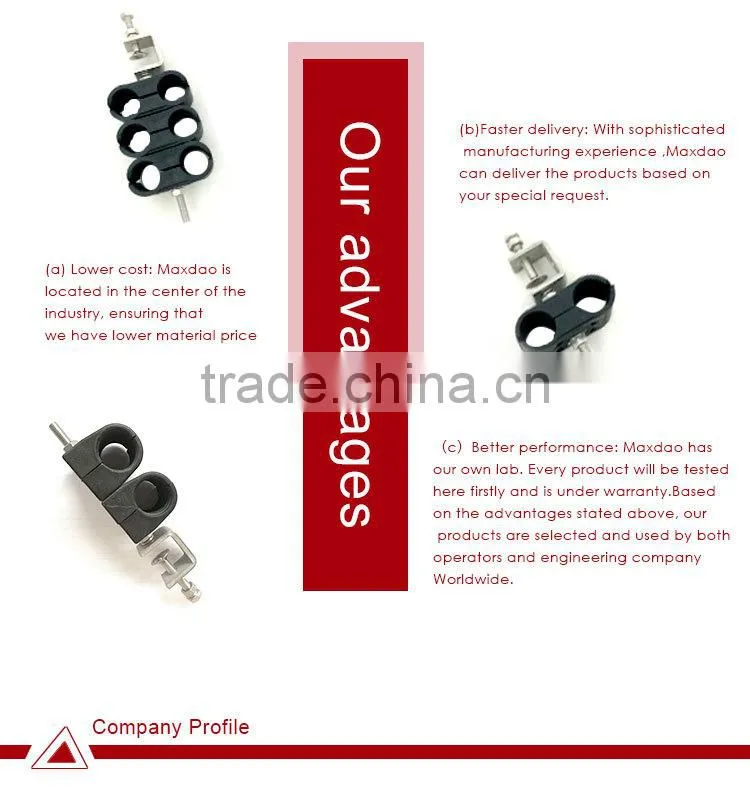

Comparing with some other suppliers, Maxdao has advantages in 3 aspects:
(a) Lower cost: Maxdao is located in the center of the industry, ensuring that we have lower material price and skilled workers with highly efficient production.
(b) Faster delivery: With the help of Howell and cooperation with different forwarders, Maxdao can deliver the products based on your special request.
(c) Better performance: Maxdao has our own lab. Every product will be tested here firstly and is under warranty.
Trade Information:
Trade terms |
FOB,CIF,EXW.etc. |
Min.Order Quantity |
100 Unit/Units |
Supply Ability |
10000 Unit/Units per Week |
Port |
Shanghai |
Delivery |
5-10 working days |
Payment |
L/C,T/T,Western Union |
Payment condition |
30% advanced,70% after delivery |
Our Service:
1.On behalf of the consumer installation, commissioning products;
2.According to consumer requirements, technical guidance on the use of other aspects;
3.To ensure the supply of maintenance spare parts;
4.Responsible for the maintenance services, and provide regular maintenance, periodic maintenance;
5.To provide consumers with regular telephone interviews;
6.The handling of consumer complaints letters and visits and telephone advice, answer consumer advice. While a variety of ways to collect consumer opinions on the quality of products, and timely improvements under the circumstances.
Material
|
Taizhou Maxdao Limited is a leading manufacturer of transmission line systems. We started the telecom business in 2003. After years of efforts, we have developed a plant area of 65,000sqm and has 136 workers specialized in the design, manufacture and integration of transmission line systems for telecom & power. |
Our products are ISO2001:9008 certified,including coaxial connectors& adapters jumpers, cable clamps, RF lightning protectors, grounding kits, grounding bars, cable entry, hoisting grips, weatherproofing kits, DC blocks,preformed wires, suspension clamps, connective rods etc. |
Based on the advantages stated above, our products are selected and used by both operators & engineering company worldwide, covering Europe, Asia and the Middle East. |
