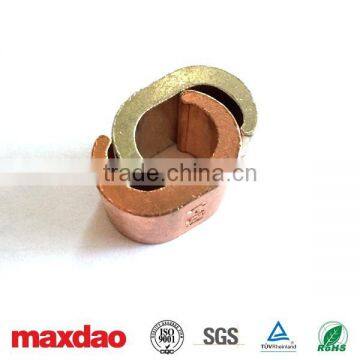

copper connector c-clamp head clamp holder
C clamp is used as wire or cable joint, made of the copper material low resistivity is good electrical conductivity & corrosion resistance.
| Technical Data | ||||||||
| General specifications | Environment Temperature | -40℃-80℃ | ||||||
| Application | Easy Installation | |||||||
| Material | Copper or Tinned Copper | |||||||

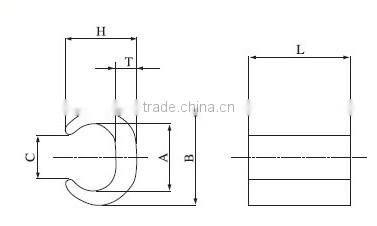

| Type | Total area of copper wire(mm2) | Main dimensions(mm) | |||||
| B | A | H | L | C | T | ||
| CCT-10 | 7.5-14 | 9.5 | 6.3 | 6.2 | 12 | 4 | 1.6 |
| CCT-16 | 14.5-16 | 11.8 | 7.8 | 7.8 | 13 | 5 | 2 |
| CCT-20 | 16.5-20 | 12.8 | 8.6 | 9.7 | 13 | 5.4 | 2.9 |
| CCT-26 | 21-26 | 14.7 | 10.2 | 10 | 16 | 6.5 | 3.2 |
| CCT-44 | 27-44 | 19 | 13.4 | 14.4 | 20 | 8.5 | 4 |
| CCT-60 | 45-60 | 21 | 15.4 | 15.4 | 22 | 9.7 | 4 |
| CCT-76 | 61-76 | 24.4 | 17.3 | 17.6 | 22 | 10.8 | 5 |
| CCT-98 | 77-98 | 27.8 | 20.8 | 18.8 | 25 | 12.8 | 5 |
| CCT-122 | 99-122 | 29.8 | 22.1 | 21.2 | 26 | 13.5 | 5.5 |
| CCT-154 | 123-154 | 34 | 25.7 | 24.4 | 28 | 17 | 6 |
| CCT-190 | 155-190 | 37 | 28.5 | 25.4 | 35 | 17.4 | 6 |
| CCT-240 | 191-240 | 40 | 30.2 | 28.5 | 40 | 19 | 7 |
| CCT-288 | 241-288 | 44.5 | 34.7 | 34.1 | 45 | 22.3 | 7 |
| CCT-365 | 289-265 | 47.5 | 37.7 | 34 | 50 | 24.8 | 7 |
| CCT-450 | 366-450 | 57 | 42.5 | 41 | 60 | 28 | 10 |
| CCT-560 | 451-560 | 62 | 46 | 44 | 65 | 31 | 11 |
| CCT-700 | 561-700 | 68 | 54 | 49.5 | 70 | 44 | 12 |
Trade information
Trade terms |
FOB ,CIF ,EXW etc |
Payment |
T/T ,L/C ,D/A ,D/P ,Western union ,Money gram |
Payment condition |
30% advanced,70% after delivery. |
Delivery time |
5-15 working days |

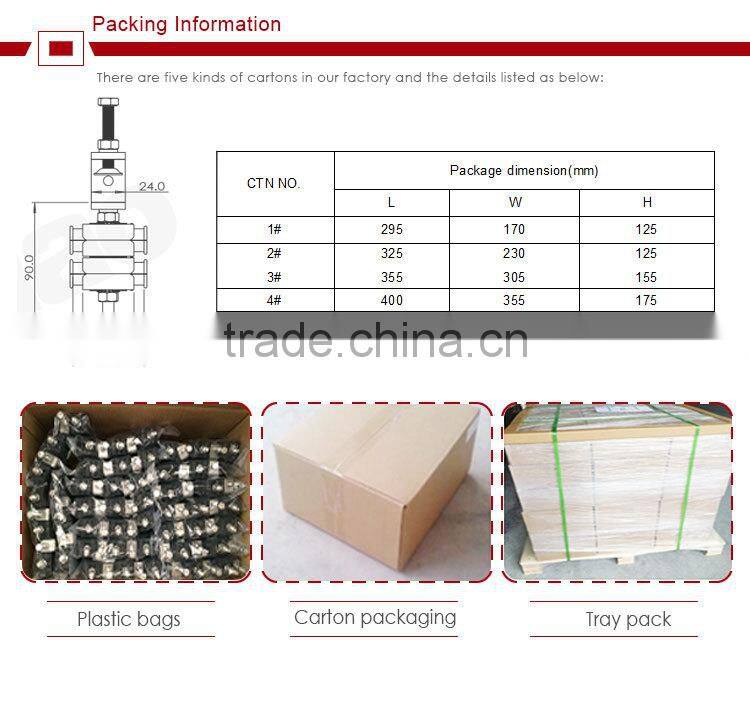

Packing |
Standard export carton and pallet. |
Shipping |
By air ,sea and express delivery |
Port |
Shanghai |

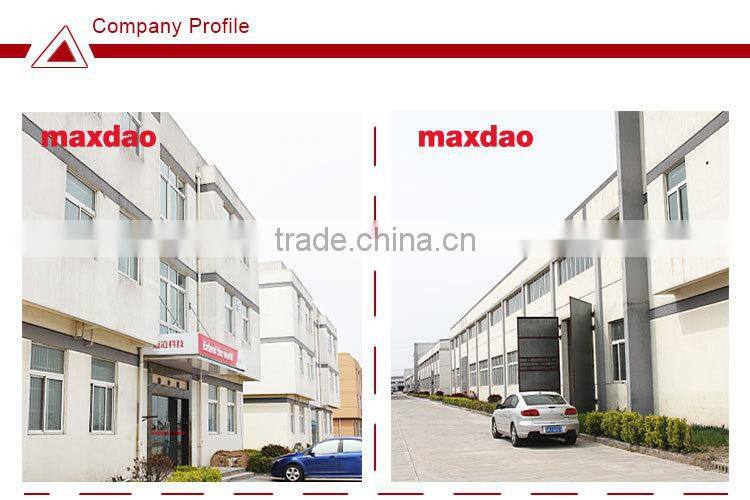

Taizhou Maxdao Limited is a leading manufacturer of transmission line systems. We started the telecom business in
2003.After years of efforts, we have developed a plant area of 65,000sqm and has 136 workers
specialized in the design,manufacture and integration of transmission line systems for telecom & power.
Our products are ISO2001:9008 certified,including coaxial connectors& adapters jumpers, cable clamps,
RF lightning protectors, grounding kits, grounding bars, cable entry, hoisting grips, weatherproofing kits,
DC blocks,preformed wires, suspension clamps, connective rods etc.
Based on the advantages stated above, our products are selected and used by both operators & engineering
company worldwide, covering Europe, Asia and the Middle East.
