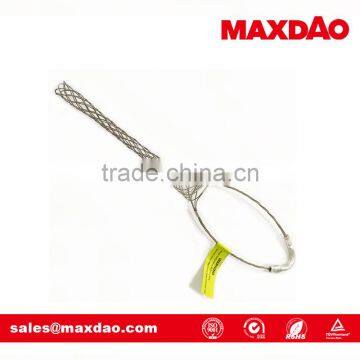

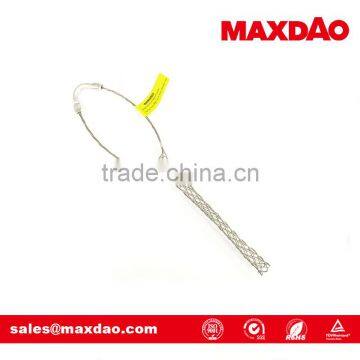

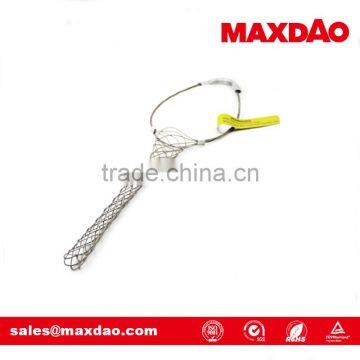

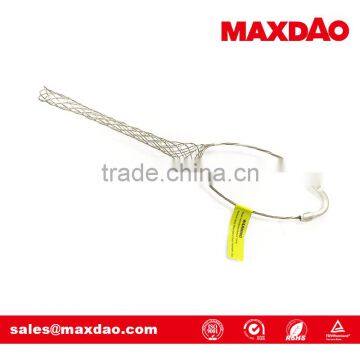

Help CenterSs304 Close Weave Hoisting Grip
US$ 2 - 8
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Maxdao
Model Number:
Pre laced hoisting grip
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1/2" Lace-up Sling Grip in Coaxial CableUS$ 2 - 8MOQ: 1 Piece -
Coaxial Cable 1-1/4" Pre-laced Mesh GripUS$ 2 - 8MOQ: 1 Piece
-
Lace-up Mesh Grip for 1-1/4 in Coaxial CableUS$ 2 - 8MOQ: 1 Piece
-
Support for 7/8",1-1/4",1-5/8" RF Cable Hoisting GripUS$ 2 - 8MOQ: 1 Piece
-
5/8" Stainless Steel Closed Weave Hoisting GripsUS$ 2 - 8MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
Maxdao
Model Number
Pre laced hoisting grip
Hot Sale
Product Description

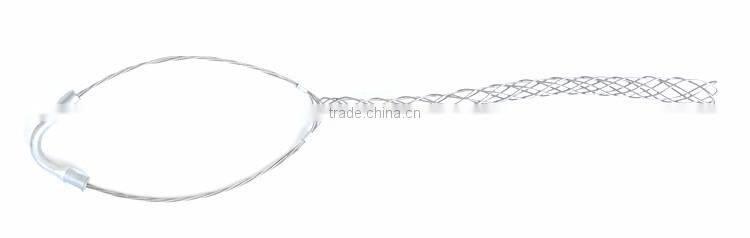

| Pre-laced (closed weave) hoisting grips |
| · Pre-laced hoisting grips is type of hoisting grips with closed weave design which simplifies the installation than traditional open weave, lace-up type grips. |
| · The closed weave design allows the hoisting grips slip over a un-terminated end of cable of coaxial cable,elliptical waveguide,hybrid (FiberFeed,Hybriflex) or fiber cable... |
| · The grip securely tightens being pulled,and offer a effective method to hoist the cable in position and can provide support once the cable in place. |
| · Our pre-laced hoisting grips include a support clamp to provide additional support both during and after installation. |
| · Made of stainless steel 304 wire |
| · All sizes optimized for a cable range |
| · All sizes tested according to strict standard |
| · Additional support clamp provide additional support |
| Product line | Cable grips |
| Product type | Pre-laced (close weave) hoisting grips |
| For cable type | Coaxial,elliptical waveguide hybrid (FiberFeed,Hybriflex) or fiber cable |
| Size | 1/4, 3/8, 1/2, 5/8, 7/8, 1-1/4, 1-5/8, 2-1/4, 3, 4, 5 in or any other sizes |
| Number of cables | 1 cable |
| Material | Stainless steel 304 wire |
| Part number | Description |
| HG14PL | Pre-laced hoisting grips for 1/4’’ cable,min diameter 6mm |
| HG38PL | Pre-laced hoisting grips for 3/8’’ cable,min diameter 8.38mm |
| HG12PL | Pre-laced hoisting grips for 1/2’’ cable,min diameter 12.7mm |
| HG58PL | Pre-laced hoisting grips for 5/8’’ cable,min diameter 19mm |
| HG78PL | Pre-laced hoisting grips for 7/8’’ cable,min diameter 25.4mm |
| HG114PL | Pre-laced hoisting grips for 1-1/4’’ cable,min diameter 31.75mm |
| HG158PL | Pre-laced hoisting grips for 1-5/8’’ cable,min diameter 45mm |
| HG214PL | Pre-laced hoisting grips for 2-1/4’’ cable,min diameter 50mm |
| HG3PL | Pre-laced hoisting grips for 3 in cable |
| HG4PL | Pre-laced hoisting grips for 4 in cable |
| HG5PL | Pre-laced hoisting grips for 5 in cable |
Performance Test
Trade Assurance
Trade Information
| Trade terms | CIF, DDU, EX-WORKS |
| Payment terms | T/T, L/C, Negotiable |
| MOQ | 1 |
| Supply capability | 10000 pieces per month |
| Lead time | 3-15 days |
| Shipment | Sea, Air, Express |
| Port | Shanghai, Ningbo, Shenzhen |
| Sample availability | Yes |
| Sample time | 3-5 days |
| Packaging | Plastic bag, Carton, Pallet |
