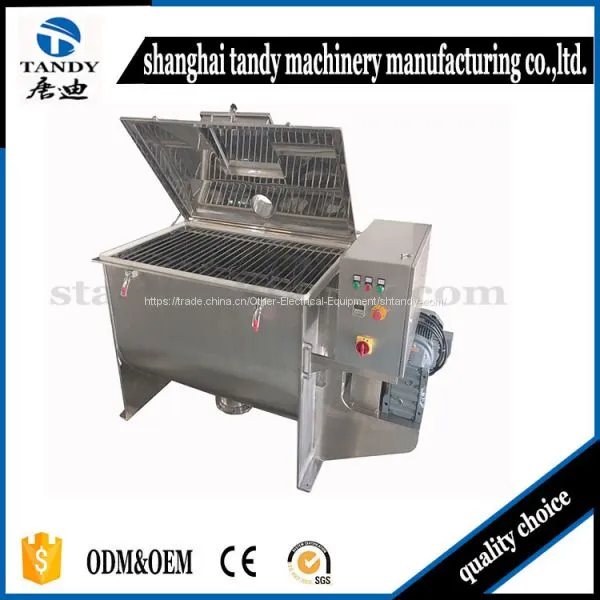

TDL horizontal ribbon mixer is used for application to, power and power; granule and granule; powder and a few liquid mixing; it is widely used in food, chemical industry, pharmaceutics, feedstuff, plastic, building material and so on; Customizing according to client’s specific requirement, it can be from 304,316L,321 and carbon steel etc. it can be according to GMP standard, too.
1. wide application for mixing material, for paste mixing even; keep granule mixing intact.
2. material proportion different 1:1000 ~10000 perfectly mixing;
3. Customizing according to client’s requirement such as hotting Cooling, pression, vacuum ect.
Reference parameter of ribbon mixer:
| Type | Volume(L) | Coefficient | Power(KW) | Rotate speed(R/min) | Size(mm) | Weight |
| TDL-200 | 200 | 0.4-0.6 | 4 | 53 | 2020X630X1700 | 300 |
| TDL-300 | 300 | 0.4-0.6 | 5.5 | 53 | 2300X700X1780 | 420 |
| TDL-500 | 500 | 0.4-0.6 | 7.5 | 45 | 2600X840X1850 | 600 |
| TDL-1000 | 1000 | 0.4-0.6 | 11 | 45 | 2930X990X2000 | 880 |
| TDL-1500 | 1500 | 0.4-0.6 | 15 | 39 | 3280X1070X2150 | 1260 |
| TDL-2000 | 2000 | 0.4-0.6 | 18.5 | 39 | 3620X1180X2320 | 1750 |
| If you need more technical parameters, please contact us. | ||||||
Discharge Mode:
Flap valve:
Advantage:can avoid discharge port mixing uneven etc problems.Disadvantage: leakproofness is inferior to butterfly bamper. butterfly bamper:Advantage: leakproofness well
Disadvantage:discharge port mixing uneven problem
Ribbon mixer detail picture:

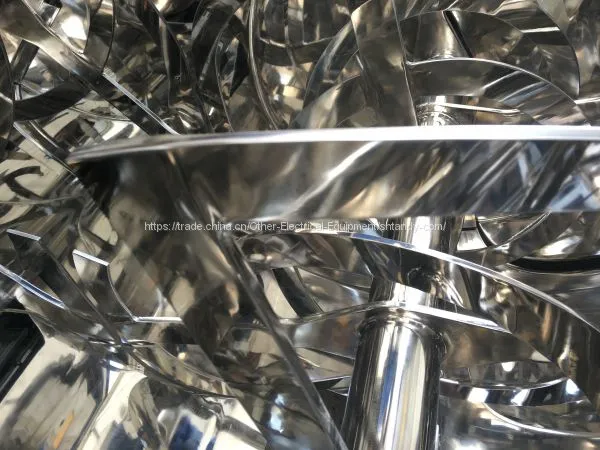

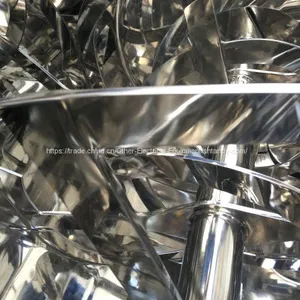

Inside of ribbon mixer is full mirrior polishing and spot welding
Application:
The ribbon mixer is widely apply in mixing powder and powder,geanule and granule and a bit liquid.it is used for food,chemical,pesticide,feeding stuff etc.
Principle of working:
TDL horizontal ribbon mixer consists of a mixing storage, helix blades and transmission parts. There is two tiers or three tiers of ribbon blender axis in the mixing container. The principle of working as below:
1.The outer helix will move the material from its two sides to the central part,
2. The inner helix will transfer the material to the two sides, performing convection mixing.
3. There is discharge exit on the centre of the u container bottom of mixer; The outer helix match with main helix make the materials to center exit discharging; it make u container no leftover in u container.
Shanghai Tandy Machinery Manufacturing Co.Ltd. is devoted in machine manufacture;we are specialized in development,production and related service for mixer blender,conveyor equipment,dust precipitation and so on.We derive advanced technology both at home and abroad,realize the innovation and breakthrough in technology;our products are widely application in industry of food,chemical,pesticide,dyestuff,metallurgy,feedingstuff etc.We adhere to"trust,quality,overstep"corporation culture,would like to grow up together with customers and partners to make concerted efforts,common development.
If you want send inquiry about check weigher,could you please us:
1.material name or specific gravity
2.each batch mixing weight
3.material feature(powder or granule)
Then our communcation will be more efficient.
