TDL horizontal ribbon mixer is used for application to, power and power; granule and granule; powder and a few liquid mixing; it is widely used in food, chemical industry, pharmaceutics, feedstuff, plastic, building material and so on; Customizing according to client’s specific requirement, it can be from 304,316L,321 and carbon steel etc. it can be according to GMP standard, too.
1. wide application for mixing material, for paste mixing even; keep granule mixing intact.
2. material proportion different 1:1000 ~10000 perfectly mixing;
3. Customizing according to client’s requirement such as hotting Cooling, pression, vacuum ect.
Reference parameter of ribbon mixer:
| Type | Volume(L) | Coefficient | Power(KW) | Rotate speed(R/min) | Size(mm) | Weight |
| TDL-200 | 200 | 0.4-0.6 | 4 | 53 | 2020X630X1700 | 300 |
| TDL-300 | 300 | 0.4-0.6 | 5.5 | 53 | 2300X700X1780 | 420 |
| TDL-500 | 500 | 0.4-0.6 | 7.5 | 45 | 2600X840X1850 | 600 |
| TDL-1000 | 1000 | 0.4-0.6 | 11 | 45 | 2930X990X2000 | 880 |
| TDL-1500 | 1500 | 0.4-0.6 | 15 | 39 | 3280X1070X2150 | 1260 |
| TDL-2000 | 2000 | 0.4-0.6 | 18.5 | 39 | 3620X1180X2320 | 1750 |
| If you need more technical parameters, please contact us. | ||||||
Discharge Mode:
Flap valve:
Advantage:can avoid discharge port mixing uneven etc problems.Disadvantage: leakproofness is inferior to butterfly bamper. butterfly bamper:Advantage: leakproofness well
Disadvantage:discharge port mixing uneven problem

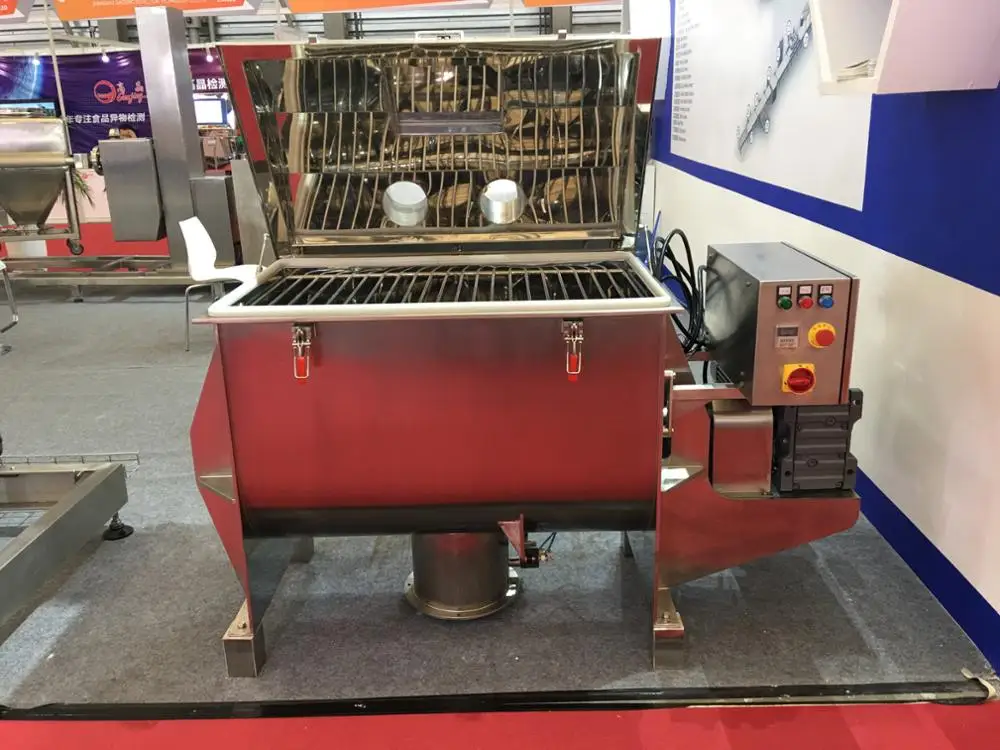

Ribbon mixer detail picture:
Inside of ribbon mixer is full mirrior polishing and spot welding
Application:
The ribbon mixer is widely apply in mixing powder and powder,geanule and granule and a bit liquid.it is used for food,chemical,pesticide,feeding stuff etc.
Principle of working:
TDL horizontal ribbon mixer consists of a mixing storage, helix blades and transmission parts. There is two tiers or three tiers of ribbon blender axis in the mixing container. The principle of working as below:
1.The outer helix will move the material from its two sides to the central part,
2. The inner helix will transfer the material to the two sides, performing convection mixing.
3. There is discharge exit on the centre of the u container bottom of mixer; The outer helix match with main helix make the materials to center exit discharging; it make u container no leftover in u container.
Shanghai Tandy Machinery Manufacturing Co.Ltd. is devoted in machine manufacture;we are specialized in development,production and related service for mixer blender,conveyor equipment,dust precipitation and so on.We derive advanced technology both at home and abroad,realize the innovation and breakthrough in technology;our products are widely application in industry of food,chemical,pesticide,dyestuff,metallurgy,feedingstuff etc.We adhere to"trust,quality,overstep"corporation culture,would like to grow up together with customers and partners to make concerted efforts,common development.
Pre-service:
1.Inquiry and consulting support.
2.Sample testing support.
3.View our Factory.
4.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
1 .advisory services: users encounter any problems in the use process, can call the company for technical support
2.warranty: warranty period of the product, if quality problems, the company responsible for the warranty service.
The user from the date of purchase, under normal circumstances if the product quality problems:
1. complete within one year free warranty,three years repair finite maintenance.
2. component damage free warranty for 1 years.
Q: Do you are factory or only company?
A:We have factory to produce mixer, and also we have the agent for some other brand.
Q: Why we can choose you?
A:1): Reliable---we are the real company, we dedicate in win-win
2): Professional---we offer the mixer machine exactly you want
3): Factory---we have factory, so have reasonable price
Q:How about the price?Can you make it cheaper?
A:The price depends on the item your demand(model,quantity)
Beat quotation after receving full description of the item you
Q:Delivery Time:
A:Normally, our delivery time is 40 days after we receive the deposit. If the order is big, we need to extend the delivery time.
Q:Warranty Time:
A:We ensure one year warranty, life-long service and provides technical support free of charge within or after warranty. Within the warranty period, we provide repair services for free. After the warranty period, we only charge cost of the required materials.
Q:Can I visit your factory?
A:Yes. Many domestic and international customers visit our factory every year. Our company is Shanghai.we will always warmly welcome everyone to visit our company.
Q:Does your price include freight
A:Our usual price is based on FOB Shanghai, if you request CIF, DDU,DHL etc, we also can privide according your require.
