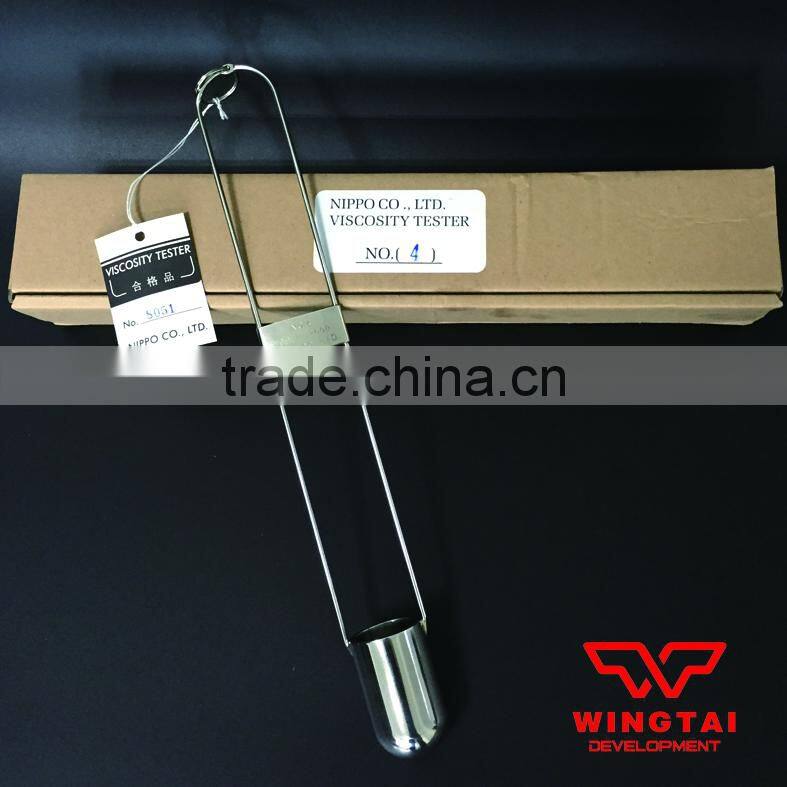

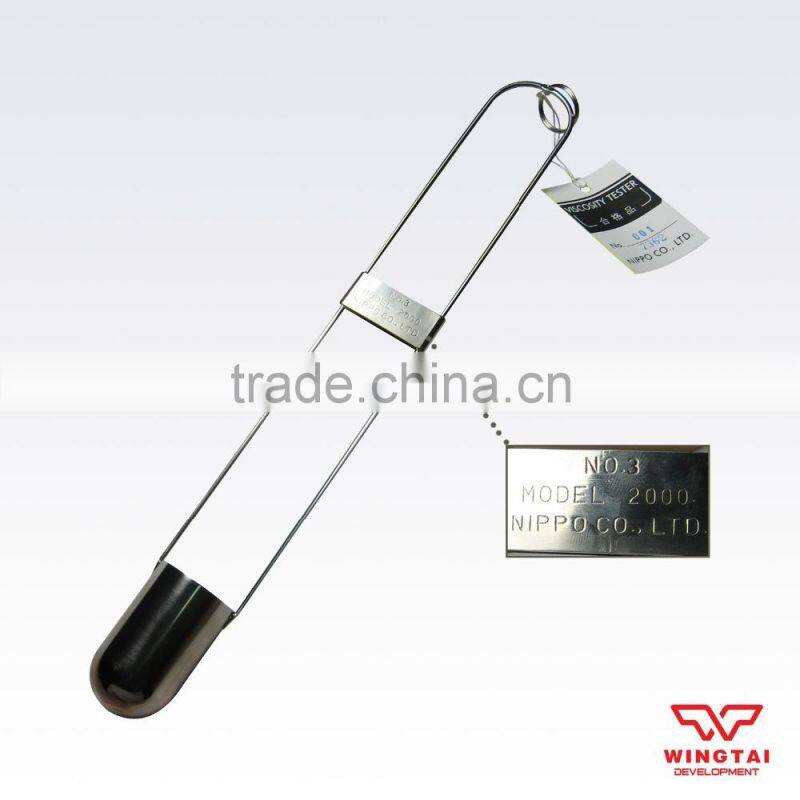

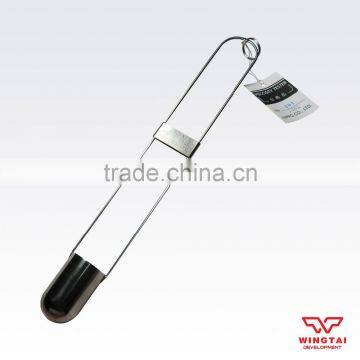

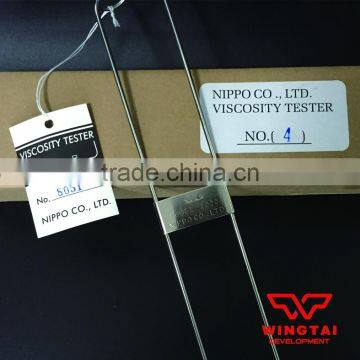

Japan NIPPO viscosity flow cup
Specifications:
Brand: NIPPO
Origin: Japan
Model: Zahn 2 #, 3 #, 4 #, 5 #, 6 #, 7 #
Cup Volume: 44ml
Cup Material: Stainless steel
Net Weight: 0.2kg (0.4 pounds)
Dimensions: 390 * 48 * 37mm
Role: accurate measurement of ink viscosity, accurate color
Packaging: environmentally friendly paper packaging
Description:
ZAHN cups(CHAISHI cups), according to the relevant provisions of the American Society of Materials Laboratory paint and raw material Standard ASTM No. D4212-93 "Standard Test Method for Viscosity Cup immersion combined with actual production.
The viscosity cup to test-Newtonian or near-Newtonian viscosity of the liquid. Can be used anywhere in the workshop, factory and laboratory, used to quickly check and adjust a variety of different fluid viscosity. Before use should select the appropriate cup number, the time control to the effluent is between 20 to 80 seconds.
Each dip cup has a 12 inch long annular handle ,hold this handle can be dip cup immersed in a liquid container.Refers to the annular ring has a center of the handle, easy to maintain a vertical position during use immersed cup."Zahn seconds" at a predetermined temperature for a particular results obtained by the dip cup.Zahn seconds "convert Stoke PCT, refer to ASTM D 4212.
Note: Use with a high precision stopwatch when measuring.
Model Number | Aperture | Measuring Range | Measuring Temperature |
2# | 2mm | ~70 | Room Temperature |
3# | 3mm | 20~250 | |
4# | 4mm | 80~700 | |
5# | 5mm | 200~1000 | |
6# | 6mm | 400~2000 | |
7# | 7mm | 900~3000 |
More detail information please chat with us!:)
| | |
