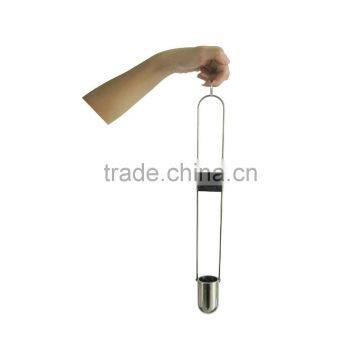

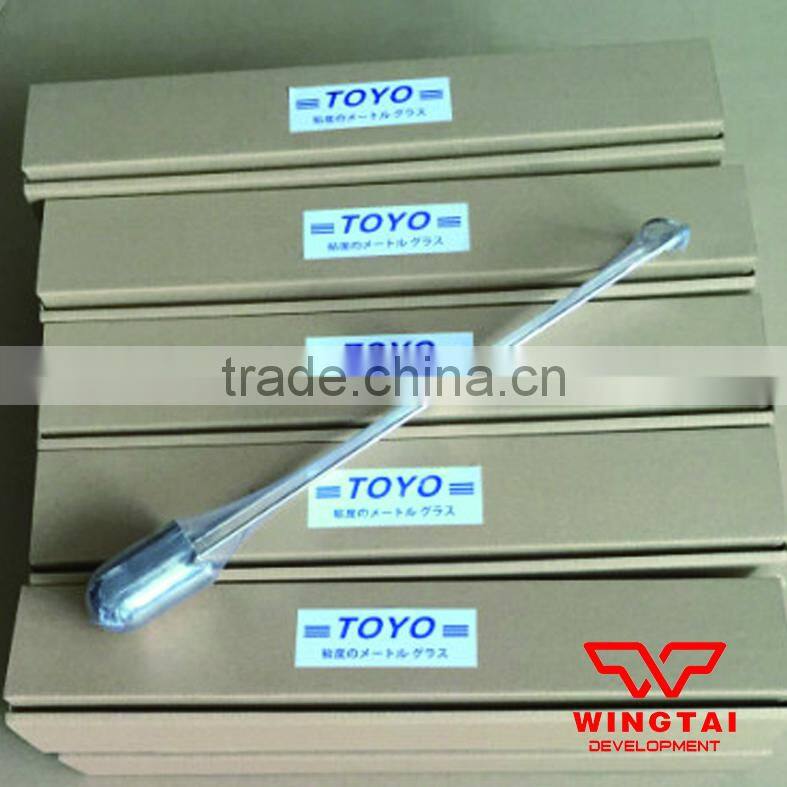

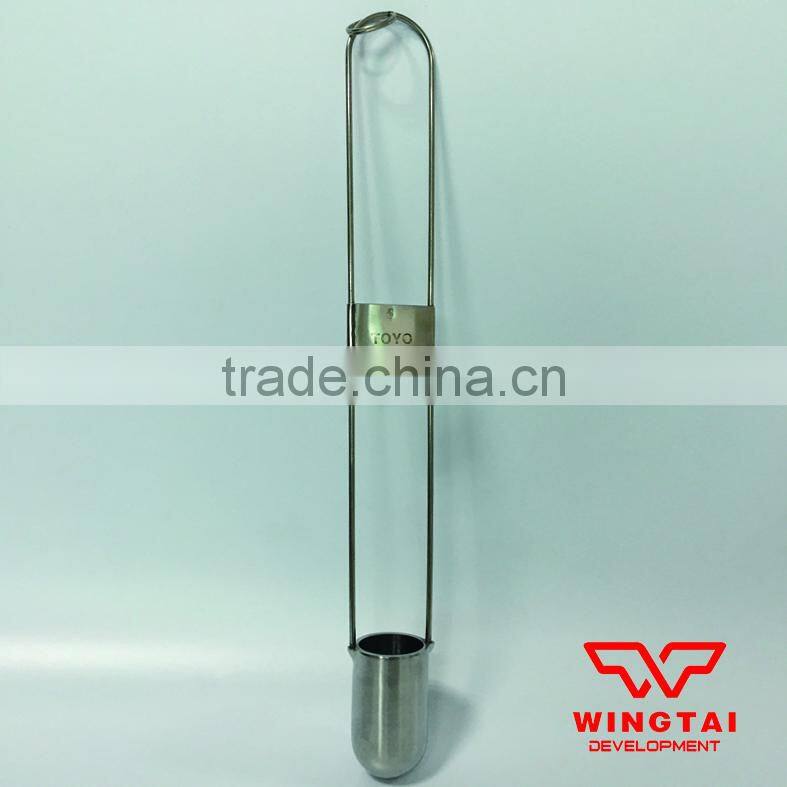

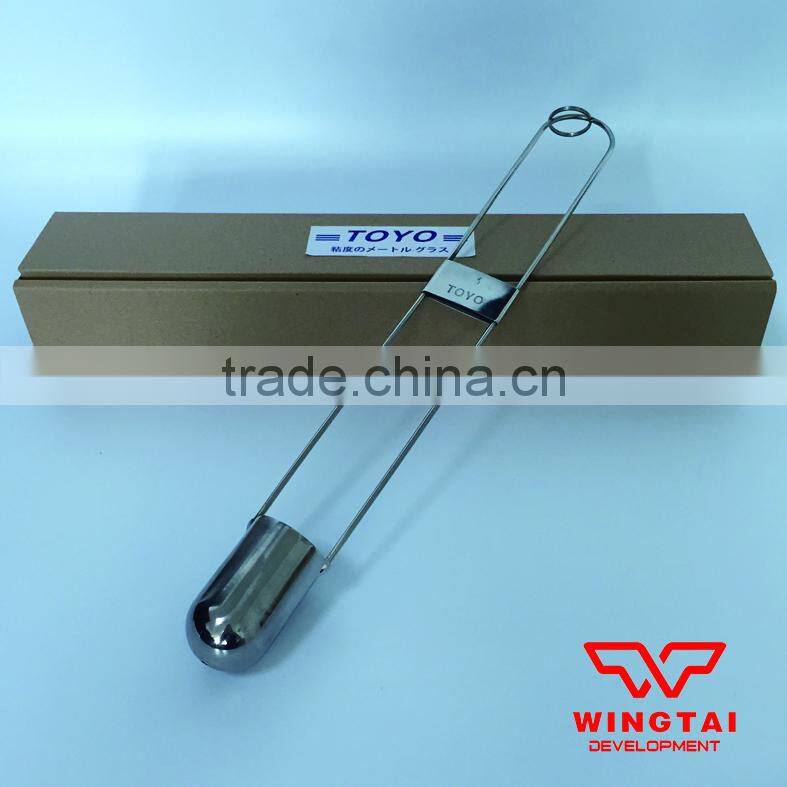

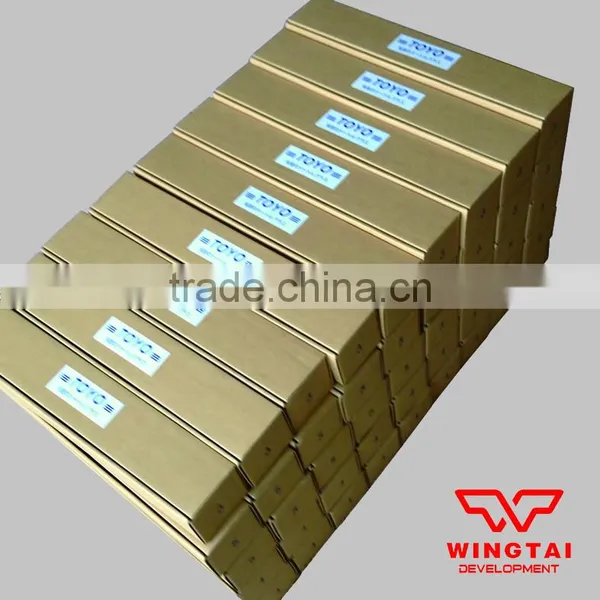

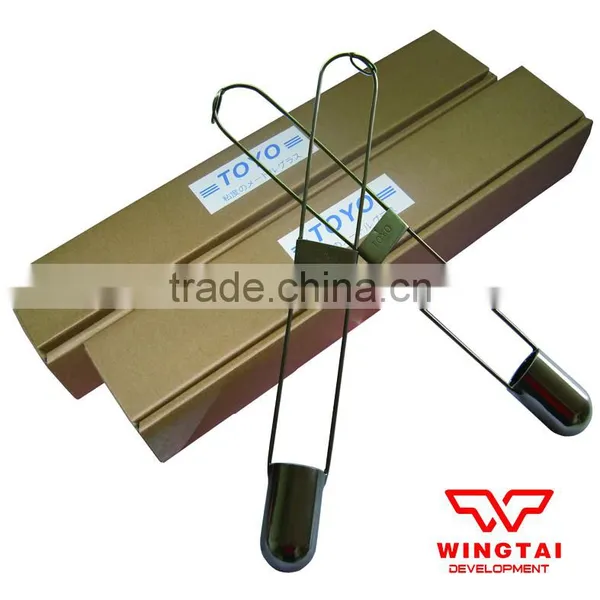

Japan TOYO Stainless Steel Viscosity Cup
The zahn cup is produced according to some regulations and practical experience of the <<the standard testing method of immerging viscosity cup>> from American Material Laboratory Association paint and raw material standard, and Its ASTM number is D4212-93.
Remark
Before using it you should choose a suitable cup, let the flowing speed at 10~90 seconds and also need a stopwatch with relatively high precision.
Model |
Aperture |
Measurement range (li stoke-on-trent) |
Measuring Temperature |
Application |
No 1 |
1mm |
~20 |
Indoor Temperature |
For very dilute liquid |
No 2 |
2mm |
~70 |
For very dilute liquid |
|
No 3 |
3mm |
20~250 |
Suitable for: thin oil, mixed paint, varnish |
|
No 4 |
4mm |
80~700 |
It is suitable for medium viscosity , thick fluid and mixture |
|
No 5 |
5mm |
200~1000 |
Suitable for thick fluid and the mixture |
|
No 6 |
6mm |
400~2000 |
For special viscous fluid and mixture. |
|
No 7 |
7mm |
900~3000 |
For special viscous fluid and mixture. |
Operation theory
1. The zahn cup has a 12inches annular holder, hold it until the cup immerges in the liquid.
2. There is a ring in the middle of the holder; it is for keeping the cup in a vertical condition when immerging.
3. When the cup is filled with liquid, lift it vertically, until the cup all out of the liquid, and then press the stopwatch at the same time.
4. You can see the liquid flows out of the cup through the small hole at the bottom of it .Until all the liquid is flowed off, stop the stopwatch at the same time. Then you will get the viscosity value of the liquid on the stopwatch.
5. The testing result in a special environment must be noted in zahn second, then convert it into centistokes.
Application
It is used at any place like workshop, factory or laboratory, rapidly test and adjust the viscosity of different fluid.This viscosity cup is to test the viscosity of Newtonian or similar Newtonian fluid.
|
|
|
| Ford Cup 4 Viscosity With Holder | Ford Viscosity Cup For Ink,Glue | Din 4 Viscosity Cup For Paints |
|
|
|
| Aluminum Alloy Paint Viscosity Cup | Ink Din 4 Viscosity Cup | Stainless Steel TOYO Viscosity Flow Cup |
|
|
|
| NIPPO Ink Flow Viscosity Cup | AARON Printing Ink Zahn Cup | Japan NK2 IWATA CUP |
