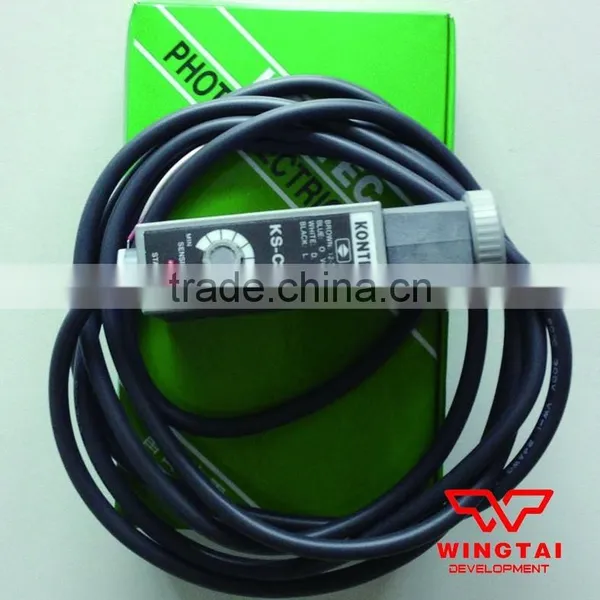

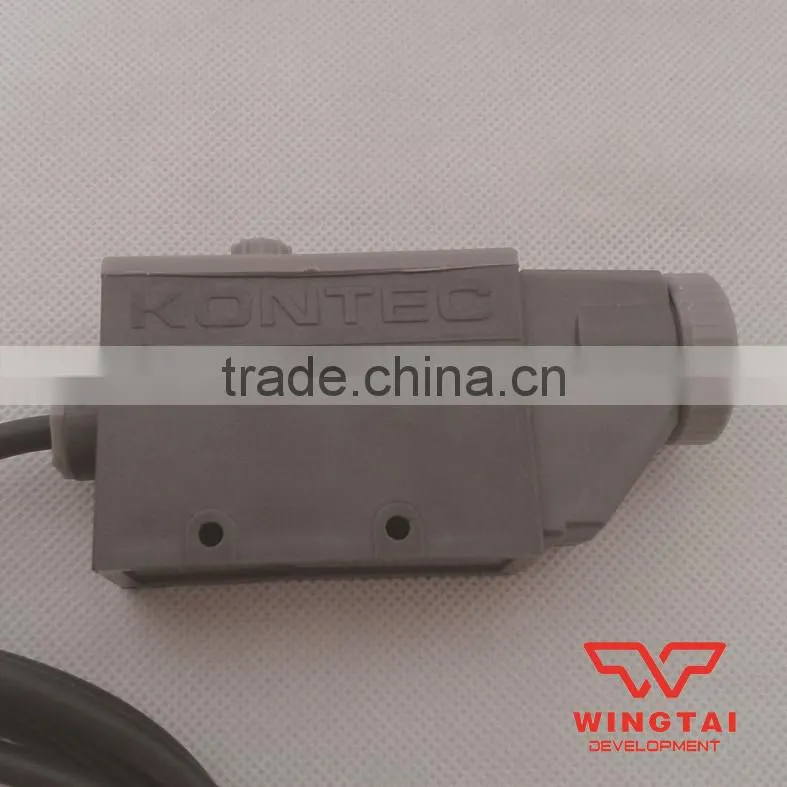

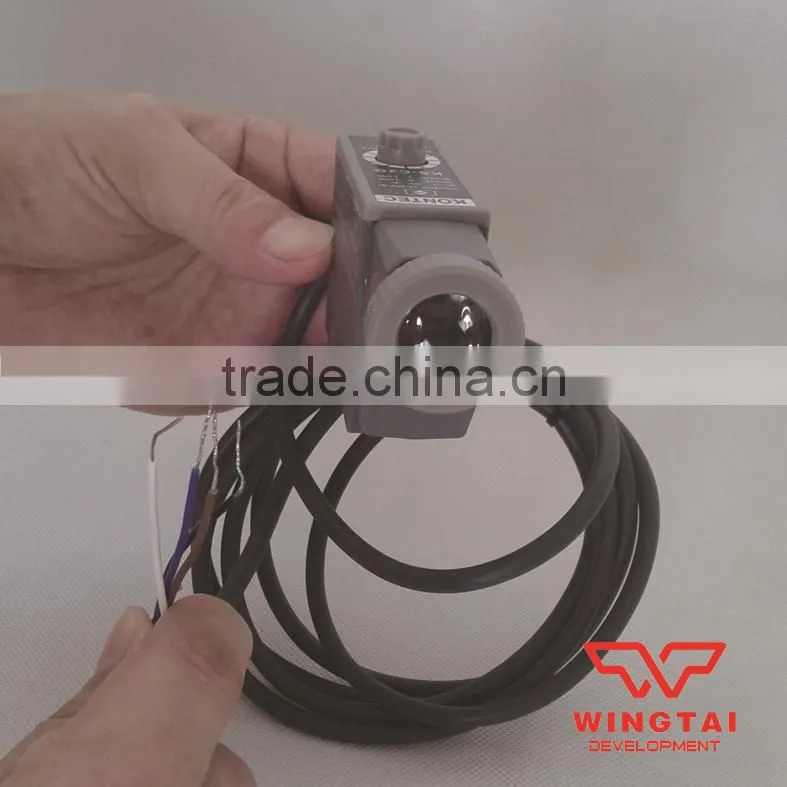

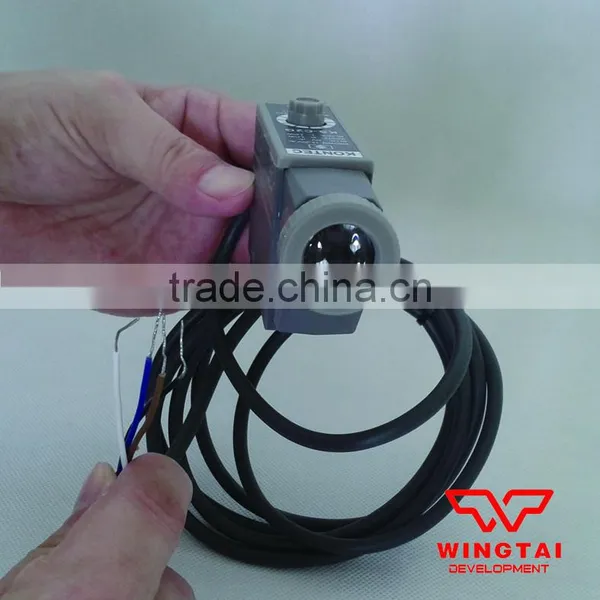

KS-C2W Kontec 12V Light Sensor
Photoelectric eye using the coaxial optical path reflection principle, emission source of imported special poly-type LED, and optional in a variety of light sources, in order to adapt to different applications, receiving part using imported highly sensitive receiver tube, internal precision electronic components, fast response
Can be used for: all kinds of vertical. Horizontal packaging machines, all kinds of bag making machine, cutting machine, slitting machine, and other printing machinery. As color-coded identification, precise control of the length of the bags, auto-correction and other fields .
Main Feature
1.Cast a light white and green
2.Coaxial reflection type optical design
3. The light spot is small, the detection accuracy.
4.The output circuit protection design.
5.The power supply voltage :12-30VDC.
Specifiction
|
KS-C2W |
KS-C2G |
KS-C2R |
KS-C2R/G |
KS-C2W/G |
Light source |
White |
Green |
Red |
Red/green |
White/green |
Detection |
coaxial reflective type |
||||
Detection distance |
10mm±2mm |
||||
Cast bare point |
1.0mm |
||||
supply voltage |
DC10-30V |
||||
Power consumption |
40mA or less |
||||
response time |
1mS following |
||||
Output form |
NPN type lights moving / dark dynamic dual output |
||||
protection function |
Supply voltage reverse polarity protection, short-circuit protection |
||||
Operation instruction |
red LED, bright Activity directions |
||||
Operating ambient |
temperature: -5 ° C -50 ° C sunshine <10000Lux incandescent <30000Lux |
||||
Lead |
four-core cable (brown, yellow, white, blue) standard length 2m |
||||

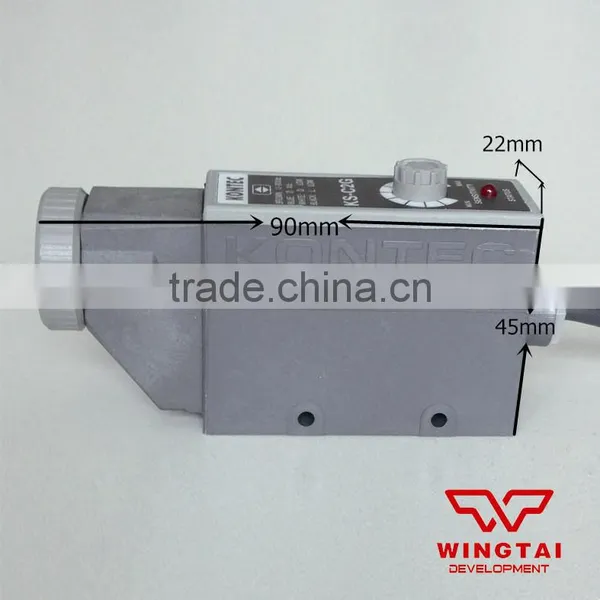

Dimensions |
90(L)×45(H)×22(W) |
||||
gravure printing machine, laminating machine, bag making machine, cutting machine, automatic packaging machines; This series of products have accurate, sensitive color vision ability. The shade and cursor Model.
|
|
|
|
