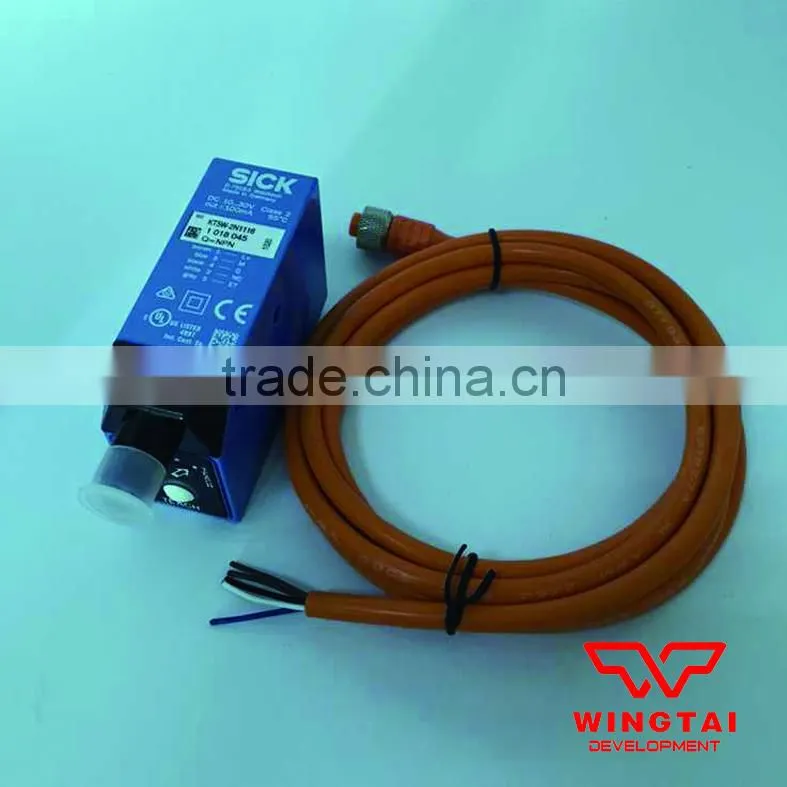

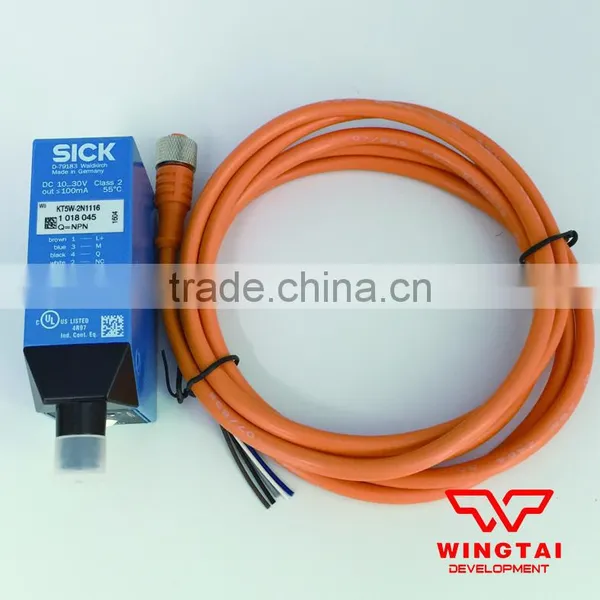

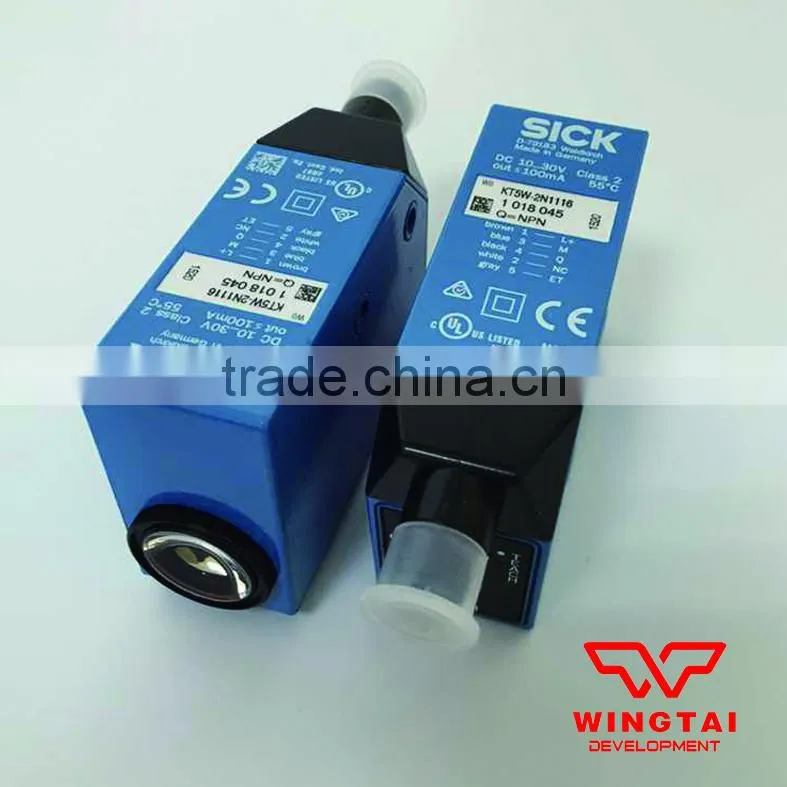

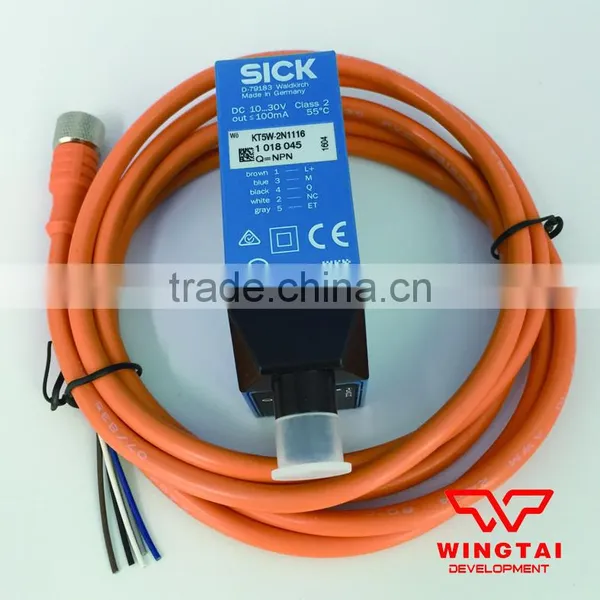

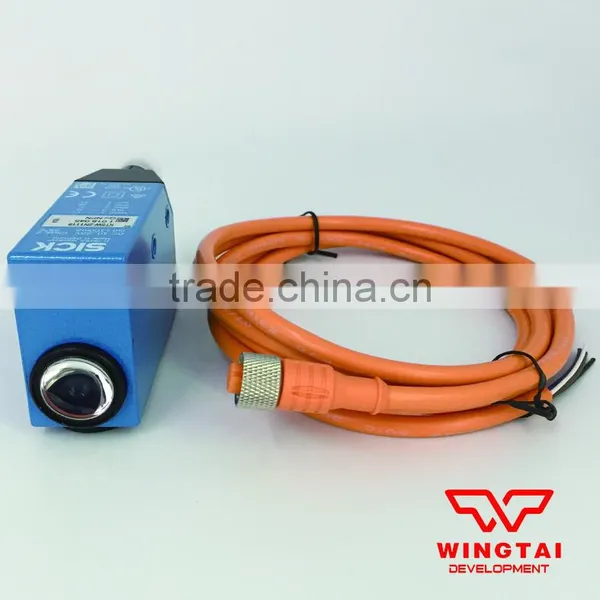

Germany Sick Photocell KT5W-2N1116
Contrast sensors
KT5, KT5-2 Teach-in
Type:KT5W-2N1116
At a glance
Tough, metal housing

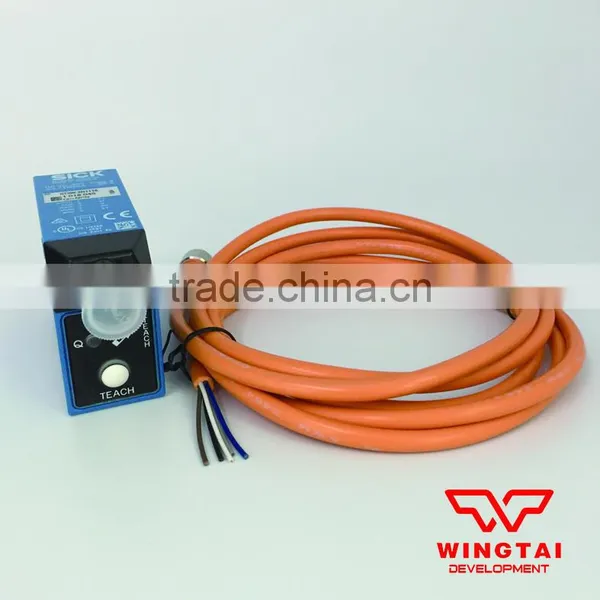

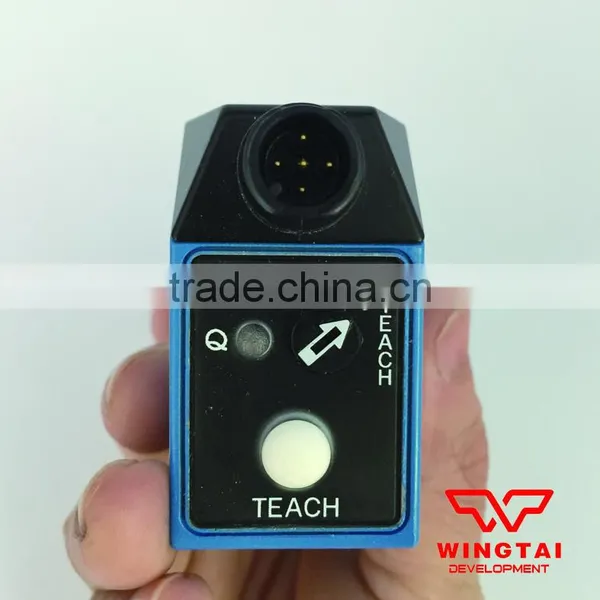

Various teach-in methods via control panel or control cable
Maximum detection reliability due to 3-color RGB LED technology
Switching frequency of 10 kHz
Various sensing distances and light spot directions
M12 plug can be rotated 90°
Your benefits
All print marks and color combinations are reliably detected, ensuring high machine throughput
Reliable operation, even with jittering webs and high-gloss materials
High positioning accuracy improves packaging quality
Various sensing distances, light spot directions and light emissions make individual configuration and simple integration into the production process possible
Sensing distance 1) |
10 mm |
Sensing distance tolerance: |
± 3 mm |
Light source 2) |
LED |
Wave length |
470 nm, 525 nm, 640 nm |
Light emission |
Long and short side of housing, exchangeable |
Light spot size |
1.2 mm x 4.2 mm |
Light spot direction 3) |
Vertical |
Type of light |
Visible blue light, Visible green light, Visible red light |
Dimensions (W x H x D) |
30.4 mm x 53 mm x 80 mm |
Housing design (light emission) |
Rectangular |
Teach-in mode |
Static 2-point teach-in |
1) From front edge of lens
2) Average service life: 100,000 h at TU = +25 °C
3) In relation to long side of housing
Mechanics/electronics
Ripple 1) |
≤ 5 Vpp |
Power consumption 2) |
< 80 mA |
Switching frequency 3) |
10 kHz |
Response time 4) |
50 us |
Output type |
NPN: HIGH = approx. VS / LOW ≤ 2 V |
Switching mode |
NPN |
Input, teach-in (ET) |
NPN:, Run: U = 10 V ... < UV, Teach: U < 2 V |
Retention time (ET) |
25 ms, non-volatile memory |

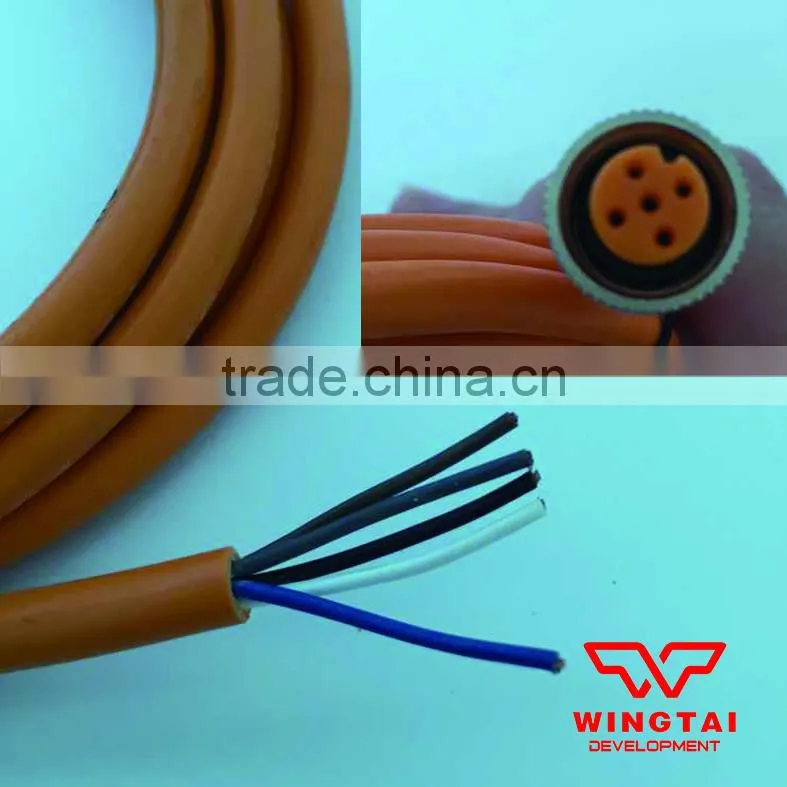

Connection type |
Male connector M12, 5-pin |
Protection class 5) |
II |
Circuit protection |
Output Q short-circuit protected, Interference pulse suppression, UV connections, reverse polarity protected |
Enclosure rating |
IP 67 |
Weight |
400 g |
Housing material |
Metal, Zinc diecast |
Output current Imax. |
100 mA |
Supply voltage |
10 V DC ... 30 V DC 6) |
1) May not exceed or fall below Uv tolerances
2) Without load
3) With light/dark ratio 1:1
4) Signal transit time with resistive load
5) Reference voltage DC 50 V
6) Limit values: operation in short-circuit protected network max. 8 A
Ambient data
Shock load |
According to IEC 60068 |
Ambient operating temperature |
-10 °C ... +55 °C |
Ambient storage temperature |
-25 °C ... +75 °C |
|
|
|
|
