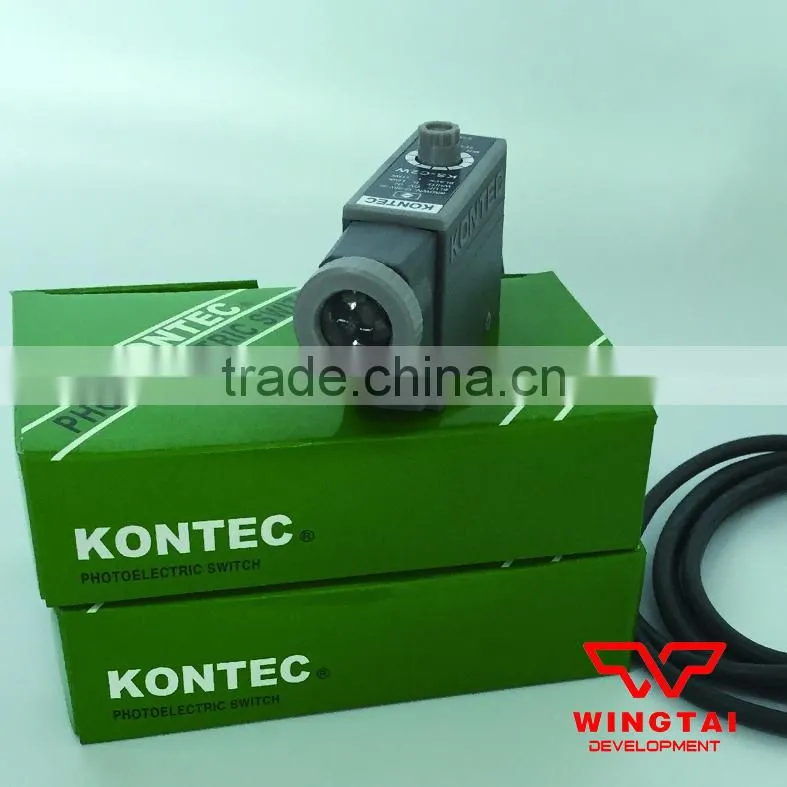

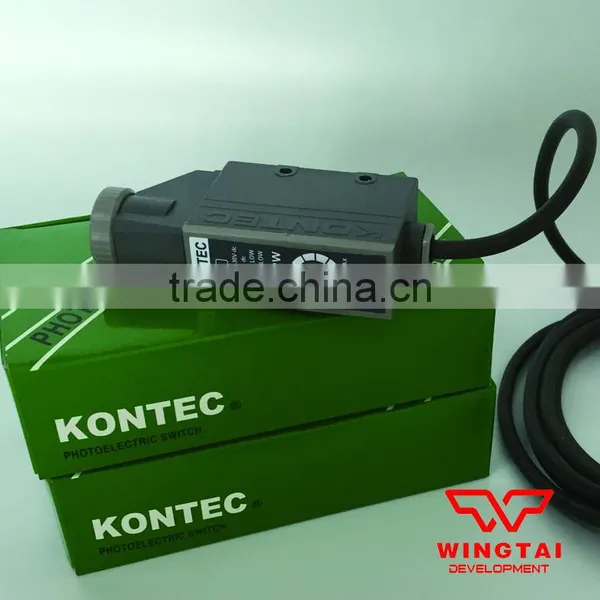

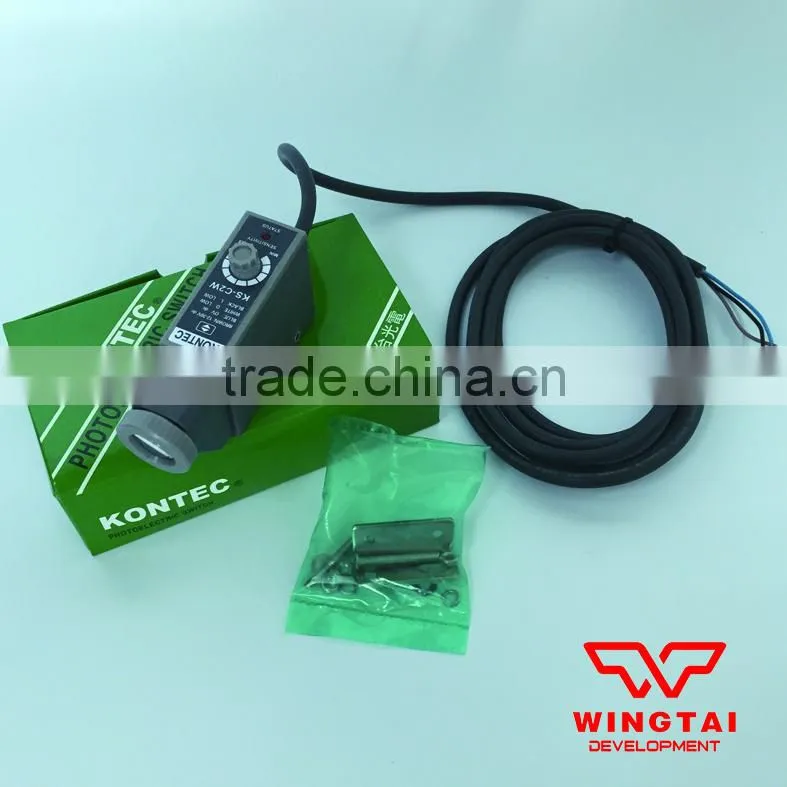

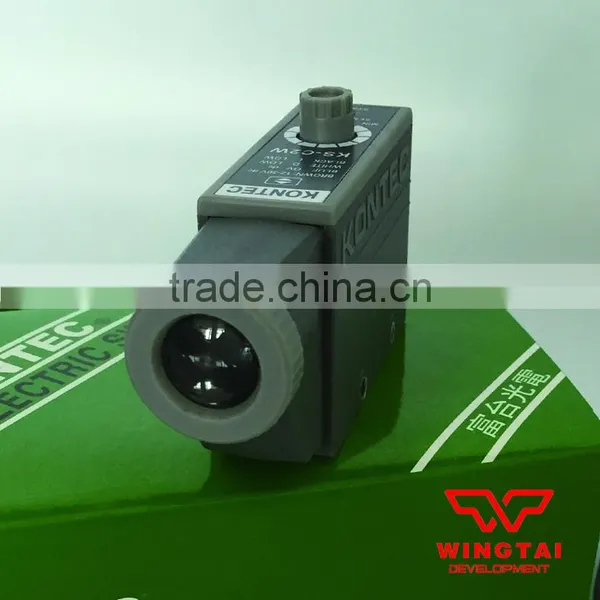

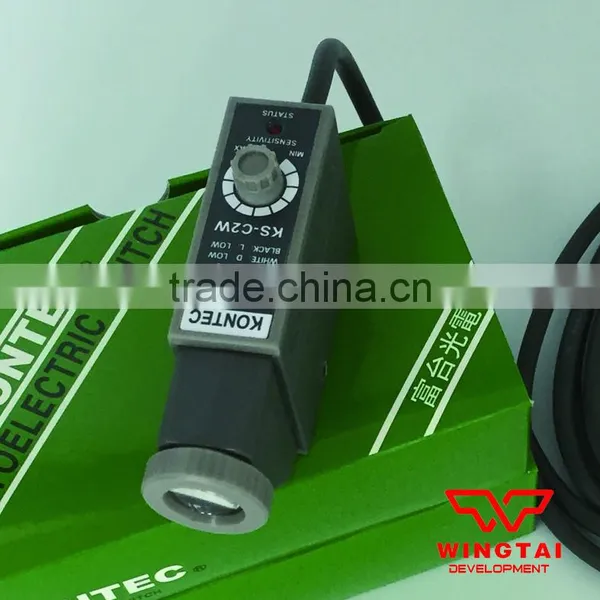

Kontec KS-C2W 12V Light Sensor

Name: Kontec KS-C2W 12V Light Sensor
Brand: KONTEC
Price: USD $124 - 131 / Set

FOB Price

USD $124 - $131 / Set

1 Set(Min.Order)

Supply Ability 1500 Set / Sets per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Taiwan	Brand Name:	KONTEC	Model Number:	KS-C2W
Usage:	Other, As color target identification, precise control packet length, automat	Theory:	Optical Sensor	Output:	Switching Transducer

Product Description

Kontec KS-C2W 12V Light Sensor

Product Description

Photoelectric eye using the coaxial optical path reflection principle, emission source of imported special poly-type LED, and optional in a variety of light sources, in order to adapt to different applications, receiving part using imported highly sensitive receiver tube, internal precision electronic components, fast response

Can be used for: all kinds of vertical. Horizontal packaging machines, all kinds of bag making machine, cutting machine, slitting machine, and other printing machinery. As color-coded identification, precise control of the length of the bags, auto-correction and other fields .

Main Feature

1.Cast a light white and green
2.Coaxial reflection type optical design
3. The light spot is small, the detection accuracy.
4.The output circuit protection design.
5.The power supply voltage :12-30VDC.

Specifiction

	KS-C2W	KS-C2G	KS-C2R	KS-C2R/G	KS-C2W/G
Light source	White	Green	Red	Red/green	White/green
Detection	coaxial reflective type
Detection distance	10mm±2mm
Cast bare point	1.0mm
supply voltage	DC10-30V
Power consumption	40mA or less
response time	1mS following
Output form	NPN type lights moving / dark dynamic dual output
protection function	Supply voltage reverse polarity protection, short-circuit protection
Operation instruction	red LED, bright Activity directions
Operating ambient	temperature: -5 ° C -50 ° C sunshine <10000Lux incandescent <30000Lux

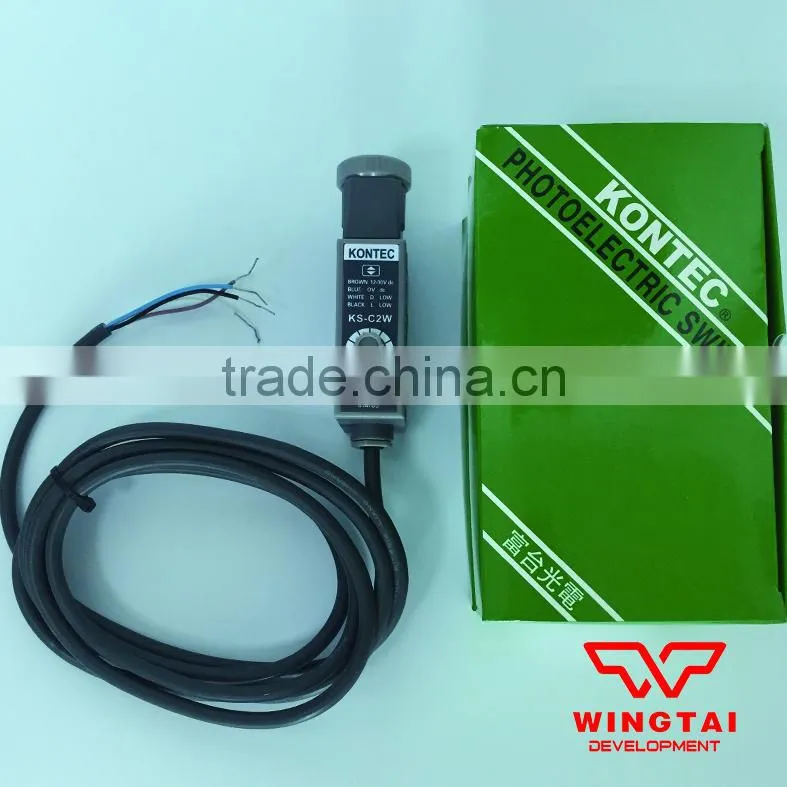

Lead	four-core cable (brown, yellow, white, blue) standard length 2m
Dimensions	90(L)×45(H)×22(W)

Application

gravure printing machine, laminating machine, bag making machine, cutting machine, automatic packaging machines; This series of products have accurate, sensitive color vision ability. The shade and cursor Model.

Contact Us

Shantou Rongtai Packing Equipment Co., Ltd.: Contact nameWing Chen; Phone86-754-88733293,; AddressRoom 408, Block A, Huangshan Building, 31st Area Shantou,Guangdong
