Elcometer 106 Pull-Off Adhesion Tester 0-0.2MPa
Place of origin:UK
Brand:Elcometer
Model:F106-5
Material:Anodised aluminium body, steel feet
Measyring range:0-0.2Mpa(0-30 PSI)
Size:152x76mm (6 x 3’’)
Dolly diameter: 20mm (0.76’’)
Dolly Area:(0.49 sq inch)
Warranty period:one year
Standard:GB/T 5210,ISO 4624 and ASTM D 4541
Application:Adhesion test of paint or plasma spray on bridge decking, coatings on steel, aluminium, concrete etc

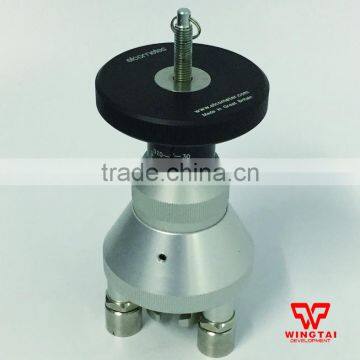

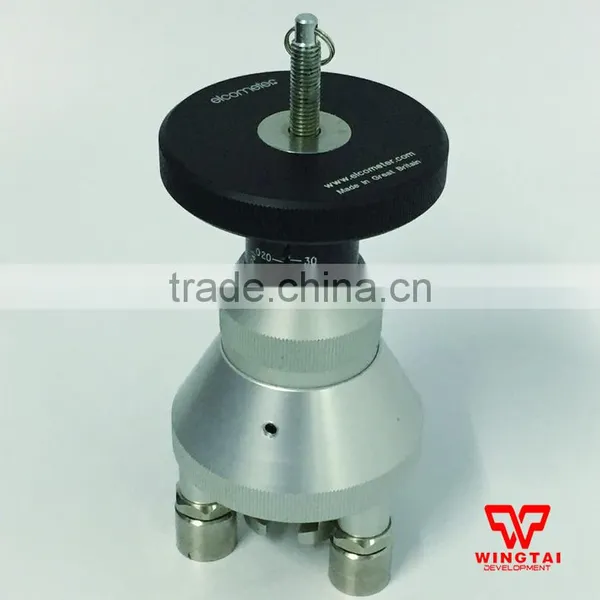

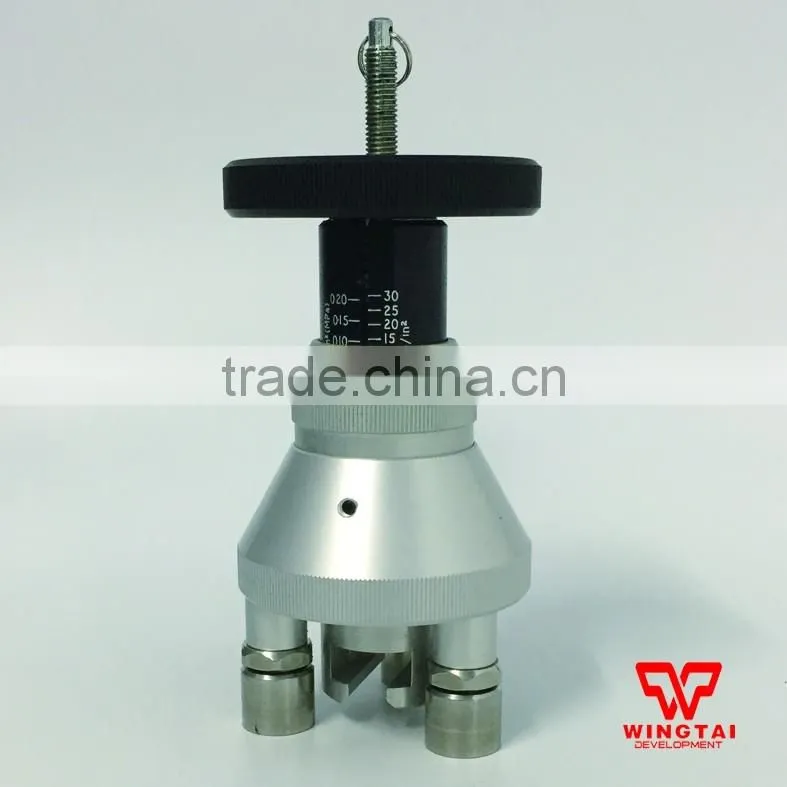

The Elcometer 106 Adhesion Tester is easy to operate and fully portable Type II adhesion gauge which provides a numerical value for adhesion strength.
Applications for the Elcometer 106 Adhesion Test include paint or plasma spray on bridge decking, coatings on steel, aluminium, concrete etc.

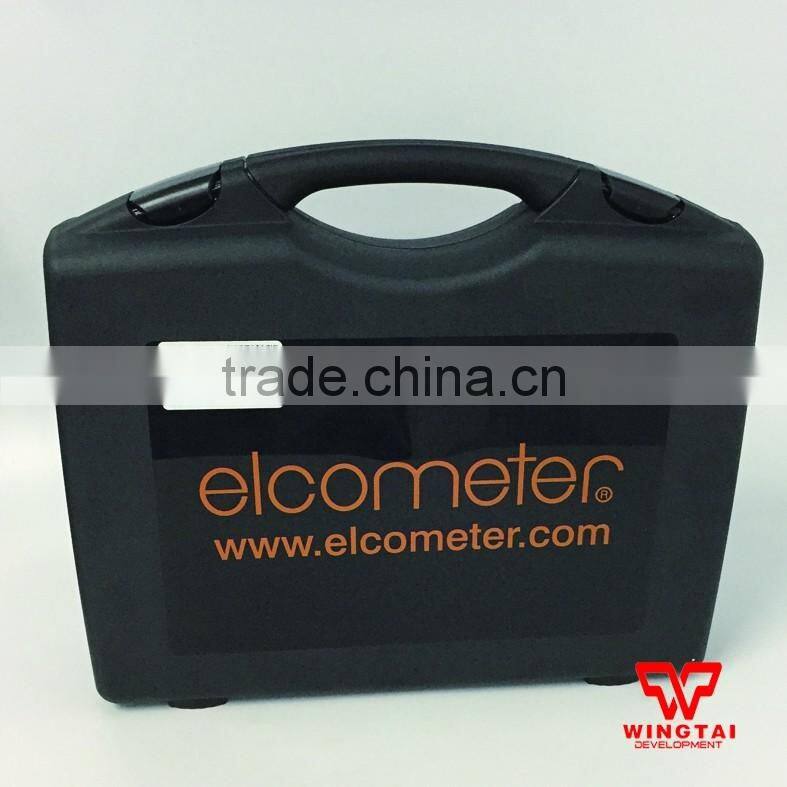

·Supplied in a carry case - ideal for site tests
·Hand operated - no need for a power supply
·Includes a cutter for EN13144 and ISO 4624 tests
Measuring principle
Adhesive the round dolly and tested coating surface together , after a period of conservation, then exert a lifting force through a spring builted in the the measuring instrument. When the round dolly is pulled off from the coating surface, the indicator on the scale shows the value of the adhesion of the coating to the substrate.
Adhesion Test Method
1.A test dolly is bonded to the coating using an adhesive. The Elcometer 106 adhesion tester houses a spring arrangement which applies a lift force to the dolly as the tension is increased.
2.When the coating is pulled off the surface, an indicator on the scale shows the numerical value of adhesion strength expressed in terms of the force per unit area required to remove the dolly.
3.Inspection of the dolly face is required to determine the failure mode.
4.To increase sensitivity at low values or for uneven surfaces, a 40mm (1.52”) dolly is available. When using the 40mm (1.52”) dolly, divide the scale reading by 4.
|
Part Number
|
Description
|
Range |
|
||
MPa (N/mm2) |
kg/cm2 |
psi |
Certificate |
||
F106----5 |
Elcometer 106 Adhesion Tester - Scale 5 |
0 - 0.2 |
0 - 2 |
0 - 30 |
ο |
F106----1 |
Elcometer 106 Adhesion Tester - Scale 1 |
0 - 3.5 |
0 - 35 |
0 - 500 |
ο |
F106----2 |
Elcometer 106 Adhesion Tester - Scale 2 |
0 - 7.0 |
0 - 70 |
0 - 1000 |
ο |
F106----3 |
Elcometer 106 Adhesion Tester - Scale 3 |
0 - 15 |
0 - 150 |
0 - 2000 |
ο |
F106----4 |
Elcometer 106 Adhesion Tester - Scale 4 |
0 -22 |
0 - 220 |
0 - 3200 |
ο |
Dimensions |
Scales 1, 2, 5: 152 x 76mm (6 x 3”) Scales 3 and 4: 150mm |
||||
Dolly Diameter |
20mm (0.76”) |
||||
Dolly Area |
314mm² (0.49 sq inch) |
||||
Gross weight of Kit |
Scale 1, 2 and 5: 2.1kg (4.7lb) Scale 3: 3.4kg (7.5lb) Scale 4: 3.6kg (8.0lb) |
||||
Packing List |

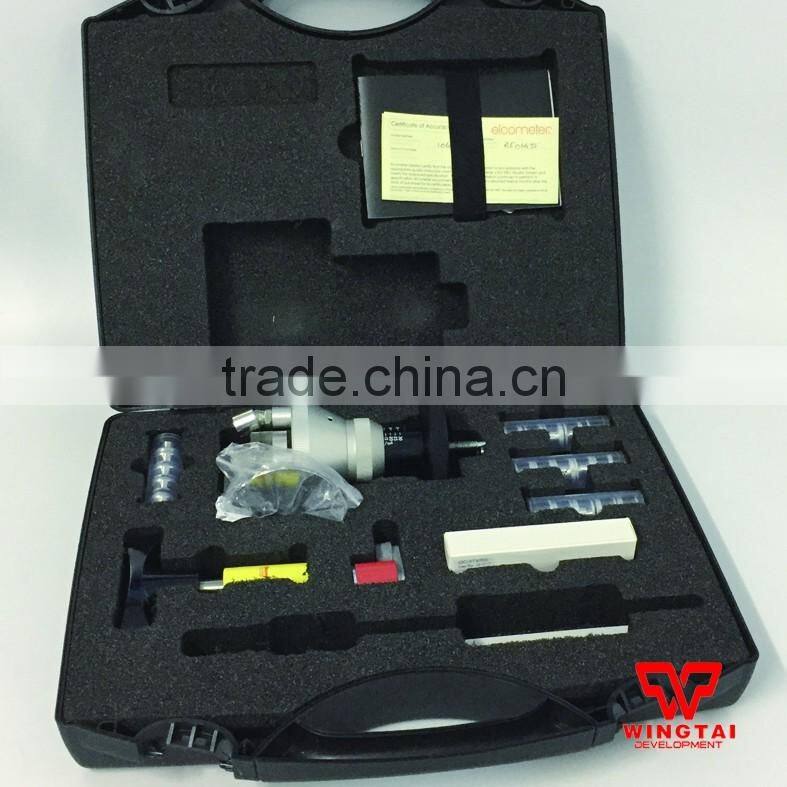

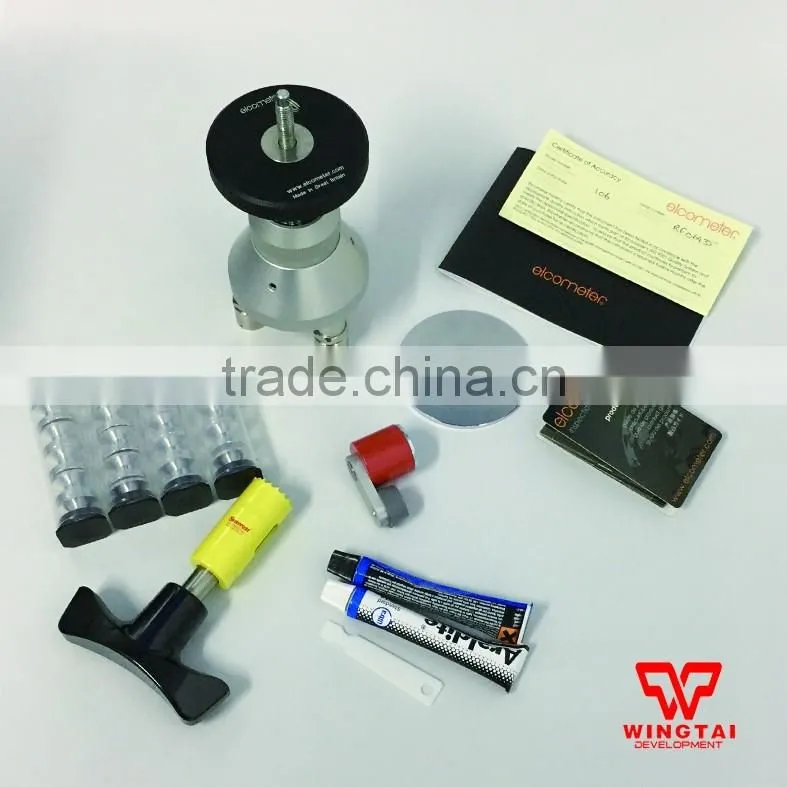

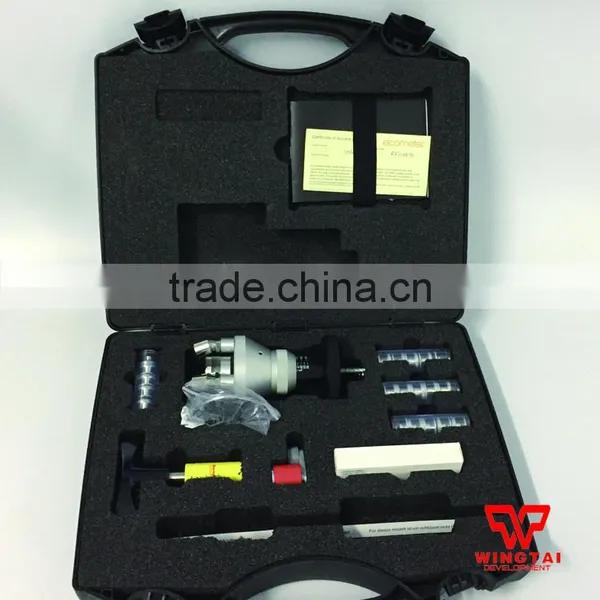

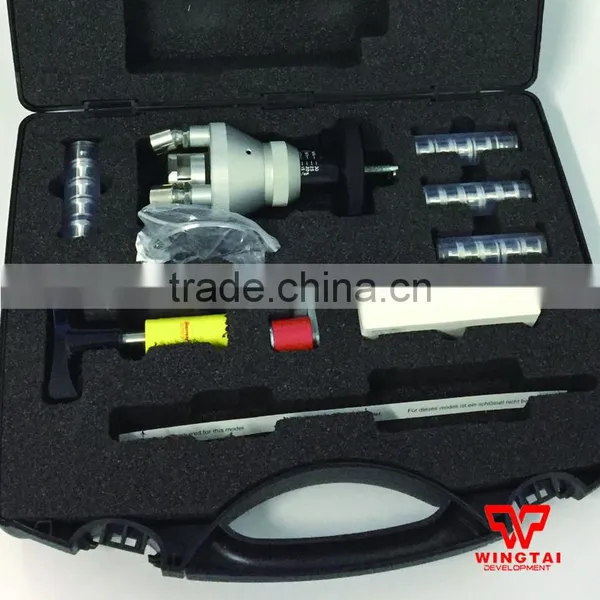

Elcometer 106 Pull-Off Adhesion Tester, pack of 20 dollies, Araldite adhesive, base support ring, magnetic dolly clamp, dolly cutter, ratchet spanner (scale 3 & 4 only), carry case and operating instructions |
||||
Accessories:
T1062895-10 |
Spare Dollies 20mm (0.76”) Diameter (Pack of 10) |
T1062895- |
Spare Dollies 20mm (0.76”) Diameter (Pack of 100) |
T1062914- |
Large Dollies 40mm (1.52 Diameter (Pack of 5) |
T1062915- |
Large Base Ring for 40mm (1.52")Dollies |
T99912906 |
Araldite Epoxy Adhesive |
T99914009 |
20mm (0.76") Dolly Cutter |
Standard:
AS 1580.408.5, ASTM D 4541, AS/NZS 1580.408.5, EN 13144, EN 24624, ISO 4624, ISO 16276-1, JIS K 5600-5-7, NF T30-062, NF T30-606
(Standards in grey have been superseded but are still recognised in some industries.
ο Optional Calibration Certificate available)
