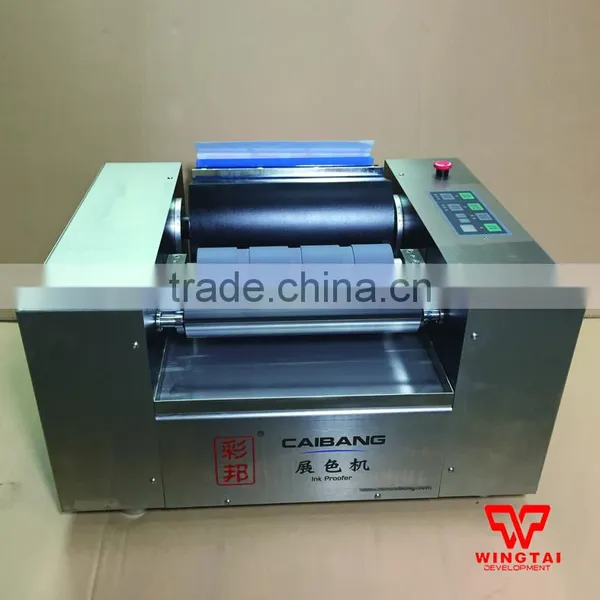

CB225A Automatic ink proofer
Brand: Caibang
Original: China
Model NO.: CB225A
Advantage:
1. Multi-section ink proofer
2. Reduce press down-time
3. Excellent repeatability.
4. Easy and safe for using
Applicable printing ink: Common or UV printing ink for surface printing or relief printing, UV flexo printing ink
Technical parameters :
Main technical parameters of Caibang CB225A automatic color mixing simulation machine :
Input voltage: 220V , 50HZ (110V,60HZ available )
Power:250W
Effective area of ink color bar: 40X210mm (4 bars), 60X210mm (3 bars), 100X210mm (2 bars), optional.
Printing dimension: 270X250 mm
Ink uniform mode: automatic
Ink uniforming speed: Three directly selectable rates on the control panel of the equipment, that is 400, 550 and 700rpm.
Each rate can be set freely from 0 to 1,000rpm, with stepless frequency conversion speed regulation
Printing speed: Three directly selectable rates on the control panel of the equipment, that is 10, 15 and 20rpm.
Each rate can be set freely from 0 to 30rpm, with stepless frequency conversion speed regulation
Ink uniforming time: 15-99s, adjustable.
Printing pressure: -1 to +1mm, subject to manual adjustment.
Ink uniforming pressure: Manual adjustment.
Printing roller specification: ø67×229MM(Max for 229×210mm)
Printing roller : common ink roller or UV ink roller, optional.
Outline dimension: 525x430x280mm
Net weight: About75kg
Single cam uniform pressure balanced structure, intelligent automatic switching
Feature :
1) Automatic distributing (distributing pressure, time, speed adjustable)
2) Printing speed and Printing pressure can optional
3) Sections printing color more roller structure, can show the color at the same time article 4 color (different thickness or different color ink)
4) Use with quantitative instrument can accurately control the color of the ink layer thickness, making color matching system database is very convenient
5) Simple operation, easy cleaning
6) Instrument with precision and durable
|
|
|
