2M-K Animal Injector/syringe for Animal

 Injector plays an important role in the modern livestock house,with its help,your work is getting more efficient and easy.An injector includes injector pipe and injector clamp. Injector clamp is a lever; the piston on the injector can be pressed easily to achieve injection function.

 The catheter of injector is designed for convenience to animal injection. The injector needle is provided with scales to measure the volume of the injection liquid medicine. The simple structure of utility model has advantages of easy operation, time saving and labor saving when injecting pigs and other animals. All these reduce the difficulties veterinary staff faces and controls the amount of the liquid.

The characteristics and advantages of our product:

1. Excellent workmanship
- The product has good sealing property, avoid wasting medicine
- After meticulous grinding process plus high quality material, it has anti - oil, corrosion-resistance functions
- The needle is designed with Luer lock, needle will never fall off in process of injection.

2. Best humanization design
- Reasonable design, light structure, long working life is in accordance with the design of human body.
- Optimized design touch, make injection more light and convenient.

3. Saving time and labor cost
- The product is precise in structure and good in absorbency. Once connecting, it’s unnecessary to replace the liquid medicine repeatedly in order to realize continuous injection, being convenient without complicated replacement steps.
- Cleaning and disinfection are convenient and easy to preserve.
- Product can be extended the service life with sets of extra fittings.

Use Methods & Quantitative Methods

1 Insert the bottle needle and the air bleed needle into the medicine bottle respectively.

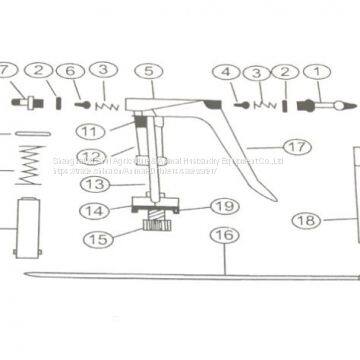

2. Connect the catheter with bottle needle and the continuous injector connector 7. Firstly adjust the regulating screw 15 in the position of 1ml, pull the lever 17. When the medicine is drained out, adjust the regulating screw 15 to required position of the dose (The scale of the ruler is evenly aligned with the bottom plane of the positioning nut 14), and screw the locking nut 19 close to the positioning nut 14.

3. Extrude it for several times until the vaccine is shot and then loaded with an injection needle.

4. Dosage adjustment range is 0-2ml.

Disinfectant Methods

1. When theinjector is used up, turn handle 18 off in counter clockwise direction.

2. Remove the spare parts (except the handle 18) into the water and boil it for 10 minutes.

3. Reloaded parts and handle, extrude the water in the injector.

Maintenance Methods

1. Thoroughly clean the injector (with distilled water or boiled water), all the parts, drain the residual liquid.

2, Apply medical silicone oil or paraffin oil on the steering valve, valve 6 and O-type ring 8, and dry the parts with clean cloth. Pack them and place in dry place.

Attention

1. When the injector placed for a long time, there may be no inhalation phenomenon, because the rubber valve 6 and connector 7 stick together, separating them can solve the problem. If there is still no inhalation, it may because of valve 4 and main body 5 sticking together. Please unlock the lock pole 1,separate relief valve 4 and main body 5, and install them again.

2. When cleaning or replacing parts, the seals should be tightened and without leakage

Installation of accessories

1 Inserting needle

1 Air relief needle

1 Catheter

2 Steering valve spring

2 Steering valve

2 Sealing ring

carton box
