Injector plays an important role in the modern livestock house,with its help,your work is getting more efficient and easy.An injector includes injector pipe and injector clamp. Injector clamp is a lever; the piston on the injector can be pressed easily to achieve injection function.
The catheter of injector is designed for convenience to animal injection. The injector needle is provided with scales to measure the volume of the injection liquid medicine. The simple structure of utility model has advantages of easy operation, time saving and labor saving when injecting pigs and other animals. All these reduce the difficulties veterinary staff faces and controls the amount of the liquid.
The characteristics and advantages of our product:
1. Excellent workmanship
- It has built-in excellent visual scales which help you inject vaccine more accurate.
- The amount of injection can be adjusted due to the screw buckle.
- The product has good sealing property, avoid wasting medicine
- After meticulous grinding process plus high quality material, it has anti - oil, corrosion-resistance functions
- The needle is designed with Luer lock, needle will never fall off in process of injection.
2. Best humanization design
- Reasonable design, light structure, long working life is in accordance with the design of human body.
- Optimized design touch, make injection more light and convenient.
3. Saving time and labor cost
- The product is precise in structure and good in absorbency. Once connecting, it’s unnecessary to replace the liquid medicine repeatedly in order to realize continuous injection, being convenient without complicated replacement steps.
- Cleaning and disinfection are convenient and easy to preserve.
- Product can be extended the service life with sets of extra fittings.
Use and Dosage Regulation Method

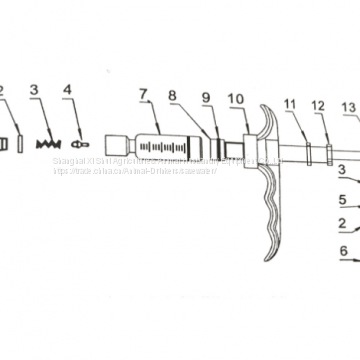

1. Respectively insert the needle and the air relief needle into the medicine bottle, and connect the suction needle and connector 6.
2. Adjust the regulating screw 12 and the piston 8 to the required dose scale. Rotate the lock nut 10 and push the handle 13 continuously, and air is discharged from the ruler 7.
3.The scale line on the ruler 7 is 0.1ml per grid, and when the bottom of valve 8 of the piston is correspondingly adjusted with the ruler line, it is the required dose. The maximum value is 2ml.
Disinfectant Methods
1. Clean the injector with clean water for several times and fill it it water. Boil the injector in water for 25-30 minutes (do not touch the bottom of the pot). Please drain the water from the injector before using it.
2. Immersion disinfection. Fill the injector full of disinfectant into disinfectant , soak for 30 minutes, and then drain the liquid in the injector to use.
Attention
1. Thoroughly clean all the parts of the injector with distilled water or boiled water, as well as the residual liquid.
2. When cleaning or replacing parts, the seals should be tightened and without leakage.
Installation of accessories
1 Inserting bottle needle ，1 Air relief needle ，1 Catheter ，2 Steering valve ，2 Small spring ，2 Sealing ring ，1 O-style ring
Standard Export Package
