Gush paint water storage tank with screw connnection and
in new technology
Keywords to search Huili water tank:
SMC/FRP/GRP water tank
Stainless steel water tank
Enameled water tank
Hot dip galvanised water tank
Underground water tank
All of the water tank can add thermal insulation layer and reinforcement outside
Product Description
Material:The panel is carbon steel sheet made by ramming craft;
The size of the panel is: 1000*1000mm,1000*500mm, 500*500mm.
The thickness of the panel mainly includes: 5mm, 4.5mm, 3mm, 2.5mm, 2mm, 1.5mm. It is different according to the tank dimension.
Flanges: The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.

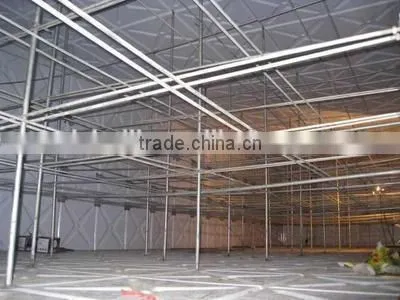

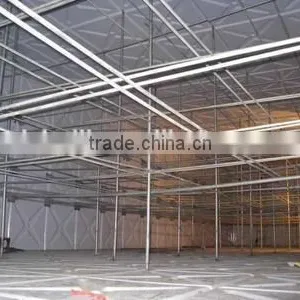

Reinforcement Method: All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped galvanized material.
Advantage:
Enamel steel tank scope is very broad, not only for new project, but also to old buildings water tank upgrade provides a convenient conditions.Water tank can store cold water, also can store
hot water, acid and alkali resistance, permeability, leakage, no deformation,
Application
1.Storage and regulation of living water supply & construction water supply,2.Temporary
water storage tanks for expansion of the heating system, condensate tank and
construction, geological survey, industry, National defense project etc.
3.Various industries, civil water supply, HVAC, firefighting, food, beverage, vintage, water
treatment, medicine, petroleum, chemical and so on.
4.Taking flexible, reasonable plate design, suitable for all sizes combined water tank.
5.Suitable for living water with PH value:6.5-8.5, using life:≥20 years
Specification parameter
Accessories
Matters need attention
1. The water inlet pipe and outlet pipe and overflow pipe diameter, location is determined by
the design.
2. The channel around the water tank shall be not less than 600 mm, and the box at the bottom of the top is no less than 500 mm.
3.Water injection test, close the outlet pipe and drain pipe, open the inlet pipe, full, after 24
hours don't ooze water is qualified.
Our services
1.Professional water tank manufacturer.Customized design is available, OEM and ODM
are welcomed.
2.High quality,reasonable&competitive price.High speed forwarder services.
3.Prompt answer on Trademanager and Inquiry,will not delay 24 hours.
Related products
SMC/GRP/FRP water tank
Stainless steel water tank
Hot dip galvanized water tank
underground water tank
Certification
Packing&Shipping
1.We usually use plywood or container.Of couse if you have special request,we would consider seriously.
2.We will delivery products15days once payment arrived.
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our technician will figure out
what the problem may be, according to client s feedback. Parts will be replaced for free if the problems are
caused by quality fault.
2.How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard water tank and customized water tank according to client s specific requirements,
it would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
