Huili enameled steel drink storage water tank with new technology
steel drink water tank
Dezhou Huili tank Co. Ltd., is a professional production enterprise specializing in the production and design of the water tank.
Company's products include: fiber glass reinforced plastic water tank, stainless steel water
tank, enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank
and underground water tank.
Company tenets:
Quality first, customer first and best credibility!
The same price with best quality!
The same quality with highest reputation!

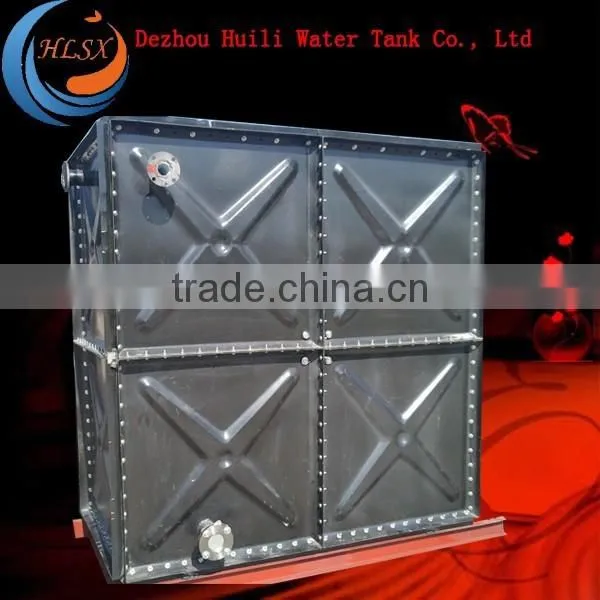

Dezhou Huili enamled steel drink storage water tank with new technology
Enameled steel water tank, the use of advanced technology, choose high quality materials, through high heat sintering enamel, make water tank panel forming dense glaze layer, and steel interface between iron penetration.
Material:The panel is carbon steel sheet made by ramming craft;
The size of the panel is: 1000*1000mm,1000*500mm, 500*500mm.
The thickness of the panel mainly includes: 5mm, 4.5mm, 3mm, 2.5mm, 2mm, 1.5mm. It is different according to the tank dimension.
Flanges: The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
Reinforcement Method: All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped galvanized material.
Advantages
1. It is not easy to deformation .
2. Strong vibration resistance
3. Resistance to impact large
4. Gush paint water tank is cleaning and hygiene, White and beautiful. Ensure no pollution to water quality.
5. Composite plate assembly at the scene.Convenient, quick and flexible and adaptable
6. Acid and alkali resistance, corrosion resistance
7. No leaking , sealed performance is good.
8. Storage of hot water is better than other water tank .
9. Gush paint water tank level off is smooth, easy to clean.
1 Bolt. nut & washers
Option: hot-dipped galvanized material/stainless steel SS304.
2 Sealing material
Sealing material have Rubber strip EPDM, glass cement.
3 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
4 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material/stainless steel SS304.
Matters need attention
1. The water inlet pipe and outlet pipe and overflow pipe diameter, location is determined by
the design.
2. The channel around the water tank shall be not less than 600 mm, and the box at the bottom of the top is no less than 500 mm.
3.Water injection test, close the outlet pipe and drain pipe, open the inlet pipe, full, after 24 hours don't ooze water is qualified.

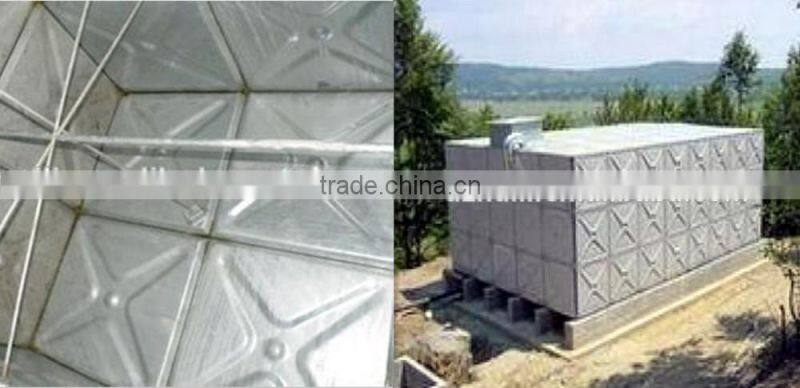

Successful Cases
Tank insulation
Insulation material: polyurethane
Thickness: 30mm, 50mm, 80mm, 100mm
Outer coating material: color steel, galvanized steel, SUS201, SUS304
Certification
1,We usually use plywood or container.Of couse if you have special request,we would consider seriously.
2,We will delivery products 20 days once payment arrived.
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our technician will figure out
what the problem may be, according to client s feedback. Parts will be replaced for free if the problems are
caused by quality fault.
2.How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard water tank and customized water tank according to client s specific requirements,
it would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
