Dezhou Huili diesel fuel tank with high quality
fuel tank
Product Description

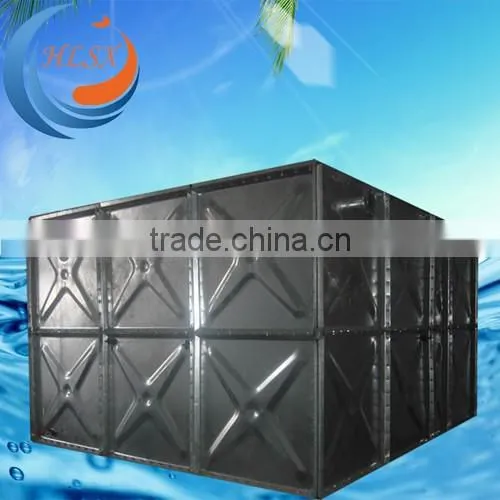

Modular enameled steel water tank made in Dezhou Huili water tank Co., Ltd has adopted
advanced technology, selects the high quality materials, guarantees the water clean and corrosion resistant, easy cleaning, than ordinary tank long service life, convenient, flexible assembly at the scene, large deformation and strong vibration resistance, resistant to impact.The product through the long time use effect is good, the company has a large number of production,
due to the generalization and standardization, serialization, products have a reliable guarantee of product quality.
Material:The panel is carbon steel sheet made by ramming craft;
The size of the panel is: 1000*1000mm,1000*500mm, 500*500mm.
The thickness of the panel mainly includes: 5mm, 4.5mm, 3mm, 2.5mm, 2mm, 1.5mm. It is different according to the tank dimension.
Flanges: The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
Reinforcement Method: All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped galvanized material.
Advantage:
Enamel steel tank scope is very broad, not only for new project, but also to old buildings water tank upgrade provides a convenient conditions.Water tank can store cold water, also can store
hot water, acid and alkali resistance, permeability, leakage, no deformation, no corrosion.
Application
•Storage and regulation of living water supply & construction water supply.
•Temporary water storage tanks for expansion of the heating system, condensate tank and
construction, geological survey, industry, National defense project etc.
•Various industries, civil water supply, HVAC, firefighting, food, beverage, vintage, water
treatment, medicine, petroleum, chemical and so on.
•Taking flexible, reasonable plate design, suitable for all sizes combined water tank.
Suitable for living water with PH value:6.5-8.5, using life:≥20 years
Selection and using
1.Supply your water tank sizes ,the position of connective pipes and pipe diameter.
2.The water tank can be supplied with the whole sets.
3.Use water storage temperature for 4-65°c.
4.Without other weldments inside and outside the tank,avoiding destroying the enamel surface
5. The tank should be cleaned regularly ,When testing the water to prevent debris into the box
6.Users with the tank to take over the position of the seams on the board, the company
shall be adjusted, pipe diameter is constant.
Tank insulation
Insulation material: polyurethane
Thickness: 30mm, 50mm, 80mm, 100mm
Outer coating material: color steel, galvanized steel, SUS201, SUS304
Installation and test
1.The water inlet pipe and outlet pipe and overflow pipe diameter, location
2.The channel around the water tank shall be not less than 600 mm, and the box at the bottom and the top is no less than 500 mm.
3.Water injection test, close the outlet pipe and drain pipe, open the inlet pipe, full, after 24
hours don't ooze water is qualified.
Accessories
1 Bolt. nut & washers
Option: hot-dipped galvanized material/stainless steel SS304.
2 Sealing material
Sealing material have Rubber strip which is specialized for diesel, silicon glass cement.
3 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
4 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material/stainless steel SS304.
Certification
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard water tank and customized water tank according to client s specific requirements,
it would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
Packing and delivery
Company show
Dezhou Huili tank Co. Ltd., is a professional production enterprise specializing in the
production and design of the water tank.
Company tenets: quality first, customer first and best credibility! The same price with best
quality, the same quality with highest reputation!
The company has a professional after-sale service institution, each service branch are
provided with a fixed installation and after sale service personnel to ensure the user to get a
response from us in the first time.
