2015 latest product!Square Liquid BDF underground water tank in new technology
What‘s the BDF water tank?
Fabricated BDF water tank is assembled together by BDF single plate,seal mateials,metal compents and piping system.
Product Name |
BDF underground water tank |
Process technique |
Stamping forming process |
Raw material |
SUS304 inside hot dip galvanizing outside |
Accessories |
SUS304;hot dip galvanizing steel |

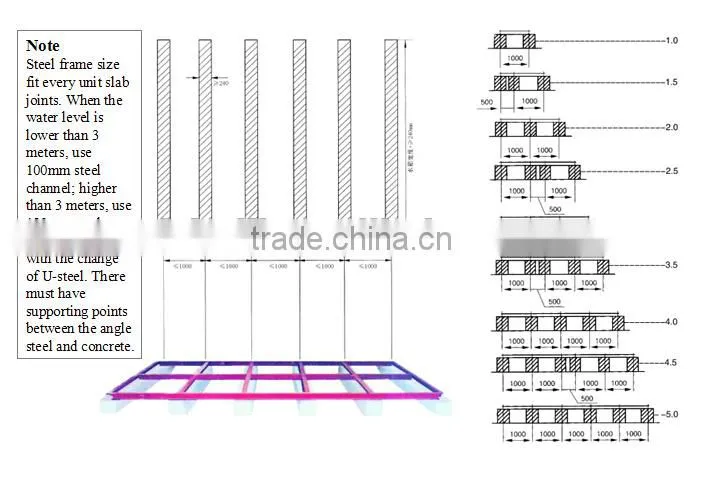

Foundation |
Concrete base |
Bottom base |
Channel steel |

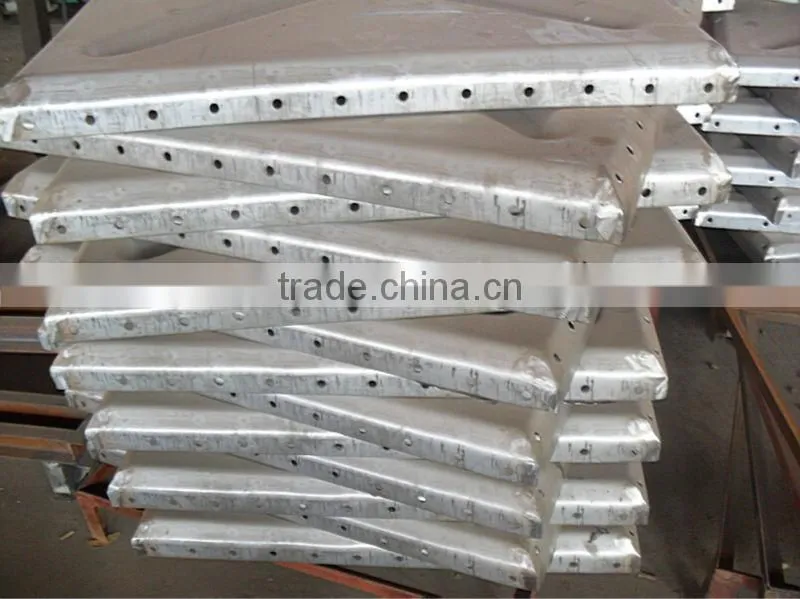

Panel size |
1*1m,1*0.5m,0.5*0.5m |
Panel thickness |
2.8mm,3.3mm |
Working time |
More than 20 years |
Volume |
0.125~5000CBM |
Application
1. Construction & fire-fighting water supply
2. Water storage pool
3.Water supply for living and production of industry, mining and enterprise
4. Water circulation system, chilling water and hot water supply system
Characteristics
1.Tank sealing using specially designed styling products sealing tape
and the sealing tape is nontoxic, water resistant and oxidation resistant sealing properties as well as good.
Service life of up to 50 years.
2. Health conditions are good. In contact with water, molded parts made of high quality stainless steel plates.
3. High structural strength. Reinforced molded parts made of galvanized steel sheet forming.
4.Serviceable, strong corrosion resistance, long servicelife. Modulemade by module compound,
and using the screws installation.
Avoid the disadvantages of corrosion of welded stainless steel chrome badly under high temperature.
5. Water tank mould easily disassemble. After demolition ,mould still can be arbitrary combinations.
6.environmental protection, energysaving, without secondary pollution.
7.Appearance, color diversity. Color canbe selected according to user requirements for any tank appearance.
Assembling and check
1.There needs to Keep a maintenance channel which width no less than 700mm betwteen
the vertical wall and water tank, and between horizontal wall and water tank body
no less than 500mm.
2.When construction, finish concrete foundation first, make sure all slab joints and the
surrounding of the water tank is located on the support.
3.When finished assembled, turn off the The outlet pipe and adrain pipe first, then turn on
the inlet pipe, as water as examine to fill with water, no leakage in 24 hours is qualified.
Accessories
Tank insulation
Insulation material: polyurethane
Thickness: 30mm, 50mm, 80mm, 100mm
Outer coating material: color steel, galvanized steel, SUS201, SUS304
Our services
1.Professional water tank manufacturer.Customized design is available, OEM and ODM are welcomed.
2.High quality,reasonable&competitive price.High speed forwarder services.
3.Prompt answer on Trademanager and Inquiry,will not delay 24 hours.
Certification
Packing & Delivery
