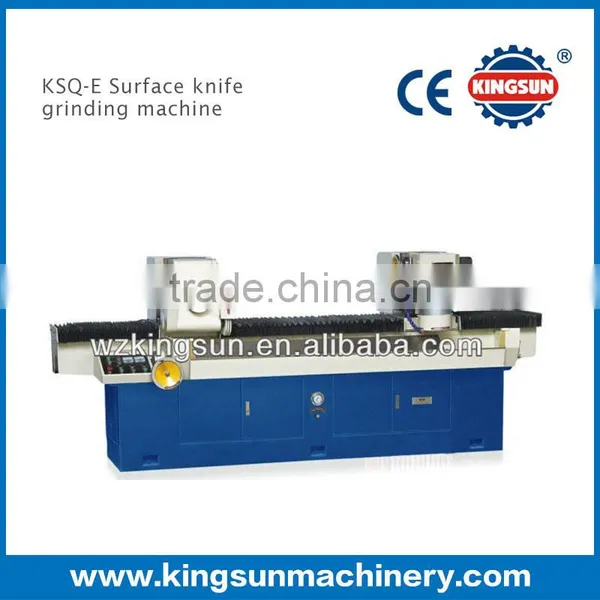

KSQ-E Surface knife grinding machine
KSQ-E high precision grinding machine is monobloc casting, it merges the knife grinding and blade grinding double grinding hears into an organ. It adopts imported hydraulic automatic feeder, stepless speed regulation.It can thoroughly get rid of the corrugated degree of the cutting section.
Options: servo motor, liquid crystal display
Model |
KSQ-1650E |
KSQ-2200E |
KSQ-1650E-I |
KSQ-2200E-I |
Max grinding length |
1700mm |
2200mm |
1700mm |
2200mm |
Size of grinding wheel |
Ø200x Ø 100Øx100 |
Ø200x Ø 100Øx100 |
Ø200x Ø 100Øx100 |
Ø200x Ø 100Øx100 |
Polishing disk size |
Ø150mm |
|||
Width of ground knife |
180mm |
180mm |
180mm |
180mm |
Rotation angel of workable |
0~±90° |
|||
Moving speed of grinding head |
2-15M/min |
|||
Automatic feeding precisely grinding |
0.0075-0.05mm |
0.001-1.0mm |
||
Dimension |
3400x1100x1550mm |
4100x1100x1550mm |
3400x1100x1550mm |
4100x1100x1550mm |
weight |
2.5T |
3.0T |
2.5T |
3.0T |
