KHX620II Invoice Offset Printing Machine
US$ 9,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, offset
Brand Name:
Kingsun
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo /Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KJB Series Automatic Cylinder Spot UV Screen Printing MachineUS$ 50,000 - 75,000MOQ: 1 Set -
China Professional Supplier KSF42 Resin Plate CTP MachineUS$ 49,000 - 55,000MOQ: 1 Set
-
KSF42 CTP Machine for Flexo Plate/ Resin PlateUS$ 49,000 - 55,000MOQ: 1 Set
-
KSF60CTP Machine for Flexo Plate/ Resin PlateUS$ 49,000 - 55,000MOQ: 1 Set
-
Good Quality Flexo Type KSF60 CTP MachineUS$ 49,000 - 55,000MOQ: 1 Set
Condition
New
Plate Type
Other, offset
Brand Name
Kingsun
Model Number
KHX620II
Usage
Bill Printer
Automatic Grade
Automatic
Voltage
220V/380V
Gross Power
2kw
Dimensions(L*W*H)
200x110x145cm
Weight
900kg
After-sales Service Provided
No overseas service provided

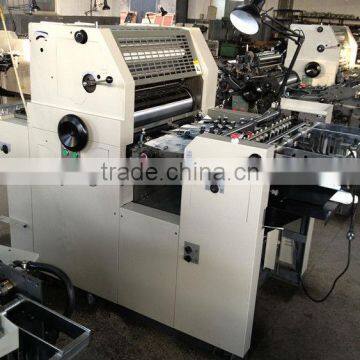

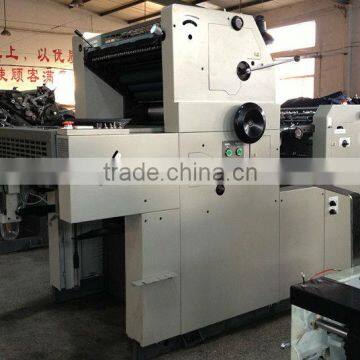

KHX620II Invoice Offset Printing Machine
This machine can print A2 paper, also can finish two A3 or four A4 paper printing at one time.
This type adopts fully new ink feeding system, the ink feeding system consists of 14 ink rollers of which 3 forme inking rollers this could ensure high quality for full plate print.Itadopts electronic preset counters,pre-printed volume,double –controller which can effectively control pairs of sheets or more than one state.
- Easy operation: Dampening feeding, ink feeding and pressing are all controlled by a handle. Photoelectric sensors used for controlling of the offset press of impression cylinder. The performance is reliable.
- Precise Positioning: Positioning through front gauge and wheel type gauge. Good running for paper feeding side guide device and plate cylinder universal fine tuning.
- Separation of water and ink: Water feeding system and ink feeding system are seperated. water amount and ink amount can be freely adjusted to meet requirements of different printing matters. it’s more frequently used for color print.
- Preset counting: Computer controlled counters are adopted. paper feeding will automatically stops as soon as the preset printing amount is finished.
- Double paper test: Double paper and multi-paper can be effectively controlled, and double paper and multi-paper can be automatically removed in operation mode.
- Double revolving functions: Paper is sheet feed, which compensates small offset printing machine’s insufficient ink feeding capacity and widens applications of the printing.
- Power spraying function: This function could avoid dirt on the backside of the printings.
- Automatic ink feeding: This function enables average ink colors.
Main Specifications:
Model |
KHX620II |
Max. printing size(mm) |
605*440 |
Max. paper/bag size(mm) |
620*450 |
Min. paper/bag size(mm) |
125*260 |
Plate size (0.2-0.28mm) |
620* 480*0.15 |
Blanket size(mm) |
620*505*1.9 |
Paper weight |
40-250g |
Ink rollers(3 form) |
14 |
Water rollers(1 form) |
4 |
NP device(2 form) |
6 |
Printing Speed(for paper) |
2000-8700iph |
Printing Speed(for bag) |
2000-3000iph |
Power Supply |
220V,50/60HZ |
Power Required |
2kw |
Dimension(cm) |
200*110*145 |
Weight(kg) |
900 |
