Main technical specifications:
| KSF42 Resin Plate CTP | ||
| Product Model | F42 | |
| Drum Size | External Drum φ143/450L | |
| Image Size | Max.420DmmX300Wmm | |
| Dimensions | 735mmX900mmX1085mm | |
| Weigh | 300kg | |
| Outline Of Machine Structure |
Remove the Particulates by suction hole Variable plate thickness,auto focus adjustment Front&Rear Manual loading |
|
| Type Of Laser | High power fiber laser source | |
| Applied Plate | Digital flexo resin plate ;Thermal CTP plate | |
| Plate Thickness | 0.15mm-2.5mm | |
| Resolution | 2540dpi,175lpi | |
| Output Speed | ≥10P/h(400DmmX300Wmm) | |
| Date Format | 1-Bit TIFF | |
| Power Requirements | Single phase AC220V 30A 50Hz/60Hz | |
| Interface | Ethernet 100/1000BASE TX | |
| Environment | Relative humidity,non condensing | |
The body mainly adopts marbles to support, which effectively decreases the influence of the environment to the precision and promotes the stability of the machine. The whole design is simple, which possesses the features of easy operation, low failure rate, easy maintenance, low after-service maintenance cost and decreasees the demand and rely for the operators compared to other products.

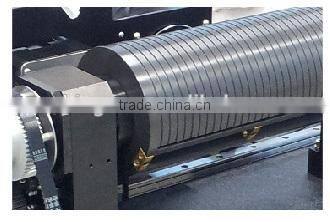

Mature drum manufacturing technique makes the drums with high precision, which plus the unique vacuum runner make guarantee of the good absorbability and high quality of the output of the flexographic plate.
simple control panel decrease the failure rate and hard work of the operators while do it with easy operation.
Warranty:
One year after machine arrival at the destination port.
