RB420D Semi automatic rigid box making machine for gift box
Features:
1. The feeder in this machine adopts back-push feeding system, which is controlled pneumatically,
and its structure is simple and reasonable.
2. The width between stacker and feeding table is adjusted concentrically in the center. The operation is
very easy without tolerance.
3. New designed copper scraper cooperates with the roller more compactly, effectively avoiding paper
winding. And the copper scraper is more durable.
4. Adopt imported ultrasonic double paper tester, featuring in simple operation, which can keep two
pieces paper from entering into the machine at the same time.
5. Automatic circulation, mixing and gluing system for hot-melting glue.
(Optional device: glue viscosity meter)
6.The vacuum suction fan under the conveyer belt can keep the paper from deviating.

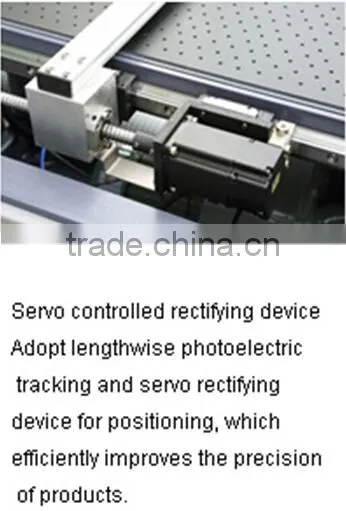

7. The paper and cardboard inner box employs photoelectric sensor and servo motor to spot correctly.
8.The wrapper can continually wrap, fold ears and paper sides and form in one process.
9. The whole machine employs PLC, photoelectric tracking system and HMI to automatically forming
boxes in one process.
10. It can automatically diagnose the troubles and alarm accordingly.

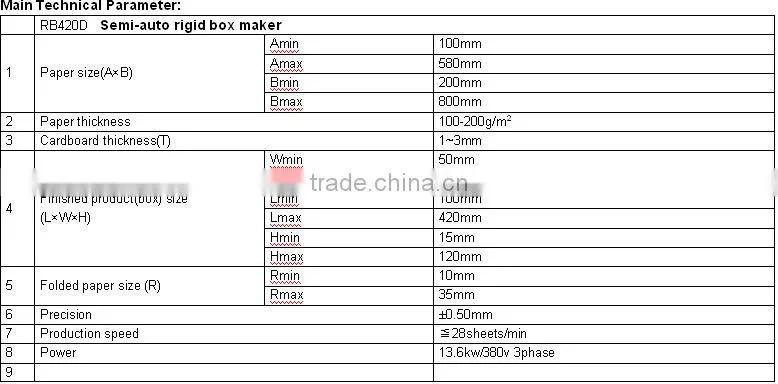

The corresponding relationship between the parameters:
W+2H-4T≤C(Max) L+2H-4T≤D(Max)
A(Min)≤W+2H+2T+2R≤A(Max) B(Min)≤L+2H+2T+2R≤B(Max)
