WQM-320G Series High Quality Automatic Label Sticker Die Cutting Machine

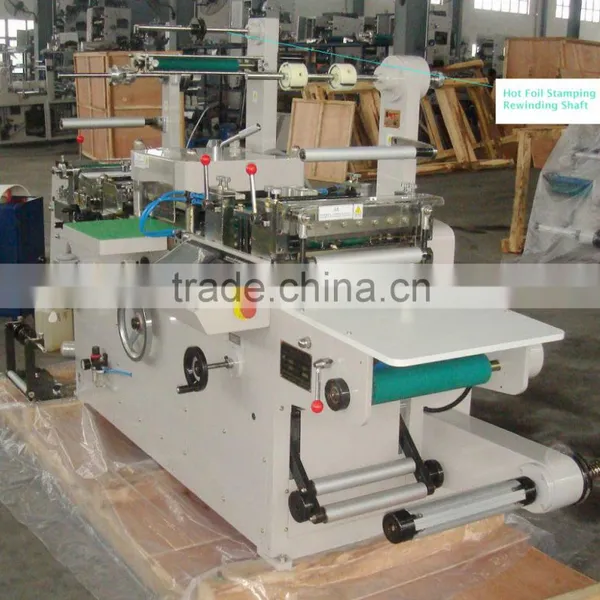

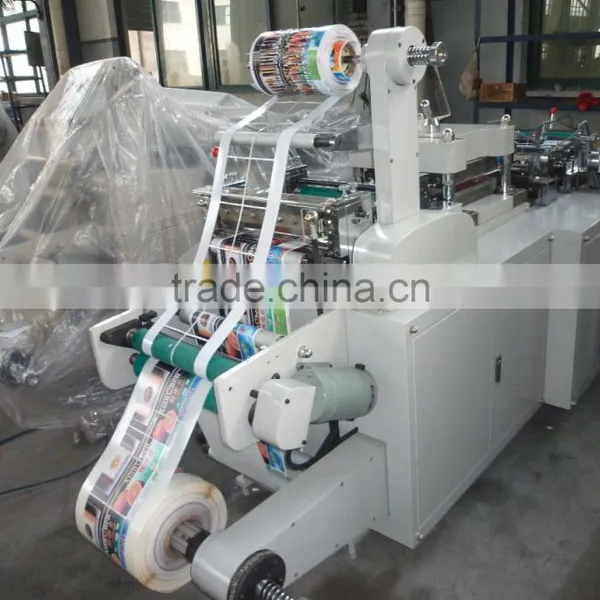

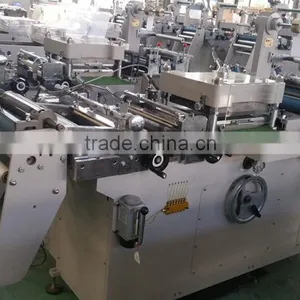

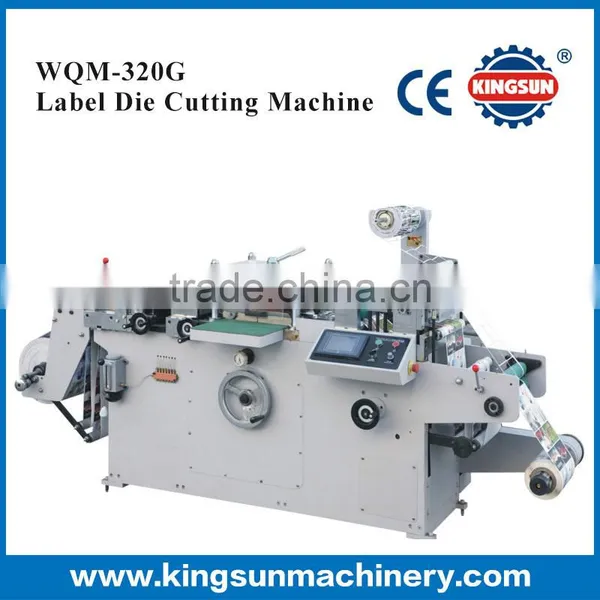

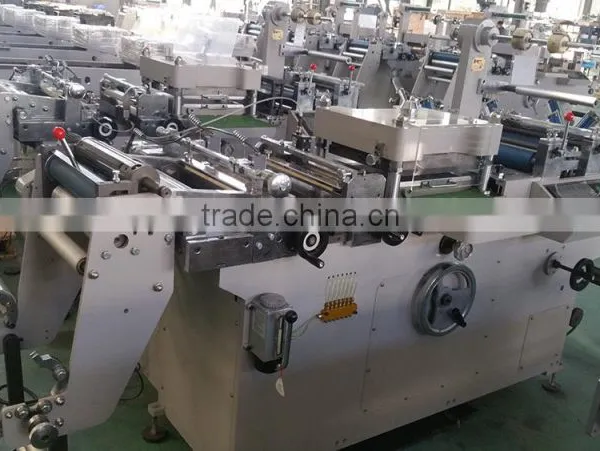

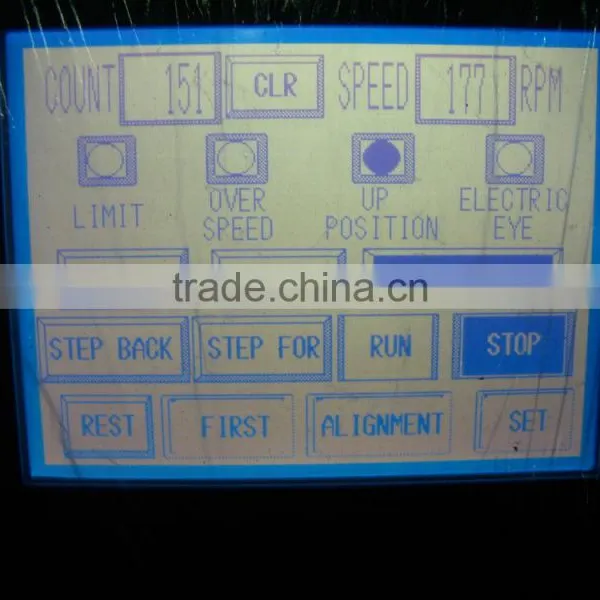

This type of label die cutting machine , also name as label die cutter machine,is specially designed for die cutting roll form paper label,film label, and laser hologram label. The machine adopts micro-computer control and photoelectric cell tracking. The machine can automatically finish die cutting, rewinding of the waste edge side paper, sheeting or rewinding. It is an ideal machine for label making converting industry.
Specifications:
1) Speed: 20 - 170 punching/min
2) Max. unwinding diameter: 500mm
3) Max. width of materials: 320mm/450mm
3) Max. die cutting width: 300mm/400mm
4) Max. die cutting length: 290mm/400mm
5) Precision: 0.15mm
6) Power: 3. 5kW/4.5kw
7) Electricity: 220V,50Hz
8) Machine weight: 1,700kg
9) Overall dimensions: 2. 6 x 0. 95 x 1. 4m
Optional function: laminating, hot foil stamping, laser hologram label sensor,hole punching etc.
