THZ Multi-function Coating Laminating Machine for Adhesive Paper, Foil and Tape
- Ningbo
- T/T D/P D/A Credit Card
You May Like
-
TBZ-600 Coating Machine for Silicone Paper, Stock Label Paper.
-
TBZ-600 Model Silicone Paper Coating Machine
-
KYJZ-850 Computer Control High Speed Gravure or Rotogravure Printing Press Machines
-
KYJG Series Computer Control High Speed Plastic Film 8 Color Rotogravure Printing Machine Price
-
KMASY-A Series Computer Control High Speed Rotogravure Printing Machine Price
-
KMASY-B800 Series Plastic Bag High Speed Computer Control Rotogravure Printing Equipment
Product Details
| Condition | New | Application | Beverage, Commodity, Food, Medical, Textiles | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380v, 50hz or special made | Power | 200KW | |
| Packaging Type | Case | Packaging Material | Paper, Plastic | |
| Place of Origin | Zhejiang, China | Brand Name | KINGSUN | |
| Model Number | THZ1300 | Dimension(L*W*H) | 25 x 2.5 X 4.5m | |
| Weight | 25000KGS | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

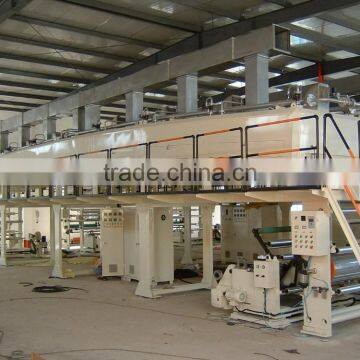

THZ1300 Multi-function coating laminating machine for adhesive paper, foil, release paper, reflective materials etc.
This series multi-functional coating machine fit for coating various kind of base materials,such as adhesive paper label, PVDC or other special materials etc, we are expert in manufacturing coating machines ince 1995. All special materials or sizes are welcome, also we provide all solutions for coating materials and technology.
If you need high quality and reliable coating machine, we are your best choice in China!
TECHNICAL DATA AND BASIC REQUIREMENT
1- Specification and function:
1) Basic material: BOPP, paper, films, cloth, or special materials.
2) Material width: 1320mm
3) Total machine power: about 80kw-200KW
4) EPC edge side precision: + 2.0mm
5) Coating drying speed: 20-100m/min
6) Working speed: 120-200m/min
7) Dying and heating method: steam heating, oil, gas, electric etc.
8) Temperature control: 50-170℃
9) The necessary equipments with the machine(the user need to prepare): air compressor ,(0.8Mpa; 0.9m3/min), exhaust pipe
10) Equipment for the machine: water and compress air connectors.
11) Overall dimension of the machine: 35100×3500×6000mm
2- Main configuration:
1) 2 sets of unwinder (double rotate turret).
2) 1 unit of coating head(comma doctor knife)
3) 1 unit of drying tunnel (28 meter)
4) 1 unit of re-humidity device
5) 1 unit of laminating unit
6) 1 unit of rewinding (double rotate turret)
7) 1 unit of electrical control system
All the specification will be various for different base materials and coating materials.
We provide excellent after sale service, all the machine with one year main parts guarantee, and provide all life technical service. For spare parts, we will send it by international courier such as DHL, FEDEX, TNT etc.
For coating line, we will send technician to go to buyer factory install and train the operators.

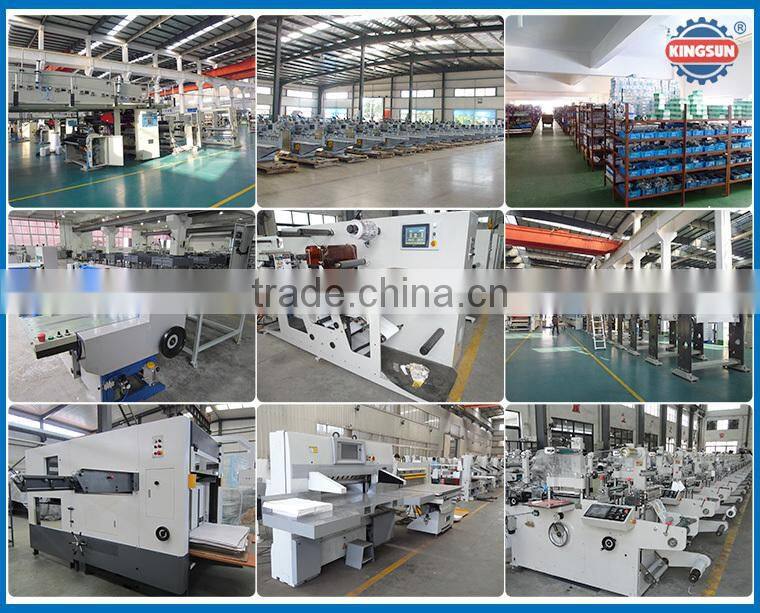

Wenzhou Kingsun Machinery Industrial Co.,ltd is China leading professional supplier and manufacturer of printing and packaging machines & materials. We provide a wide range of high quality equipment and service for printing and packaging industries, including all models multi-functional coating machine and laminating machine,post-press equipment such as flatbed automatic die cutter, hot foil stamping machine, folder gluer, paper guillotine, thermal laminator, flute laminator, slitter rewinder, paper sheeter, automatic case maker and label making machine such as flexo printing press, label die cutting machine, and flexible packaging equipment such as rotogravure printing machine, dry laminator, plastic bag making equipment, packing machine and other paper converting machinery etc. Our factories have 10-20 years of manufacturing experience, Kingsun company focus on R&D, quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our products have been well accepted by customers from more than 65 countries.
Kingsun Company also boasts its 12 more years of experience, we deliver goods worldwide, our teams are all university graduated and constantly with professional training with energetic and positive attitude
Kingsun Company has 15 more manufacturing factory bases, each factory focus on only one or a few kind of specific printing and packaging machines production, as a result, we have the ability to meet different needs from different buyers, this way can take advantage of our machinery group and each of factory can play its own marketing or manufacturing strengths.
Our team has accumulated huge experience for this industries, we also have established a specialized after-sales service team and R&D team, so that we can create more value for our buyers.
Looking forward to work with you to create a more successful business together!
