Linear vibration screen corn winnowing machine
- 200 Set / Sets per Month
- Qingdao,Ningbo,Shanghai or as per needs
- T/T L/C D/P D/A Credit Card PayPal
- 5 days
Product Details
Brand Name: | hongyuan | Place of Origin: | China | Model Number: | HYL-8 |
Type: | Grain Processing Equipment | Use: | Separate Grain | Certification: | ISO |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

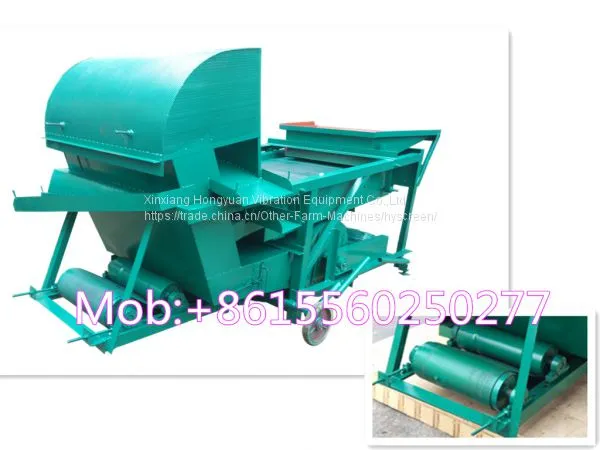

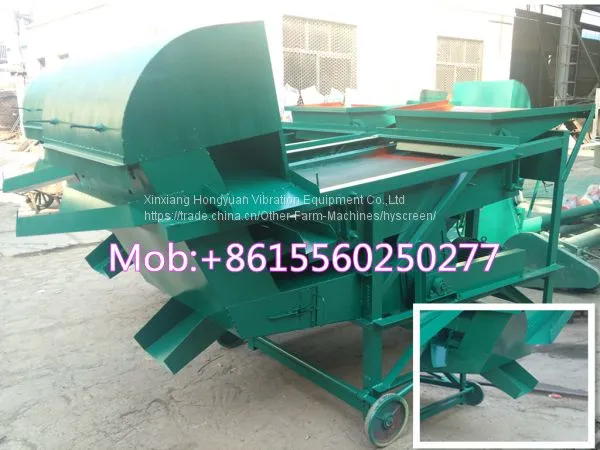

Linear vibration screen corn winnowing machine
Product Description
Corn screening machine is suitable for small and medium-sized starveling, on-site to receive food screening directly throw grain into the warehouse and grain piles. This machine belongs to the multi-purpose machinery such as corn, soybeans, wheat, replace the screen when you need, 8 to 14 tons per hour, select degree 99%.
Corn screening machine can change according to the grain particle size screen mesh, suitable for corn, soybeans, wheat, rice, sunflower seeds and other grains. This machine is compared with other general grain screening machine, cleaning dust produced when grain, greatly changed the cleaning sieve environment.
Model No. | Air Blower Motor | Sieving Machine Motor | Capacity | Machine Size(mm) | Weight |
HYL-8 | 4kw | 3kw | 8-14T/H | 2800*1350*1500 | 600kg |
Working Principle
Separation principle of vibrating screen is set according to the geometry characteristics of seed, seed varieties and species is different, the size is also different, choose changing sieve in different piece, can meet the requirements of separation.
Working Process
The cleaning sieve for three layers of the bottom of the screen, first through the first screening of the big screen in front of clutter and fine soil and small cleaning, have main blower prior to discharge of the air separation cleaning, clean up after another in the front of small grain machine to mass ejection at a distance, eventually achieve the grain of the mould and the grain containing small impurities.
Product Details

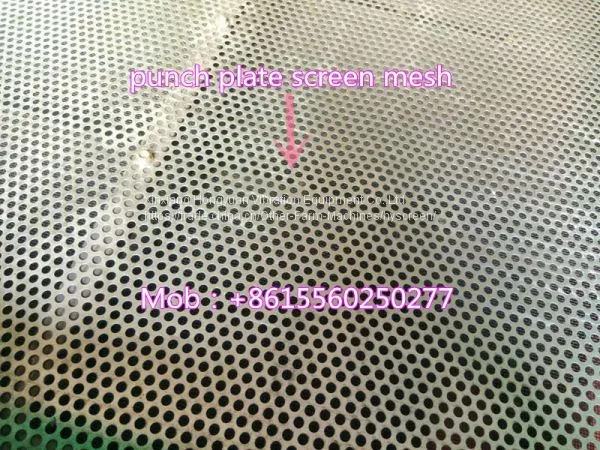

Name : Punch Plate Screen Mesh
Aperture Size : 5-12mm as per grain size
Material : Q235A Carbon Steel
Name : Air Blower
Motor Power : 4KW
Function : Blowing/Sorting/Separating Light Impurities out

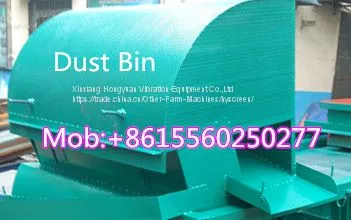

Name : Dust Bin
Feature : Collecting the dust impurities and discharged from the outlet which reduce the pollution for the environment.
Name : Winnowing Device
Features : Can working as a Winnower which throwing the grain into warehouse after sieving ,it make the grain further cleaner.
Product Categories
Cleaning & Bagging
This machine's main task is to remove the impurity in the food, the final food outlet facilitate food bag, binning, storage.

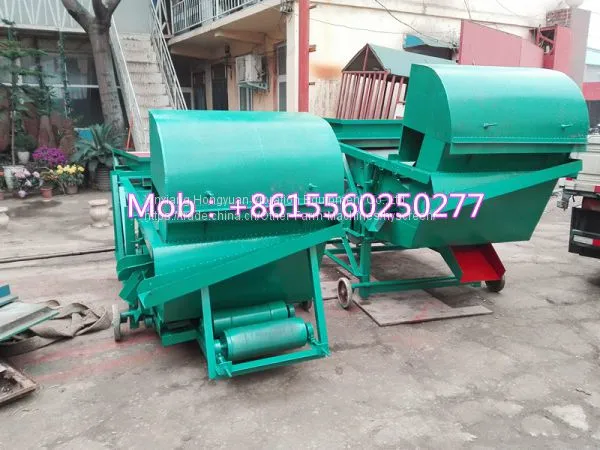

Cleaning & Throwing
This machine's main task is to remove the impurity in the grain, the back is a throwing equipment, the cleaned grain after stroke can be according to the differences in the quality of the grain is more effective to eliminate mildew grain, separated particle size.
Packing & Delivery
Packing in standard fumigation ply wooden box.
Packing Size:3180mm(L)*1650mm(W)*1730mm(H)
Related Products:

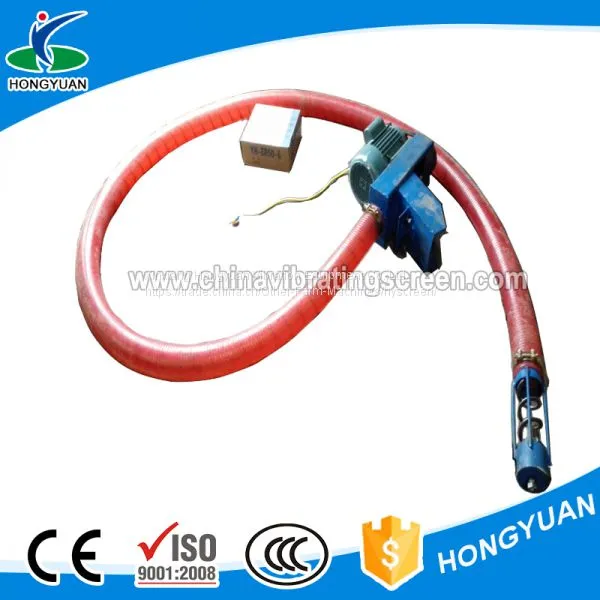

Name : Grain Screw Conveyor Machine
Product Description: This machine is one kind of vehicle mounted bulk grain inhaling conveyor and used for truck loading purpose.

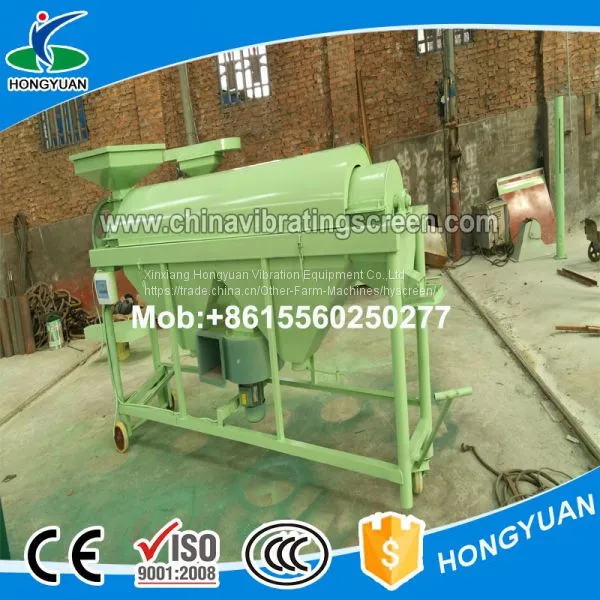

Name : Grain Polishing Machine
Product Description : This series of grain polishing machine is worked based on the spiral axis of rotation. In the process of conveying the grain seeds can be scrub by the fixed axis cotton cloth it is ideal for beans to achieve good effect of polishing.
