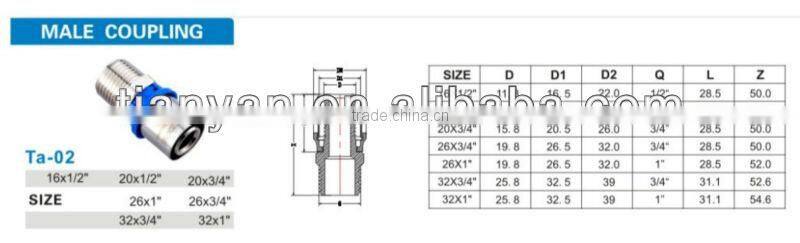

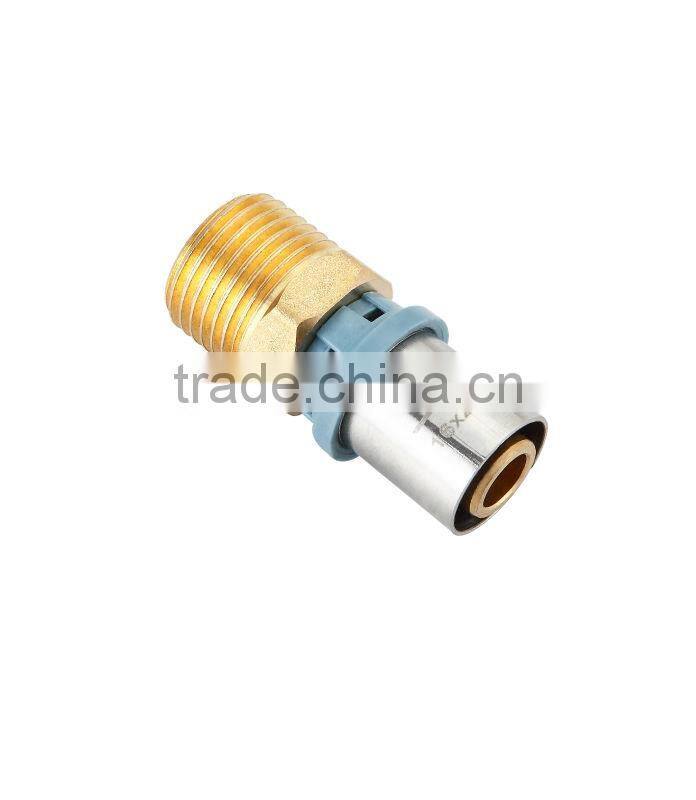

Help CenterDZR BRASS MALE COUPLING
Related Products
Specifications
Material: Brass,Stainless steelTechnics: Casting
Material:57-3,CW617N ,CW614N
BRASS COMPRESSION FITTINGS FOR PEX PIPE
Features:
1. Brass materials: 57-3,CW617N ,CW614N
2,Stainless steel : AISI304
Thickness stainless steel rings
-Diameter 16……………0,8mm (±0,1)
-Diameter 18……………0,8mm (±0,1)
-Diameter 20……………0,9mm (±0,1)
-Diameter 25……………0,9mm (±0,1)
-Diameter 32……………0,9mm (±0,1)
-Diameter 40……………1,0mm (±0,1)
-Diameter 50……………1,0mm (±0,1)
-Diameter 63……………1,2mm (±0,1)
3,O-ring : Quality EPDM SHORE A70 +/-5 BLACK as norm EN 681.1 Compression Set 22h 150ºC Test Method ASTM D 395 B
Thickness of the rubber joints:
-Diameter 16……………1,55mm (+0,05mm,-0,05mm)
-Diameter 18……………1,55mm (+0,05mm,-0,05mm)
-Diameter 20……………1,55mm (+0,05mm,-0,05mm)
-Diameter 25……………2,05mm (+0,05mm,-0,05mm)
-Diameter 32……………2,05mm (+0,05mm,-0,05mm)
-Diameter 40……………2,0mm (+0,05mm,-0,05mm)
-Diameter 50……………2,0mm (+0,05mm,-0,05mm)
-Diameter 63……………2,2mm (+0,05mm,-0,05mm)
4. Plastic ring :HDPE, red ,green, blue,grey ,clear.
5,Working Temperature: -20°c~110°c
6. Working Pressure: 1.6MPa
7. Size: DN16*1/2" to DN32*1" different size
8. Suitable medium: water, gas,oil
9. Surface treatment: Nickel plated or Brass
10. OEM service is acceptable
TEL:+86-576 8110 3383
Mob:+86-188 5866 3097
Skype:kirsten_xu1
ADD: Chengjiang Industrial Park, Huangyan District, Taizhou, Zhejiang,
China (Mainland)
Zip: 318020
